Showing 1–12 of 13 results

10 Inch 350w 24v Brushless E-bike Wheels Scooter Hub Motor + Controller

  • Motor type: 10-inch brushless toothless hub wheel motor+ Controller
  • Rated Power: 350w.
  • Rated Voltage: 24v.
  • Speed: 800 RPM. (400-1000 RPM).
  • Speed: 12-28km/h.
  • Diameter: 254mm with tire.
  • Open File: 95mm.
  • Motor Weight: 4.5 kg.
  • Load bearing capacity: 80-150 KG.
  • Rim Size: 10 inch.
  • Certification: CE, CCC, ROHS.
  • Motor Efficiency :> 83%.
  • Weight: 4.5 kg.
  • Load Weight: 80-150 KG.
  • Application: electric scooter, folding electric car, ebike,e-motorcycle,ebike ,front/rear drive

250W 36V Electric Bike Bicycle Rear wheel Hub motor DIY Conversion Kit – Advanced

  • Operating Voltage: 36v.
  • Rated RPM: 180-290rpm.
  • Unload Amp/ Peak Amp: 1A/12A.
  • Continuous Power Rated & Peak : 250/550w.
  • Torque (nm) Peak: 38nm.
  • Peak Efficiency : 85%.
  • Water & Dust protection Level (IP Rating): IP65.
  • Weight of motor : 2.3kg.
  • Maximum Speed : 25km/hr.
  • Motor shaft size : 110mm

250W 36V Electric Bike Bicycle Rear wheel Hub motor DIY Conversion Kit – Basic

  • Rated Voltage: 36 V
  • No load Current: 1 A
  • Rated Current: 8 A
  • Rated Power: 250W (250 - 350W)
  • Speed: 328 RPM
  • Rated Torque: 6N
  • Compatible Wheel Size: 20 to 28 inch
  • Spoke Holes: 36 holes
  • Wheel diameter: 130mm.

350W 24V Electric Bike Bicycle Rear wheel Hub motor DIY Conversion Kit

12,000.00
  • Rated Voltage: 24V
  • No load Current: 1A
  • Rated Current: 14A
  • Rated Power: 350 W
  • Speed: 328 RPM
  • Rated Torque: 6 N
  • Compatible Wheel Size: 20 to 28 inches
  • Spoke Holes: 36 holes
  • Wheel diameter: 130 mm.

350W 36V Electric Bike Bicycle Front Hub motor DIY Conversion Kit

  • Rated Voltage: 36V
  • No-load Current: 1A
  • Rated Current: 14A
  • Rated Power: 350W
  • Speed: 328 RPM
  • Rated Torque: 6N
  • Compatible Wheel Size: 20 to 28 inch
  • Spoke Holes: 36 holes
  • Wheel diameter: 130mm.

6 Inch 350w 24v Brushless E-bike Wheels Scooter Hub Motor + Controller

  • Voltage: 24v.
  • Motor Type: Balance Car, Scooter, Brushless Hub motor.
  • Power Output: 250w-350w.
  • Shaft Diameter: Axle size 13.5mm & 16mm, length 53mm.
  • Wire length: 200mm approx.
  • Opening size: 110mm.
  • Color: Black.
  • Max speed: 26km/h.
  • Weight: 3kg approx.
  • Application - Self balancing drift car motor, Razor, electric scooter, light EV Car, E-bike, Electric bicycle, E-scooter, E-motor, motorcycle, small electric motor, etc.

8 Inch 350w 24v Brushless E-bike Wheels Scooter Hub Motor + Controller

HUB MOTOR SPECIFICATIONS:
  • Motor type: brushless gearless.
  • Rated Voltage: 24V.
  • Rated Power: 350W.
  • Wheel Size: 8"
  • Rated speed: 28 km/h.
  • Rated efficiency: >=80%.
  • Weight: 3.5kg.
  • Open Size: 108mm.
  • Brake type: Drum.
  • Waterproof Grade: IP65.
 SPECIFICATIONS FOR CONTROLLER:
  • Voltage: 24V.
  • Wattage: 24V 350W.
  • Throttle: 1-4V.
  • Short voltage protect: 31.5±0.5V/42±0.5V.
  • Color: silver.
  • Dimension: 105 x 65 x 32mm
  • Casing material: Aluminium.


BM1418ZXF 750W Motor Kit 48V DC

  • Rated Output Power: 750W
  • Rated Voltage: 48V DC
  • Speed after Reduction: 480 RPM
  • Rated Speed: 2800 RPM
  • Gear Ratio: 1:6
  • Full Load Current: 20A
  • No Load Current: 5A
  • Rated Torque: 15.36 N.m.
  • Application: Small and Medium size E-Tricycle
  • Load Capacity: Upto 350 KG


Combo Kit – MY1016Z3 350W Motor

  • 24 Volt DC Operation
  • Permanent Magnet DC Motor.
  • No Load RPM: 3850.
  • No Load Current: <2.2 Amps.
  • Rated Wattage: 350W (0.50 Horsepower).
  • Rated Load RPM: 400.
  • Torque (NM): 40.
  • Rated Current: 19 Amps.
  • Efficiency: 78%.
  • Reduction Ratio: 9.78:1.
  • Direct Drive (No Free Spooling).
  • Suitable for Forward and Reverse Operations.
  • Base Mount Model.
  • 9 Tooth Sprocket for 1/2" x 1/8" Pitch Chain.
  • .For Chain Size: Pitch 0.5in; Roller Diameter 0.3in; Roller Width 0.16in


DC 48V 500W BM1418ZXF Brushless Motor, Electric Bicycle Kit, DIY E-Tricycle

  • Rated Operating Voltage: 48V DC.
  • Rated Power: 500W.
  • Rated Speed: 2800 RPM.
  • No Load Speed: 3100 RPM.
  • Full Load Current: 13.4A.
  • No Load Current: 4.0A.
  • Rated Torque: 1.7N.m.
  • Efficiency: >75%.
  • Gear Speed: 400 RPM.
  • Gear Torque: 10N.m.
  • Gear Ratio: 6:1.

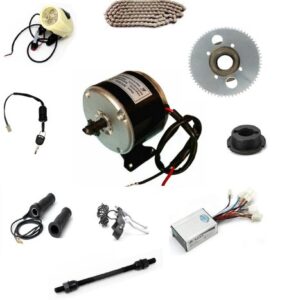

MY1016 250W Motor DIY E Bike Combo Kit

  • Electric Bicycle permanent Magnet DC Motor MY1016.
  • Rated Operating Voltage: 24VDC
  • Rated speed: 2650 RPM
  • Rated Current: 13.7A
  • Current without load: 0.7 – 1.4 A
  • Rated Torque: 8.87 Kgcm
  • Rated Output Power: 250W
  • Transmission :chain sprocket (11 teeth, pitch 1/4"=6,35 mm)
  • Nut shaft diameter :10 mm (milled groove one-sided 1,5 mm)

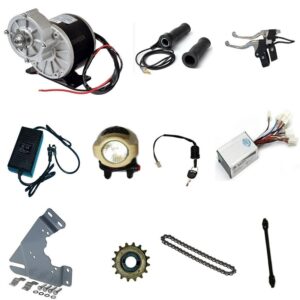

MY1016Z2 250W Motor Combo for Electric Bike

  • MY1016Z 24 Volt DC Operation Permanent Magnet DC Motor
  • No Load RPM: 3850 RPM
  • No Load Current: <2.2 Amps
  • Rated Wattage: 250W (0.33 Horsepower)
  • Rated Load RPM: 400
  • Torque: 22 NM
  • Rated Current: 13.4 Amps
  • Efficiency: 78%
  • Reduction Ratio: 9.78:1
  • Compatible with 9 Tooth Sprocket for 1/2" x 1/8" Pitch Chain
  • Chain Size: Pitch 0.5in
  • Roller Diameter: 0.3in
  • Roller Width: 0.16in
