DC 60V 3000W BM1412 Brushless Motor, Electric Bicycle Kit
DC Gearless 500 Watt Motor for E-bike
- Brushed Motor Permanent Magnet
- Speed: 2500 rpm
- Rated Power: 500W
- Rated Voltage: 24v
- Current Draw (Rated): 27.4A
- Current Draw (No Load): 2.5A
- Rated Torque: 1.9 N.M.
- Rated Speed: 2500 RPM
- Efficiency: Greater than 75%
- Number of teeth: 11, Pitch 6.35 #25 Chain
- Diameter: 4 1/4"
- Length (no shaft): 5 1/4"
- Length (with shaft): 6 1/4"
- Weight: 4.1kg
E-BIKE MOTOR ELECTRIC BRUSHLESS (BLDC) SPEED CONTROLLER 36V 350W
E-Bike MY1020Z 600W 36V Gear Motor For E-bike Bicycle
- Model: MY 1020Z2. 600W
- Operating Power: 600 W
- Operating Voltage: 36 V
- Rated Current: No Load: 2.5 A Full Load: 40 A
- Rated Speed: Base Motor with No load RPM:3200
- Rated Speed(After Reduction): 480 RPM
- Rated Torque: 1.80 N.m.
- Gearbox: Yes
- Sprocket: 10 tooth #40 chain
- Mounting Bracket: 4-5/8" X 2-3/4"
- Length of Cable: 0.5 Meter
- Weight: 5.438Kg
- Efficiency: ≥78%.
- Application: Small and Medium-size E-Tricycle
- Gear Ratio: 6.67:1
ELECTRIC WHEELCHAIR POWERTRAIN PMDC MOTOR – SCD2-B 200W
- Operating Voltage: 24VDC
- Output Power: 200W
- No-load Current: 3.6A
- Motor Speed ±5% : 4400 RPM
- No-load Output Speed: 135RPM
- Gear Ratio: 32 : 1
- Sound Level: 60 dB(A)
- Brake Torque: 33.4 Nm
- Gear Motor Rated Torque: 16.95 Nm
- Output Shaft OD: 17mm (with 6mm keyway and key)
- Dimensions (1) : 325mm
- Dimensions (2) : 82mm
- Motor OD: 79mm
- Weight: 15.5lbs per motor
- Efficiency : 80%
High Quality Brake Lever for Ebike
• 100% Brand new and high-quality product
• Adopting full aluminum material, high performance of durability and stability.
• Suitable for many kinds of cycling bikes with a 22.5 mm handlebar, such as mountain bike, road bike and more.
• The 1.5 m low-level brake cable has no negative pole or positive pole distinction, can be arbitrarily connected to the electric brake switch.
• It plays a big role in protecting the motor and prolongs your motor’s lifespan.
• A good replacement part for your old or damaged brake lever of a bike.
• Long life
• High reliability and stability
Motor Controller 24V for MY1016 250W

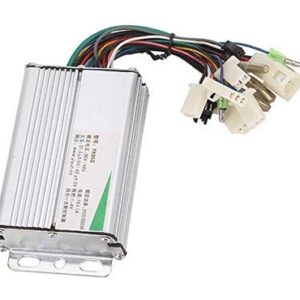

Motor Controller 24V for MY1016 350W
Motor Controller MY1020 for 36V 600W

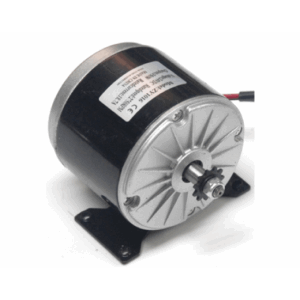

MY1016 250W 24V DC Motor for E-Bike
MY1016 250W Motor DIY E Bike Combo Kit
- Electric Bicycle permanent Magnet DC Motor MY1016.
- Rated Operating Voltage: 24VDC
- Rated speed: 2650 RPM
- Rated Current: 13.7A
- Current without load: 0.7 – 1.4 A
- Rated Torque: 8.87 Kgcm
- Rated Output Power: 250W
- Transmission :chain sprocket (11 teeth, pitch 1/4"=6,35 mm)
- Nut shaft diameter :10 mm (milled groove one-sided 1,5 mm)
MY1016Z2 250W Motor Combo for Electric Bike
- MY1016Z 24 Volt DC Operation Permanent Magnet DC Motor
- No Load RPM: 3850 RPM
- No Load Current: <2.2 Amps
- Rated Wattage: 250W (0.33 Horsepower)
- Rated Load RPM: 400
- Torque: 22 NM
- Rated Current: 13.4 Amps
- Efficiency: 78%
- Reduction Ratio: 9.78:1
- Compatible with 9 Tooth Sprocket for 1/2" x 1/8" Pitch Chain
- Chain Size: Pitch 0.5in
- Roller Diameter: 0.3in
- Roller Width: 0.16in
