Showing all 11 results

BR1010 Bridge Rectifier 10A 1000V

25.00 inc. GST
  • Peak reverse voltage: 1000V
  • Maximum RMS voltage: 700V
  • Maximum DC blocking voltage: 1000V
  • Forward voltage: 1.1V
  • Average forward current: 10A
  • DC reverse current: 10 µA

D35SB60 Flat Bridge Rectifier 35A 600V

30.00 inc. GST
  • Maximum Reverse Voltage, VRM: 600V
  • Average Rectified Forward Current,
-IO: 35A at TC = 100oC with heatsink -IO: 10A at Ta = 25oC without heatsink
  • Peak Surge Forward Current, IFSM: 400A

D3SB60 Flat Bridge Rectifier 3A 600V

20.00 inc. GST
  • Maximum Reverse Voltage, VRM: 600V
  • Average Rectified Forward Current,
-IO: 4A at TC = 108oC with heatsink -IO: 2.3A at Ta = 25oC without heatsink
  • Peak Surge Forward Current, IFSM: 120A
  • Package:3S

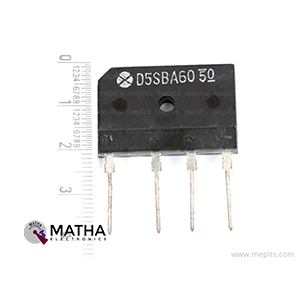

D5SBA60 Flat Bridge Rectifier 5A 600V

20.00 inc. GST
  • Maximum Reverse Voltage, VRM: 600V
  • Average Rectified Forward Current, IO: 6A at TC = 111oC with heatsink
IO: 2.8A at Ta = 25oC without heatsink
  • Peak Surge Forward Current, IFSM = 120A
  • Package:5S

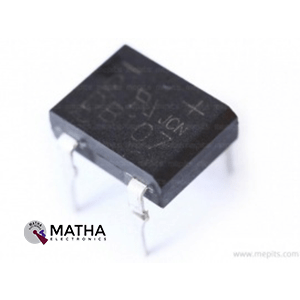

DB107 1A Bridge Rectifier

10.00 inc. GST
  • Maximum Recurrent Peak Reverse Voltage VRRM: 1000V
  • Maximum RMS Bridge Input Voltage VRMS: 700V
  • Maximum DC Blocking Voltage VDC: 1000V
  • Maximum Average Forward Output Current at TA = 40℃,  IO : 1.0 A
  • Glass passivated die construction
  • Low forward voltage drop
  • High current capability
  • High surge current capability
  • Plastic material-UL flammability 94V-0

KBPC2510 Bridge Rectifier 25A 1000V

45.00 inc. GST
  • Maximum Recurrent Peak Reverse Voltage Vrrm : 1000V
  • Maximum RMS Voltage Vrms: 700V
  • Maximum DC blocking Voltage Vdc: 1000V
  • High current capability
  • High Efficiency
  • Low Power Loss
  • Low reverse leakage current
  • Electrically isolated Metal case for Maximum Heat Dissipation
  • High case dielectric strengthPeak Reverse Volatge - 50V to 1000V
  • Case to Terminal Isolation Volatge - 2500V
  • Diffused Junction

KBPC3510 Bridge Rectifier 35A 1000V

70.00 inc. GST
  • Maximum peak recurrent reverse voltage: 1000V
  • Maximum RMS bridge input voltage: 700V
  • Maximum DC blocking voltage: 1000V
  • Maximum forward rectified output current: 35V
  • Peak forward surge current 8.3 ms half sine-wave superimposed on rated load: 400A
  • Maximum forward voltage drop: 1.1V (per elements at 17.5A DC)
  • Maximum DC reverse current at rated DC blocking voltage per elements: 10µA
  • Rating for fusing (I2T, t<8.3ms): 664 A2sec
  • Operating temperature: -55℃ to 150℃
  • High current capability
  • Surge overload rating: 400A peak
  • High Efficiency
  • Low Power Loss
  • Low reverse leakage current
  • Electrically isolated Metal case for Maximum Heat Dissipation
  • High case dielectric strength

KBPC5010 Bridge Rectifier 50A 1000V

80.00 inc. GST
  • Maximum recurrent peak reverse voltage: 1000V
  • Maximum RMS voltage: 700V
  • Maximum DC blocking voltage: 1000V
  • Maximum forward voltage per diode: 1.1V
  • Maximum average forward current: 50A
  • Peak forward surge current (single half sine-wave): 400A
  • Maximum DC reverse current
    • At 25℃: 10µA
    • At 125℃: 500A
  • Operating temperature range: -40℃ to +150℃
  • High current capability
  •  Surge overload ratings : 400 Amperes
  • High Efficiency
  • Low Power Loss
  • Low reverse leakage current
  • Electrically isolated Metal case for Maximum Heat Dissipation
  • High case dielectric strength

MUR460 Power Rectifier

12.00 inc. GST
  • Peak Repetitive Reverse Voltage: 600V
  • Average Rectified Forward Current: 4A
  • Non Repetitive Peak Surge Current: 110A
  • Maximum Reverse Recovery Time: 75ns
  • Maximum Forward Recovery Time: 50ns
  • Ultrafast 25 ns, 50 ns and 75 ns Recovery Times
  • 175°C Operating Junction Temperature
  • Low Forward Voltage
  • Low Leakage Current
  • High Temperature Glass Passivated Junction
  • These are Pb−Free Packages*

RS207 Flat Bridge rectifier 2A 70V

12.00 inc. GST
  • Maximum Reverse Voltage, VRM = 1000V
  • Average Rectified Forward Current  at TA = 250oC, IAV: 2A
  • Peak Surge Forward Current, IFSM: 50A

TS4B05G Flat Bridge Rectifier 4A 50V

20.00 inc. GST
  • Maximum Recurrent Peak Reverse Voltage VRRM: 600V
  • Maximum RMS Voltage VRMS: 5600V
  • Maximum DC Blocking Voltage VDC: 600V
