Arduino CNC Shield v3 Engraving Machine/3D Printer/A4988 driver GRBL compatible
- Coolant enable
- Uses removable Pololu A4988 compatible stepper drivers. (A4988, DRV8825, and others) (Not Included)
- Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )
- Compact design.
- Stepper Motors can be connected with 4 pin Molex connectors or soldered in place.
- Runs on 12-36V DC. (At the moment only the Pololu DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)
- Please note that this is an unassembled kit and needs soldering.
- Latest Arduino CNC Shield Version 3.10
- GRBL 0.9 compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals)
- PWM Spindle and direction pins
- 4-Axis support (X, Y, Z, A-Can duplicate X, Y, Z or do a full 4th axis with custom firmware using pins D12 and D13)
- 2 x End stops for each axis (6 in total)
ATtiny85 Arduino-enabled Mini USB Dev Board
- Support for the Arduino IDE 1.0+ (OSX/Win/Linux)
- Power via USB or External Source
- Onboard 5V Regulator
- Built-in USB
- 6 I/O Pins
- 8k Flash Memory (about 6k after bootloader)
- I2C and SPI (vis USI)
- PWM on 3 pins (more possible with Software PWM)
- 10-bit ADC
- ADC on 4 pins
- Power LED and Test/Status LED
- Low Power Consumption
- Active Mode:1 MHz, 1.8V: 300 µA
LilyTiny (LilyPad ATTiny85)
- Program Memory Type: Flash
- Program Memory (KB) : 8
- CPU Speed (MIPS): 20
- Data EEPROM (bytes): 512
- Digital Communication Peripherals: 1-SPI, 1-I2C
- Capture/Compare/PWM Peripherals : 5
- Comparators: 1
- Temperature Range (C) : -40 to 85
- Operating Voltage Range (V): 1.8 to 5.5
- Pin count: 8
- Cap Touch Channels : 3
Arduino Mega 2560 Board
- Microcontroller: ATmega2560
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (limits): 6-20V
- Digital I/O Pins: 54 (of which 15 provide PWM output)
- Analog Input Pins: 16
- DC Current per I/O Pin: 40 mA
- DC Current for 3.3V Pin: 50 mA
- Flash Memory: 128 KB of which 4 KB used by the boot loader
- SRAM: 8 KB
- EEPROM: 4 KB
- Clock Speed: 16 MHz
Arduino UNO R3 Clone
Raspberry Pi 4 (4GB)
- Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
- 2GB, 4GB or 8GB LPDDR4-3200 SDRAM (depending on model)
- 4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
- Gigabit Ethernet
- 2 USB 3.0 ports; 2 USB 2.0 ports.
- Raspberry Pi standard 40 pin GPIO header (fully backward compatible with previous boards)
- 2 × micro-HDMI ports (up to 4kp60 supported)
- 2-lane MIPI DSI display port
- 2-lane MIPI CSI camera port
- 4-pole stereo audio and composite video port
- 265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
- OpenGL ES 3.0 graphics
- Micro-SD card slot for loading operating system and data storage
- 5V DC via USB-C connector (minimum 3A*)
- 5V DC via GPIO header (minimum 3A*)
- Power over Ethernet (PoE) enabled (requires separate PoE HAT)
- Operating temperature: 0 – 50 degrees C ambient

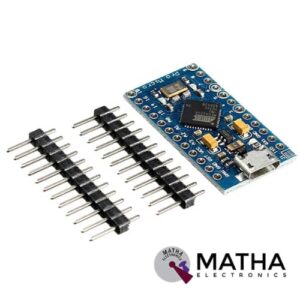

Pro Micro 5V 16M Mini Microcontroller Development Board For Arduino
TL866II Plus Universal USB MiniPro USB Programmer for 15000+IC SPI Flash NAND EEPROM MCU PIC AVR
- High-Speed Programming - 12 Mbps
- Unique ultra-low power consumption
- Portable performance
- Programmable programming power supply
- Best overvoltage, overcurrent protection
- 40-pin universal pin
- Upgrade function
- 54/74F/LS/HC CMOS4000 series IC functional tests
- AVR microcontroller one-to-one soft encryption
- Unified and convenient user interface
- NAND Flash: Yes
- ISP for 24/93/25 MCU: Yes
- 25 NOR Flash Max. Capacity: 512M
- Multiprogramming: 4 programmers
- VPP Max. Voltage: 18 V
- VCC Voltage: 1.8 V to 6.5 V
- W29C020 P+V (s): 10.S+2.4S
- W25X80 P+V (s): 9.3S+1.7S
- W25W64 P+V (s): 69S+14.5S
- Device List: 15,000+
- Support simultaneously burn with 4 Programmers each computer
- Minimum Volume and the lowest Power Consumption and Do not Feel any Heat in Process.
- All chips do not need an external power supply, the low power consumption of its own to ensure that the USB port can provide enough power.
- Best internal 40 pins over-voltage protection, the strongest VCC/VPP 4-level overcurrent protection. The short-circuit do not reset the PC.
- Unique serial ICSP interface
- Test CMOS4000 74/54 series integrated circuit. Can be located in the gate circuit error.
- Chip auto serial number is the most complete and practical.
Mega R3 +WiFi ATmega2560+ESP8266 Module CH340G Compatible For Arduino Mega
- Microcontroller:ATmega2560
- IC Wi-Fi : ESP8266
- USB-TTL converter: CH340G
- Power Out: 5V-800mA
- Power Input USB: 5V (500mA max.)
- Power Input VIN/DC Jack: 9-24V
- Power Consumption: 5V 800mA
- Logic Level: 5V
- Wi-Fi 802.11 b/g/n 2.4 GHz
- USB: Micro USB
- Clock Frequency: 16MHz
- Operating Supply Voltage: 5V
- Digital I/O: 54
- Analog I/O: 16
- Memory Size: 256kb
- Data RAM Type/Size: 8Kb
- Data ROM Type/Size: 4Kb
- Interface Type: SerialOTA
- Operating temperature:−40С°/+125С°
- Build in external antenna
- Dimensions:53.361×101.86mm
UNO R3 +WiFi ATmega328P+ESP8266 Module CH340G Compatible For Arduino Uno
- Microcontroller: ATmega328IC
- Wi-Fi: ESP8266
- USB-TTL converter: CH340G
- Power Output: 5V-800mA
- Power input USB: 5V (500mA max.)
- Power input VIN/DC Jack: 9-24V
- Power Consumption: 5V 800mA
- Logic Level: 5V
- WiFi: 802.11 b/g/n 2.4 GHz
- USB type: Micro USB
- USB Clock Frequency: 16MHz
- Operating Supply Voltage: 5V
- Digital I/O Pins: 14
- Analog I/O pins: 6
- Memory Size: 32Mb
- Interface Type: serial
- Operating temperature: −40С°/+125С°
- Dimensions (L×W)mm: 53.34×68.58
Aluminum Heatsink Cooler Cooling Kit for Raspberry Pi 3/2 Model 3B+ – 3 Piece
- 3m - Sticker for best adhesiveness to the silicon.
- Best aluminium - ensures best fin efficiency and fin effectiveness.
- Colour: Black.
- Suitable for raspberry pi models a, b, b+, 2, and 3 boards.
- Can be applied with other devices such as the beaglebone.
- Dimensions:
- Teeth Number:
- Compatible with most Raspberry Pi cases
- Compatible with other devices such as the Beaglebone
- Compatible with stepper motors, motor driver boards, etc.
