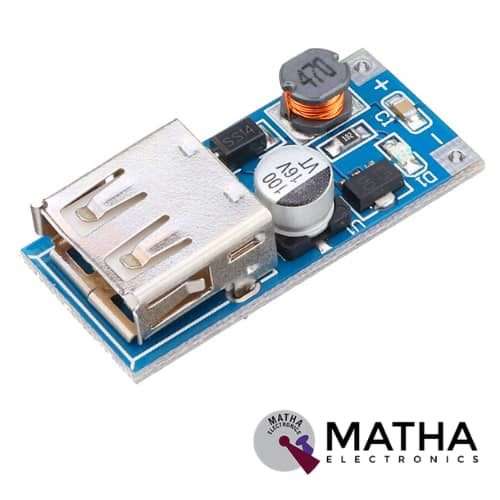

DC-DC BOOST MODULE 0.9V-5V/5V 600MA USB MOBILE Power Supply Module
DC-DC BOOST MODULE 0.9V-5V/5V 600MA USB MOBILE Power Supply Module Original price was: ₹200.00.Current price is: ₹150.00. inc. GST
Back to products

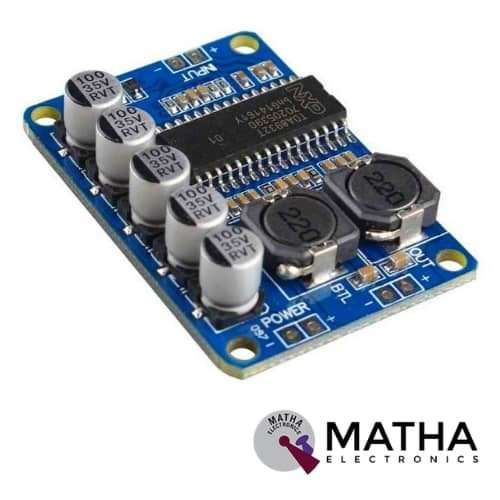

DIGITAL POWER AMPLIFIER BOARD MODULE 35W
DIGITAL POWER AMPLIFIER BOARD MODULE 35W Original price was: ₹1,200.00.Current price is: ₹700.00. inc. GST

DC –DC 600W 10-60V TO 12-80V BOOST CONVERTOR STEP UP MODULE POWER

Original price was: ₹2,000.00.Current price is: ₹1,300.00. inc. GST

  • Input voltage: 12v-60v
  • Output voltage: 12v-80v (adjustable)
  • Input current: maximum input current 15A
  • Output current: maximum output current 10A
  • Output power: effective power input voltage*10A
  • 600-watt high power booster module
  • Operating frequency: 15KHz
  • Overcurrent protection
  • Minimum voltage difference: 2v
  • Ultra-low dropout voltage
  • Conversion efficiency: 95%
  • Short circuit protection
  • dimension:76*60*56mm
  • weight: 250 gm



Description

A boost convertor or a step-up converter is a device that step-up the voltage from its input to its output, by stepping down the current. In this module, the output voltage should be always greater than the input voltage. This 600 w high power booster module supports a wide range of voltage input 12v to 60v, with an adjustable width voltage output of 12v to 80v with output current adjusted at an ultra-low dropout voltage. This module has a wide variety of applications in the field of car power supply, universal car laptop power supply, boost charger with 12v power supply, electronic power supply, etc. Normally this module can support maximum power of 600watts. But in the case of different input voltage, maximum output is the product of input voltage by maximum current limits.

This DC-DC step-up power module booster is a low-cost module with short circuit protection via fuse. A built-in efficient MOSFET switches enable to achieve an efficiency of up to 95%. Thus offers better results and a low ripple factor. This DC-DC Module designed based on a high-performance step-up switching current (BOOST) module. The Onboard LED in the power module illuminates when the voltage applied to the module. And the onboard potentiometer helps to adjust the voltage level. This boost converter step-up module comes with a heat sink at the bottom of the module. This dissipate excess power when the current exceeds the limit
