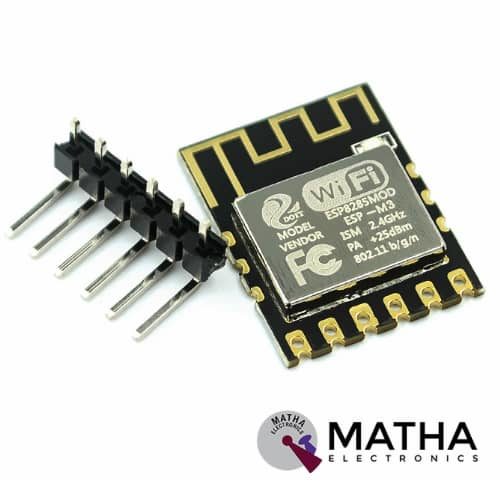

Mini ESP-M2 ESP8285 Serial Wireless Wi-Fi Transmission Module Serial NET MODE Fully Compatible With ESP8266 designed based on an integrated chip specifically to fulfill the needs of a new connected world. ESP8285 is capable of delivering highly integrated Wi-Fi SoC solutions to meet users’ continuous demands for efficient power usage, compact design, and reliable performance in the Internet of Things industry.
ESP-M2 module core processor designed based on high-performance chip ESP8285. Basically, the ESP8285 module is an ESP8266 Module with an additional 1 MB of Flash memory. And the ESP8285 can even bear high temperatures up to 125℃ (the one for ESP8266 is just 85℃). More important, the code programmed in ESP8266 can also be used for ESP8285. The chip ESP825 is encapsulated in an advanced Tensilica’s L106 32-bit CPU, together with SRAM.
ESP8285 has the full and complete WiFi function with self-contained SOC and integrated TCP/IP protocol stack. It gives access to any microcontroller to your WiFi network. This Module is capable of performing either as a standalone application or as a slave to a host MCU. When ESP8285 hosts the application, it promptly boots up from the flash. The integrated high-speed cache helps to increase system performance and optimize system memory. Also, ESP8285 can be applied to any microcontroller design as a Wi-Fi adaptor through SPI/SDIO or UART interfaces. It can handle all the necessary overhead for communicating with your network, such as TCP/IP stack and communicating with your 802.11 b/g/n/e/I.networks.
Module interface:
- 2* UART.
- 1*ADC.
- 1*En.
- 1*wakeup pin.
- 1*HSPI.
- 1*I2C.
- 1*I2S.
- More than 10*GPIOs.
Applications
- Electrical appliance.
- Smart power plug, smart light.
- Infant monitor.
- Sensor networks.
- Security ID label.
- Wireless location beacon.
- Home automation.
- Mesh networks.
- IP video camera.
- Wearable electronics.
- Wireless location recognition
