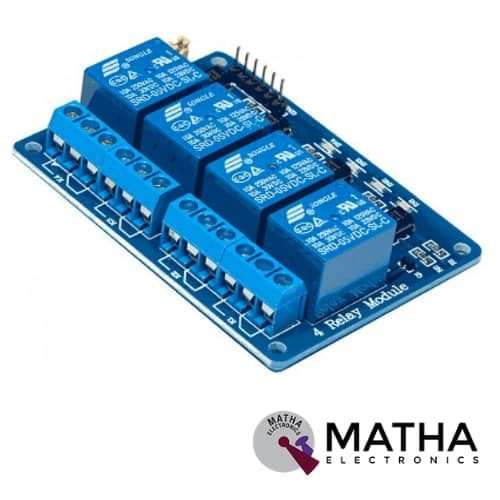

4 Channel 5V Relay Module Shield For Arduino
Original price was: ₹245.00.₹225.00Current price is: ₹225.00. inc. GST
ESP32 LoRa SX1278 0.96 Inch Blue OLED Display BT WiFi Module for Arduino
Original price was: ₹2,450.00.₹2,200.00Current price is: ₹2,200.00. inc. GST

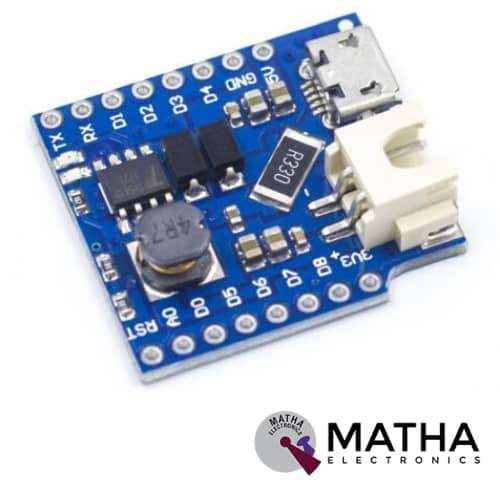

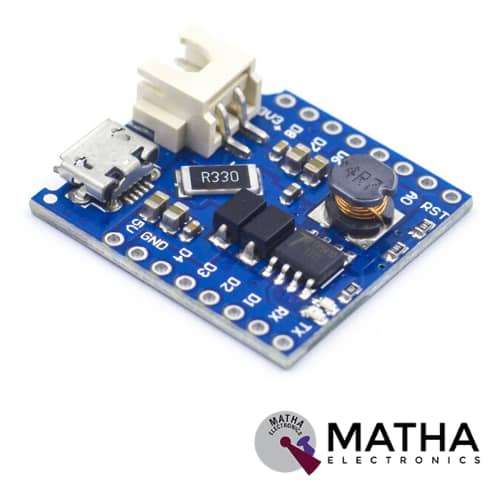

WeMos D1 Lithium Battery Charger Board with Mini USB
Original price was: ₹510.00.₹475.00Current price is: ₹475.00. inc. GST
- Charging Voltage: max: 10V, recommend: 5V
- Charging Current: max: 1A
- Lithium Battery voltage: 3.3-4.2V
- Boost Power Supply: 5V(max: 1A)
- Can use  D1 mini without a USB cable, it’s really wireless
- Can use D1 mini anywhere, using this battery shield and a lithium Battery.
- High reliability
- Charging, when the battery run out, you do not need to unplug the battery, just use the USB port to charge.
Description
The WeMos lithium battery shield is designed as a means of powering the WeMos mini, or the WeMos mini Pro. This is performed via a single cell (3.7V) lithium battery. The shield consists of a DC-DC converter to step up the batteries from  3.7V to 5V. Thereby supplying your WeMos mini and shields with up to a current  1A of power. Under the condition, when the battery is depleted, simply plug the shield into a USB power source using a mini USB cable. And thus it will automatically recharge the battery. This charging board comes with two onboard LEDs on the shield to indicate when the battery is charging and when charging has been completed. Meanwhile, there is no need to unplug the battery,  when the battery runs out while charging, just use a USB port to charge.
D1 mini can be operated without a USB cable, it’s really wireless now. Put D1 mini anywhere, using this battery shield and a lithium Battery.
- Connect to the lithium battery (normal 3.3-4.2V)
- Charging port (normal 5V)
- When the charge is finished, a green LED illuminates.
- Red LED, lights when charging
Ports:
- XH2-2.54mm (Port 1): Connect to lithium battery (3.3-4.2V)
- Micro USB: Charging Port (5V)
- Green LED: Illuminates when charging is complete
- Red LED: When charging is in progress, the red LED illuminates.
- J1: Selects the charging current maximum: 0.5A or 1A.
APPLICATIONS:
- Wireless communication between two microcontrollers
- Communicate with Laptop, Desktops and mobile phones
- Data Logging application
- Consumer applications
- Wireless Robots
- Home Automation
