SC10UU 10mm Linear Motion Bearing Slide Bushing Block
Original price was: ₹300.00.₹250.00Current price is: ₹250.00. inc. GST
Black PLA 1.75 mm 1 Kg Filament For 3D Printer Wanhao
Original price was: ₹1,800.00.₹1,500.00Current price is: ₹1,500.00. inc. GST

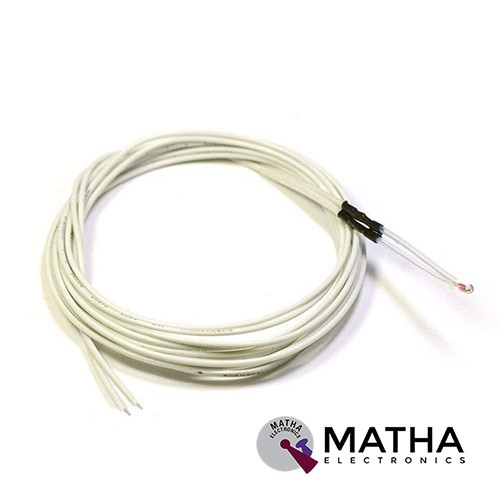

100K ohm NTC 3950 Thermistor/Temperature Sensor for Reprap 3D printer Extruder
Original price was: ₹100.00.₹90.00Current price is: ₹90.00. inc. GST
- High-temperature Teflon wire temperature: 200 degrees
- Nominal resistance R25 (25 ℃): 100k
- Resistance accuracy: ± 1%
- B value R25 / 50: 3950k
- B value accuracy: ± 1%
- Operating temperature range: -40 ℃ ~ +300 ℃
- Dissipation power factor: ≥ 5 mW / ℃ (static air)
- Thermal time constant: ≤ 7S (static air)
- Maximum rated power: 45mW
- Wiring length: 1 meter
- Material: glass glaze film
Description
This 100K ohm NTC 3950 Thermistor/Temperature Sensor designed specifically for Reprap 3D printer Extruder or Heated Bed. This thermistor Conviniently pre-wired with 1 meter long high-temperature PTFE insulated wiring. Moreover, this offers a wide range of applications in 3d printing and often used with a heated bed or extruder. The Stainless steel tube encapsulation protects the probe from waterproof moistureproof thus prevents rust. This compact-sized, easy to install temperature sensor fairly precise ±0.5°C over much of the range.
Hence the temperature can be measured with a precision of 0.0625 C. It can give output is digitally accurate to 12 bits of precision from the onboard digital-to-analog converter. Here the NTC thermistor made up of think material with the heating rod made up of high-quality material. This temperature sensor module offers high sensitivity, and has a swift response, 1 percent, with a resistance value at 25°c= 100k. It uses adaptive thermosensitive material with high-quality wiring insulation with high temperature Teflon/ PTFE
Reviews (0)
Shipping & Delivery
Related products
50~100 DC12V W1209 Digital Thermostat Thermometer Temperature Control
- Supply Voltage: 12V
- Measuring Inputs: NTC10K
- Measurement Accuracy: 0.1 C
- Control Accuracy: 0.1 C
- Refresh Rate: 0.5 Seconds
- Cable Length: 0.5 Meter
- Output Type: 1 Channel Relay Output
- Capacity: 10A
- Temperature Control Range: -50 ~ 110 C
- Resolution at -9.9 to 99.9: 0.1 C
- Resolution at all other temperatures: 1 C
- Temperature: -10 ~ 60 C
- Humidity: 20-85%
- Dimensions:48mm x 40mm x 14mm
DHT11 MODULE
- Operating Voltage: 3.5V to 5.5V
- Operating current: 0.3mA (measuring) 60uA (standby)
- Output: Serial data
- Temperature Range: 0°C to 50°C
- Humidity Range: 20% to 90%
- Resolution: Temperature and Humidity both are 16-bit
- Accuracy: ±1°C and ±1%
- Low power consumption.
- The module can detect the surrounding environment of the humidity and temperature
- High reliability and excellent long-term stability
- The output from the digital output
- Has fixed bolt hole and easy installation
DS1820 Temperature Sensor
- Unique 1–Wire interface requires only one port pin for communication
- Multidrop capability simplifies distributed temperature sensing applications
- Requires no external components
- Can be powered from the data line
- Zero standby power required
- Measures temperatures from –55° C to +125° C in 0.5° C increments.
- Temperature is read as a 9–bit digital value.
- Converts temperature to digital word in 200 ms (Typ.)
- User-definable, nonvolatile temperature alarm settings
- Alarm search command identifies and addresses devices whose temperature is outside of programmed limits (temperature alarm condition)
DS18B20 MODULE
- Resolution: 9bits to 12bits (Selectable)
- Supply Voltage (V): 3 to 5.5
- Temperature Range(°C): -55 to +125
- Measuring Accuracy(°C): ±0.5
- Uses 1-Wire interface- requires only one digital pin for communication
- Unique 64 bit ID burned into the chip
- Multiple sensors can share one pin
- Maximum conversion time and response: 750 ms
- Multidrop capability simplifies distributed temperature sensing applications
- Requires no external components
- Digital signal output
- 18B20 Temperature Sensor Chip
- Send data via a pin
- User-definable nonvolatile (NV) alarm settings
- Dimension: 19*15*6cm
- Weight: 9gm
LM35 SENSOR
- Calibrated Directly in Celsius (Centigrade)
- Operates from 4 V to 30 V
- Linear + 10-mV/°C Scale Factor
- ±0.5°C Ensured Accuracy (at 25°C)
- Can measure temperature ranging from -55°C to 150°C
- Less than 60-µA Current Drain
- Low Self-Heating, 0.08°C in Still Air
- Non-Linearity Only ±¼°C Typical
- Low-Impedance Output, 0.1 Ω for 1-mA Load.
- Drain current is less than 60uA
- The output voltage is directly proportional (Linear) to temperature (i.e.) there will be a rise of 10mV (0.01V) for every 1°C rise in temperature
- Suitable for Remote Applications
- Low-cost temperature sensor
- Available in TO-92, TO-220, TO-CAN, and SOIC package
Stepper Motor Nema 23 kg 7.2 kg Dual shaft
- Rated Voltage: 6.6 V
- Current/ phase: 1A
- Resistance/ phase: 6.6ohms
- Inductance/ phase: 8.2 mH
- Holding Torque: 7.2 kg-cm
- of Leads - 6
- Rotor Inertia - 275
- Weight: 0.65kg
- Detent Torque: 0.36 kg-cm
- Step Angle - 1.8°
- Step Angle Accuracy - ±5% (full step, no load)
- Resistance Accuracy - ±10%
- Inductance Accuracy - ±20%
- Frame Size (mm) - 57x57
- Shaft Length (mm) - 20.6
- Shaft Diameter (mm) - 6.35
- Comparably more powerful than NEMA17 motors.
- Input pulse decides the rotation angle of the motor.
- High accuracy of around 3 to 5% a step.
- Provides good starting, stopping and reversing.
- Control of this motor is less costly because of exclusion of complex control circuitry.
- The speed is proportional to the frequency of the input pulses.
XH-W1401 12V Digital Led Thermostat Module Temperature Controller With Display
- Model: XH-W1401
- Power Supply: DC12V
- Thermostat Range: -9℃ to 99℃
- Thermostat Accuracy: 1℃
- Output : Electric relay output ,capacity 220V 10A/12V 10A
- For cooling or heating temperature control
- Simple Temperature Sensor Module with 12V Relay
- Imported High-Speed single-chip microcomputer.
- Three Display output status indicator.
- Automatically judge heating and cooling according to set temperature.
- Used in various temperature control, water temperature control, incubators, etc.
- Refresh Rate: 0.5 Sec
- Dimension:” 78*55mm
- Weight: 0.040 kg
XH-W3001 DC 12V 120W Digital Microcomputer Thermostat Switch
- Rated Current: 10 Amp Max.
- Measurement Input: NTC10K
- Temp Probe Cable Length: 1 Meter
- Power Supply: DC12V
- Load Power: 120W
- Easy to install
- Output type: Direct output
- Output capacity: max 10A
- Temperature setting upper and lower limits
- Temperature measuring range: -50~110°C
- Temperature control range: -50~110°C
- Control precision: up to 0.1°C
- Up key: Press once to display the start temperature. Long press to set start temperature.
- Down key: Press once to display the stop temperature. Long press to set stop temperature.
- Temperature setting upper and lower limits
- Simple operation, suitable for seafood machines.
- Dimensions 60 x 45 x 31 (mm)
- Weight: 55gm
