10 Inch 350w 24v Brushless E-bike Wheels Scooter Hub Motor
- Rated Power:
- Rated Voltage: 24v.
- Speed: 800 RPM. (400-1000 RPM).
- Motor Efficiency: >83%.
- Rim Size: 10 inch.
- Speed: 12-28km/h.
- Diameter: 254mm with tire.
- Open File: 95mm.
- Weight: 4.5 kg.
- Load Weight: 80-150 KG
- Certification: CE, CCC, ROHS.
12 Inch 350w 24v Brushless E-bike Wheels Scooter Hub Motor
- Motor type: 12-inch brushless toothless hub wheel motor.
- Rated power: 350W.
- Rated voltage: 24V 36V 48V.
- Speed: 20- 35KM / H.
- Speed/RPM: 450RPM.
- Diameter: 275mm.
- Open Size: 140mm.
- Motor Weight: 4.5KG.
- Load Weight: 150 -200KG.
- Brake Compatible: electronic brake, disc brakes.
- Tires: 12X2.125
- Waterproof: IP54.
- Application: electric scooter, folding electric car, ebike, e-motorcycle, bike, front/rear drive.
12 Inch 350w 24v Brushless E-bike Wheels Scooter Hub Motor + Controller
- Motor type: 12-inch brushless toothless hub wheel motor.
- Rated power: 350W.
- Rated voltage: 24V 36V 48V.
- Speed: 20- 35KM / H.
- Speed/RPM: 450RPM.
- Diameter: 275mm.
- Open Size: 140mm.
- Motor Weight: 4.5KG.
- Load Weight: 150 -200KG.
- Brake Compatible: electronic brake, disc brakes.
- Tires: 12X2.125 / 2.5 .
- Waterproof: IP54.
- Application: electric scooter, folding electric car, ebike,e-motorcycle,ebike ,front/rear drive
350W 24V Hub Motor for Electric Bike Bicycle Rear wheel
- Rated Voltage: 24V
- No load Current: 1A
- Rated Current: 14A
- Rated Power: 350 W
- Speed: 320 RPM
- Rated Torque: 6 N
- Compatible Wheel Size: 20 to 28 inches
- Spoke Holes: 36 holes
- Wheel diameter: 130 mm.

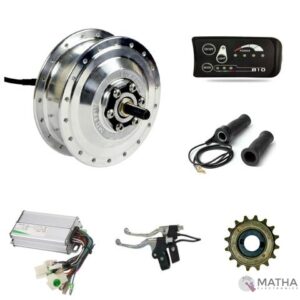

350W 36V Electric Bike Bicycle Rear wheel Hub motor DIY Conversion Kit
- Rated Voltage: 36V
- No load CurreT:1A
- Rated Current: 14 A
- Rated Power: 350W (250 – 350W)
- Speed: 328 RPM
- Rated Torque: 6N
- Compatible Wheel Size: 20 to 28 inch
- Spoke Holes: 36 holes
- Wheel diameter: 130mm.
350W 36V Hub Motor for Electric Bike Bicycle Front
- Rated Voltage: 36V
- No-load Current: 1A
- Rated Current: 14A
- Rated Power: 350W
- Speed: 328 RPM
- Compatible Wheel Size – 20 to 28 inch ;
- Spoke Holes: 36Wheel diameter – 130mm.
350W 36V Hub Motor for Electric Bike Bicycle Rear Wheel
- Rated Voltage: 36V
- No-load Current: 1A
- Rated Current: 14 A
- Rated Power: 350W (250 – 350W)
- Speed: 328 RPM
- Rated Torque: 6N
- Compatible Wheel Size: 20 to 28 inch
- Spoke Holes: 36 holes
- Wheel diameter: 130mm.
6 Inch 350w 24v Brushless E-bike Wheels Scooter Hub Motor
- Voltage: 24v.
- Motor Type: Balance Car, Scooter, Brushless Hub motor.
- Power Output: 250w-350w.
- Shaft Type: D-type
- Shaft Length: 50 mm
- Shaft Diameter: 16mm (ROUND SIDE); 13.5mm (FLAT SIDE)
- Wire length - 200mm approx.
- Opening size - 110mm.
- Color - Black.
- Max speed: 28 km/h.
- Weight: 2.03 kg
8 Inch 350W 24V Brush-less E-bike Wheels Scooter Hub Motor
- Motor type: Brushless Gearless.
- Rated Voltage: 24V.
- Rated Power: 350W.
- Wheel Size: 8".
- Rated speed: 28 km/h.
- Rated efficiency: >=80%.
- Open Size: 108mm.
- Brake type: Drum.
- Waterproof Grade: IP 65.
- Low Noise.
- Less power consumption.
- High Torque.
- High Safety Coefficient.
- High Efficiency.
- Weight: 3.5kg.
Controller for 350W 36V Hub Motor – Electric Bike Bicycle
- Voltage: 36V.
- Wattage: 36V 350W.
- Throttle: 1-4V.
- Short voltage protect: 30V.
- Colour: silver.
- Casing material: Aluminium.
- Note: It will only fit for Motor with sensors.
DC 48V 1500W BM1418ZXF Brushless Motor, Electric Bicycle Kit
- Model: BM1412ZXF.
- Rated Output Power: 1500W.
- Rated Voltage: 48V DC.
- Speed after Reduction: 555 RPM.
- Rated Speed: 3000 RPM.
- Gear Ratio: 1:5.4.
- Full Load Current: 2/21.10A.
- No Load Current: 4.50/4.0A.
- Rated Torque: 60 N.m.
- Application: Small and Medium size E-Tricycle.
- Load weight: around 1000Kg
DC 48V 350W BM1418ZXF Brushless Motor, Electric Bicycle Kit, DIY E-Tricycle
- Rated Output Power: 350W
- Rated Voltage:48V DC
- Speed after Reduction: 480 RPM
- Rated Speed:2800 RPM
- Gear Ratio: 1:6
- Full Load Current: 9.4A
- No Load Current: 2.8A
- Rated Torque: 7.2 N.m.
- Application - Small and Medium size E-Tricycle
