1200w DC DC Boost Step Up Converter 8-60V to 12-83V 20A For Car Laptop Solar Battery
- Input voltage :10-60V
- Output voltage: 12-83V (adjustable)
- Output Current: 12A
- Input Current: 20A
- Constant current range: 0.3 - 20A
- Output power: = input voltage x 10A
- Working temperature: -40~+85 degrees
- Working frequency: 150KHz
- Conversion efficiency: ≤95%
- Connection mode: welding output (please use big current and pure copper wire)
- The non-isolated step-up power conversion module
- Onboard LED illuminates when the voltage is applied to the module
- Equips Multi-turn Potentiometer.
- Overcurrent protection: there is a certain range of error in the input over 30A, automatically reducing the output voltage.
- Short circuit protection: there is (input 40A fuse) double short circuit protection, use more secure.
- Has big heat sink to dissipate heat properly but can add an external fan to the module.
- Dimension (mm): 130 x 52 x 46
30W LM2587 Step-Up Voltage Module
- Input Voltage Range : 3.5V to 30V
- Output Voltage Range: 4V to 30V
- Input Maximum Current : 5A
- Power : 30W
- Efficiency : 92%
- Operating temperature: -40 ℃ – 85 ℃
- Load capacity: 80W (MAX)
- Mode of connection: Wiring terminals are free of soldering, IN is input, OUT is output.
- Suitable for 24V car or laptop power supply.
- Low ripples.
- High power.
- Module size: 37mm x 32mm x 15mm (L x W x H)
- Net weight: 31g
3V To 5V 1A USB Charger Step Up Boost Module
- Module properties: Non-isolated step-up module (BOOST).
- Input voltage: 2.5-6V.
- Output voltage: 4-12 V (Adjustable (need to replacing the resistance to adjustable), the default 5 v).
- Output current: 1000mA (Max).
- Efficiency: 92% (Max) (the higher the input voltage, the higher the efficiency).
- Switching frequency: 1MHz.
- Output ripple: 20mV (MAX).
- Operating temperature: Industrial (-40°c to +85°c).
- Voltage regulation: ±2.5%.
- Short circuit protection: None
- Input: IN + postive, IN - negative.
- Output: USB output.
- Dimension: 3 x 1.3 x 0.8cm.
ADJUSTABLE POWER MODULE 12A 24V BUCK TURN 12V LED DRIVER WITH CURRENT CHARGING INDICATOR
- Input voltage: 7V to 32V
- Output voltage: 0.8V to28 V (continuously adjustable)
- Output current: 12A
- Constant current range: 0.2-12A
- Conversion efficiency: up to 95%
- Operating frequency: 300KHz
- No load current: 20 milli ampere(24V to 12V)
- Dynamic response speed: 5% 200us
- Operating temperature: -40 degree to +85 degree Celsius
- Load regulation: +/- 1% (constant pressure)
- Voltage regulation: +/-1%
- Output ripple: 20M bandwidth
- Power module: QS-2405CCBD
- Two led indicators, light red indicates charging and light green indicates fully charged
- Used in-car power supply, battery charging, low voltage systems etc.
- Short circuit protection
- Dimension: 65*47* 23.5mm

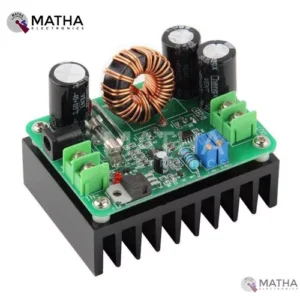

DC –DC 600W 10-60V TO 12-80V BOOST CONVERTOR STEP UP MODULE POWER
- Input voltage: 12v-60v
- Output voltage: 12v-80v (adjustable)
- Input current: maximum input current 15A
- Output current: maximum output current 10A
- Output power: effective power input voltage*10A
- 600-watt high power booster module
- Operating frequency: 15KHz
- Overcurrent protection
- Minimum voltage difference: 2v
- Ultra-low dropout voltage
- Conversion efficiency: 95%
- Short circuit protection
- dimension:76*60*56mm
- weight: 250 gm
DC-DC BOOST CONVERTER STEP UP I/P: 10V – 32V O/P: 12V -35V/6A
- Input voltage: 10V-32V DC
- Output voltage: 12V-35V DC
- Output Current: 6A
- Output ripple: 2% MAX
- Output power: 150 W
- Working temperature: -40 degree to 85 degree
- No load current:25mA
- Voltage regulation:+-0.5%
- Load regulation:+-0.5%
- Dynamic response speed: 200uS 5%
- The non-isolated step-up power conversion module
- Onboard LED illuminates when the voltage is applied to the module
- Equips Multi-turn Potentiometer.
- Easy to drive 65W 90W dual-core notebook.
- The output voltage is continuously adjustable on OUT+ and OUT- screw terminals
- Dimension:2 .60*1.85*1.1inch
LM2577 Boost power module
- Input voltage range : 3-34V DC
- Output voltage range : 4-35v DC adjustable
- Output current:3A
- Voltmeter range:0 to 40V,error +-0.1v
- Multiple output regulator.
- One button to switch input and output voltage display.
- Power-down memory function.
- Press the button for 3 seconds can turn OFF/ON the LED display.
- Multiple output regulator.
- When adjusting the blue potentiometer, please use a multimeter to monitor the voltage
- Rotating Clockwise can raise the voltage while rotating counter clockwise could lower the voltage
MP1584EN MINI 3A DC-DC CONVERTOR
- Input voltage: 4.5V-28V
- Output voltage: 0.8V-20V
- Output current: rated 3A maximum
- Switching frequency: 1MHz
- Output ripple: less than 30mV
- Efficiency: 96%
- Operating temperature: -40 degree to 85 degree Celsius
- Accuracy: +/-0.5%
- Internal soft-start
- Ceramic capacitor stable
- Internally set current limit without current sensing resistor
- Dimension:22*17*4mm
MT3608 2A MAX DC-DC STEP UP POWER MODULE BOOSTER
- Input voltage: 2V-24V
- Output voltage: 5V-28V
- Output current: 2A
- Efficiency: 96%
- Fixed switching frequency: 1.2MHz
- Integrated 80mohm power MOSFET
- Internal compensation
- Automatics pulse frequency modulation mode
- Operating temperature: -40 degree to 90 degree Celsius
- Low-cost converter module
- Simple to adjust to get desired increase I voltage
- Can source a good amount of current
- Dimension: 37*17*7mm
- Weight: 4gm
XL6009 4A DC to DC BOOST CONVERTER
- Module Properties: Non-isolated boost (BOOST)
- Rectification: Non-Synchronous Rectification
- Input Voltage Range: 3V ~ 32V
- Output Voltage Range: 5V ~ 35V
- Input Current: 4A (max), no-load 18mA
- Conversion efficiency: <94%
- Switching frequency: 400KHz
- Output Ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
- Load Regulation: ± 0.5%
- Voltage Regulation: ± 0.5%
- Operating Temperature: -40degree ~ +85 degree
- Dimensions: 43mm * 21mm * 14mm
