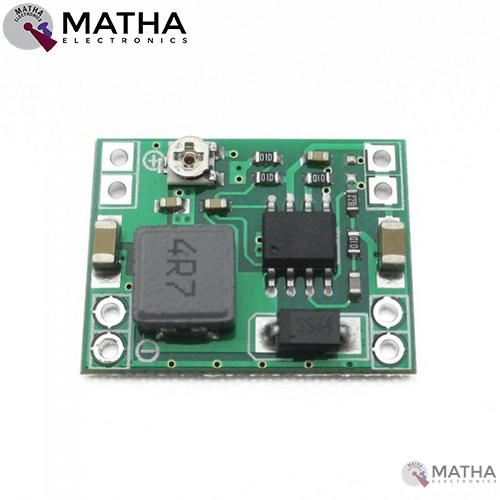

MP1584EN MINI 3A DC-DC CONVERTOR

MP1584EN Mini 3A DC-DC Converter steps down the voltage from its input to output by stepping up the current. This power converter will convert an input 4.5V-28V to output 0.8V-20V at 3A capacity. So this module is suitable for the application which requires a highly efficient power drive. In the MP1584EN Mini 3A DC-DC Converter steps down module, the output voltage is always less than the input voltage. High-Efficiency Pulse Skipping Mode for Light Load helps to achieve high efficiency of 96%. The MP1584 is a high frequency integrated internal high voltage power MOSFET. By switching at 1.5MHz, the MP1584EN Mini 3A DC-DC Converter is able to prevent the EMI  noise problem.

MP1584 has a single-turn potentiometer for adjustment of the output voltage. Turning the pot CW decreases the output voltage. While turning it  CCW increases the output voltage.  Because the pot is single-turn, setting an exact voltage is typically not possible. As a result, the setting can easily be achieved with a couple of percent of the target value which is fine for most applications.

This module features a soft start, thermal shutdown, and under-voltage lockout to protect the module from operating at an insufficient power supply. Low ESR bulk ceramic capacitors avoid long-term aging concerns and contribute to the compact packaging.

The small size, lightweight, low internal power consumption, and wide voltage range make it suitable for different applications. These modules are widely used as DIY mobile power,  camera power supply, car power, and communications equipment supply, etc.
