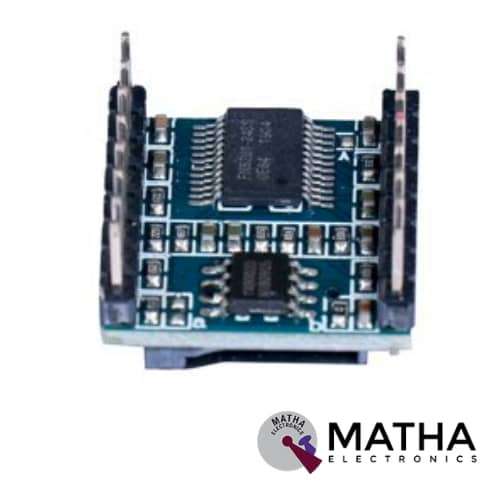

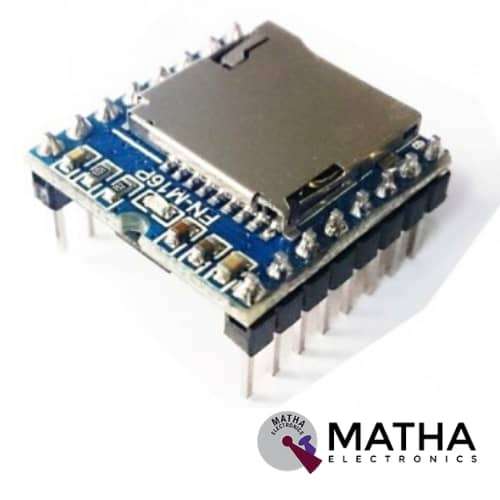

TF-M16P MICRO SD CARD MODULE

MP3 TF-M16P Audio Micro SD card module is a compact and low price module with a perfect integrated MP3 and WMV decoder chip. These are modules with simplified output directly to the speaker. This module can be used as a stand-alone module with a battery, push-button, and speaker attached to it.  Or else in combination with an Arduino UNO or any other RX/TX capabilities. This module supports provides a micro SD card drive and supports FAT16, which is a playback specified sound files and realize other function through serial commands.

TF-M16P Micro SD card module works with most Windows, Mac, and Linux systems. This module can support a maximum of 32GB micro sd card and 32GB USB Flash Drive. As a result maximum of 3000 audio files are under the root directory of storage devices. Moreover, this module supports random playback with 255 audio files. It offers a 24 bit DAC output and supports a dynamic range of 90dB and SNR 85dB.

TF-M16P operates at a voltage range of 2V to 5Vwith a standby current of 2mA. A built-in amplifier of 3 watts can drive a 3-watt speaker directly. As a result, provides 30 levels of adjustable volume and 6 levels of adjustable EQ. This module Supports AD key control mode and UART RS232 serial control mode. Without the cumbersome underlying operating, easy to use, stable and reliable are the most important features of this module. These modules have a wide variety of applications in-car navigation voice broadcast, fire alarm voice prompts, automatic broadcast equipment, multi-channel voice alarm etc.
