20A PWM Motor Speed Controller DC 6 30V 6V 12V 24V 48V
4000W 220V AC SCR Voltage Regulator Dimmer Electric Motor Speed Controller
40A DC MOTOR SPEED REGULATOR PWM CONTROLLER 2000W
- Speed controller model: 40A PWM DC motor speed regulator
- Operating voltage: 10V TO 50V
- Peak current: 40A
- Control power: 0.01-2000W
- Quiescent current: 0.025A
- PWM regulation: 5-100%
- PWM frequency: 12KHz
- Operating temperature: -20 degree to 40 degree Celsius
- Stability in working
- High efficiency
- potentiometer used for speed adjustability
- Dimension: 9*5.1mm
- Weight: 95gm
48v 500W BM1418ZXF Motor Controller
- Rated Voltage: 48 Volt DC.
- Rated Power: 500W.
- Maximum Current: 30 Amps.
- Level Brake: low.
- Current limited: 30A±0.5A.
- Efficiency: ≥83%.
- Consumption: <1.5W.
- Turn The Voltage: 1-4.2V.
- Phase Angle: 120 degrees.
- Includes attachments for motor, accelerator, brake, battery, battery charging, brake light, power lock
5V-12V DC Brushless Motor Driver Board Controller
- Type: Voltage Regulator
- Drive voltage: DC 5-l2V
- Work current: ≤ 1.2A
- Speed range: from 0% to 100%
- Phase inversion Control
- Offers Voltage polarity protection and Overcurrent Protection
- Suitable for hard brushless motor, brushless motor drive and other miniature 3 / 4 wire brushless motor without hall
6V 12V 24V 8A PWM DC Motor Speed Controller CCM5D Digital Display LED Motor Controller Speed Regulator
- Input Supply Voltage: 6V-30VDC
- Continuous Current (A): Rated current 5A (8A MAX, cannot be prolonged)
- Maximum Output Power: 240W
- LED display the duty ratio: 0-100%
- PWM Frequency: 16khz
- Duty Cycle adjustable: 0%-100%
- Dimensions: 78*42*25mm
- The display range of 3-digit LED display is "000"-"100".
- Adjustable speed range is 0%-100%
- Fine workmanship and good performance.
- Easy to use.
- Long service life.
- Suitable for the DC motor (or DC load) within 5A, Peak current 8A.
- Incorporate a push key. Push closed, and then push open

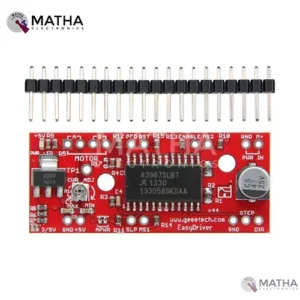

A3967 STEPPER MOTOR DRIVER
- A3967 precision micro-stepping driver
- Power supply: 7v to 30v
- Logic voltage: 5v to 3.3v
- Higher the voltage higher the torque at high speed
- Adjustable current control from 150Ma/ phase to 750ma phase
- Automatic current decay mode detection/selection
- Fast, slow, and mixed current decay modes
- Internal UVLO and thermal shutdown circuitry
- Crossover current protection
- Micro stepping resolution to full, half, quarter, and eighth steps by broken out MS1 and MS2 pins.
- Compatible with Arduino, GRBL G-Code interpreter for driving3-axis CNC machines
- Salington sink drivers used
- Compactible with 4, 6,8 wire stepper motor of any voltage
A4988 Stepper Motor
- Operating voltage supply: 8 V to 35 V
- Continuous current per phase: 1 Amp
- Maximum current per phase: 2 Amp
- Minimum logic voltage: 3V
- Maximum logic voltage: 5.5V
- Microstep resolutions: Full, 1/2, 1/4, 1/8, and 1/16
- Logic Voltage supply: 3.3 V to 5 V
- Compatible with 3V3 and 5V microcontrollers
- Our Board comes with 0.1 Ohm Sensor resistors
- Five different step resolutions: full-step, half-step, quarter-step, eighth-step, and sixteenth-step
- The Correct current decay mode (fast decay or slow decay) is selected by chopping the control
- Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection
- Short-to-ground and shorted-load protection
- 4-layer, 2 oz copper PCB for improved heat dissipation
- Exposed solderable ground pad below the driver IC on the bottom of the PCB
A4988 STEPPER MOTOR DRIVE CONTROLLER BOARD
- Operating voltage supply: 8 V to 35 V
- Continuous current per phase: 1 Amp
- Maximum current per phase: 2 Amp
- Minimum logic voltage: 3V
- Maximum logic voltage: 5.5V
- Microstep resolutions: Full, 1/2, 1/4, 1/8, and 1/16
- Compact size, easy to install and use.
- All jumpers hit the ON position to indicate 16 subdivisions (4988) or 32 subdivisions (8825).
- Jm connection motor; Jv Connects 5V and 12V-24V Power Supply.
- E /S /D /G of Jc corresponds to Enable /Step /Dir /Gnd driving signal output on the connection respectively.
BM1418ZXF 48V 750W Controller for Brushless DC Motor
- Rated Voltage: 48V.
- Rated Output Power: 750W
- Speed after Reduction: 480 RPM
- Rated Speed: 2800 RPM
- Gear Ratio: 1:6
- Throttle: 1-4V.
- Full Load Current: 20A
- No Load Current: 5A
- Rated Torque: 15.36 N.m.
- Load Capacity: Up to 350 KG
- Small and Medium-size E-Tricycle
- Short voltage protection: 31.5±0.5V/42±0.5V.
- Colour: silver.
- Casing material: Aluminium.
- Dimension: 105 x 65 x 32mm
BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Arduino Current Limit
- Input voltage: 6V-27V
- Maximum current: 43A
- Input level: 3.3-5V
- Control mode: PWM or level
- Duty cycle: 0-100%
- Double BTS7960 large current (43 A) H bridge driver
- 5V isolate with MCU and effectively protect MCU
- 5V power indicator on board
- Four lines from MCU to driver module (GND. 5V. PWM1. PWM2)
- Reverse the motor forward, two PWM input frequency up to 25kHZ
- Two heat flow passing through an error signal output
- Dimension: Approx. 4 * 5 * 1.2cm
