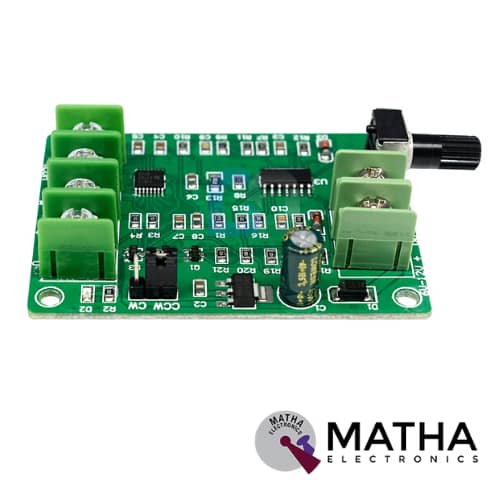

5V-12V DC Brushless Motor Driver Board Controller

  • Type: Voltage Regulator
  • Drive voltage: DC 5-l2V
  • Work current: ≤ 1.2A
  • Speed range: from 0% to 100%
  • Phase inversion Control
  • Offers Voltage polarity protection and Overcurrent Protection
  • Suitable for hard brushless motor, brushless motor drive and other miniature 3 / 4 wire brushless motor without hall
Compare
Add to wishlist
Categories: Controllers, Motors & Controllers, Slide 4 Tags: BLDC, DC Brushless Motor Driver, speed controller
Share
Facebook Twitter linkedin WhatsApp WhatsApp Telegram
  • Description
  • Reviews (0)
  • Shipping & Delivery
Description

A 5V-12V DC Brushless Driver Board Controller designed explicitly for Hard Drive Motor 3/4 Wire. This is a motor driver based on the BLDC motor which offers low power. This DC Brushless Driver Board is capable of driving hard disk brushless motors, CD-ROM brushless motors, and another micro brushless motor of line 3 or 4 wires without a hall sensor.

Moreover, this driver board features reverse voltage protection, over current protection, and phase inversion control. Thereby ensure high user safety and high reliability. The 5V-12V DC Brushless Driver Board Controller operates at a voltage range of 5V to 12V, with a working current of less than 1.2A. As the motor provides higher voltage, the faster will be the speed. It offers a maximum speed of up to 10,000rpm.

NOTE: Care should be taken when the Brushless motor line of receiving terminal drive plate should be pressed sturdiness. This is because poor contact will lack phase operation and results in burn out the chip. Board terminals fixed screw clearance, please use a coarser line connected to the board.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “5V-12V DC Brushless Motor Driver Board Controller” Cancel reply

Your email address will not be published. Required fields are marked *

Shipping & Delivery

I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
