-7%
Click to enlarge
Home3D Printer & CNCSlide 4 5V Step Motor 28BYJ-48-ULN2003
Previous product
9V 100mA Solar Panel ₹300.00 ₹250.00
Back to products
Next product
9V 200mA Solar Panel

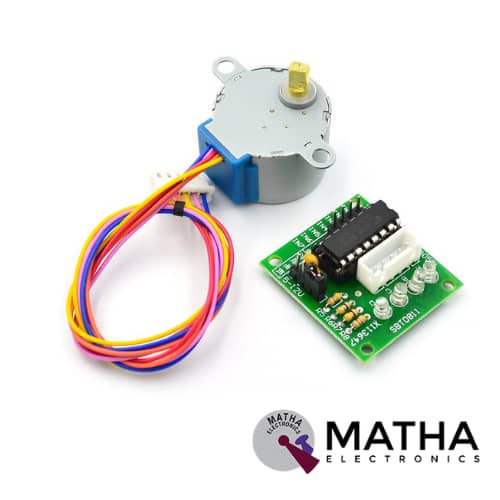

5V Step Motor 28BYJ-48-ULN2003

₹280.00 ₹260.00

  • Rated voltage: 5V DC
  • Reduction Ratio: 64:1
  • Step Angle: 5.625° /64
  • Frequency: 100Hz
  • Self-positioning Torque: >34.3mN.m
  • No of phase: 4
  • Speed variation ratio: 1/64
  • Pull-in torque: 300 gf.cm
  • Friction torque: 600-1200 gf.cm
  • DC resistance: 50Ω±7% (25°C)
  • Insulated resistance: >10MΩ (500V)
  • Insulated power: 600VAC/1mA/1s
  • Rise in Temperature <40K(120Hz
  • Noise <35dB(120Hz,No load,10cm
  • Stepper motor with a standard interface, when used directly pluggable.
  • Four-phase LED indicator which indicates the status of the stepper motor work.
  • Compact size stepper motor perfect for small robotics applications.
Compare
Add to wishlist
Categories: Motors & Controllers, Slide 4, Stepper Motors Tags: 28BYJ-48, 5V Step Motor ULN2003, Stepper Motor, ULN2003
Share
Facebook Twitter linkedin WhatsApp WhatsApp Telegram
  • Description
  • Reviews (0)
  • Shipping & Delivery
Description

This 5V DC 28BYJ-48 Stepper Motor designed as compact sized, low cost, and high-quality geared step motor. The 28BYJ-48 Stepper Motor comes with a ULN2003 Stepper Motor Driver IC which controls the stability and reliability of the system. The 28BYJ-48 Stepper Motor designed as a 5-wire unipolar stepper motor that runs on 5 volts.

ULN2003 defined as a Mini Stepper Motor Driver consisting of an array of 7 Darlington transistor pairs, each pair is capable of driving loads of up to 500mA and 50V. And used to amplify the control signals from the Arduino, in order to drive the 28BYJ-48 Stepper Motor. When the certain pulse is fed to the ULN2003 stepper driver, it will drive the step motor to a certain angle. The number of stepper motor driver pulses controls the Stepper Motor movement angle. The onboard four LEDs indicate status on the four control input lines.

The 5V DC 28BYJ-48 Stepper Motor offers a reduction ratio of 64:1, providing a decent torque for its size at speeds of about 15 RPM. During full step mode, each step corresponds to a rotation of 11.25°means there are 32 steps per revolution (360°/11.25° = 32).  power These motors can be positioned accurately, one ‘step’ at a time. The other advantage is that they are relatively precise in their movement and they are quite reliable since the motor does not use contact brushes. They offer high torque even in the stand-still state which is maintained as long as power is supplied to the motor. The only drawback is that they consume power even when they are not moving. Hence power consumption of the motor is around 240mA.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “5V Step Motor 28BYJ-48-ULN2003” Cancel reply

Your email address will not be published. Required fields are marked *

Shipping & Delivery

I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
