20mm LDR
- Diameter: 25mm
- No. of Pins: 2
- Type of Mounting: PCB Through Hole
- Maximum Operating Temperature: +800C (Approx.)
- Dark resistance:1-20M ohm
- Good reliability
- High sensitivity
- Fast response
- Good spectrum characteristic
- Size: 20mm (50-paise size)
- .Coated with epoxy
- Miniature open frame package.
- Proxy coated.
- Moisture resistant.
- Spectral response is similar to the human eye.
250 Volts Float Switch Sensor for Water Level Controller
- Protection: Waterproof
- Medium Working Pressure: Max 1 Bar
- Circuit Breaking Capacity: Directly KW with 250V
- Medium Temperature: 70 Deg.C.
- Mechanical endurance: ≥100,000 times
- Electrical endurance: ≥500,000 times
- Cable length: 3m
- Corrosion Free,
- Sturdy and durable & need no maintenance.
- No current / voltage is passed through water, therefore no electrolysis or Salt deposition.
- Long life (approximate 10 million operations)
- Rust proof (entire sensor body in polypropylene)
- Used in hard water or fuel such as diesel, kerosene, oil etc.
- Dimensions : 11 x 9 x 5cms
- Weight 690 grams
50Kg Pressure Micro Scale Weighing Sensor
- Capacity : 50.kg
- Output Sensitivity (mv/v): 1.0±0.1.
- Nonlinearity (%FS): 0.03.
- Repeatability (%FS): 0.03.
- Input Resistance: 1000. Ω
- Insulation Resistance : ≥5000.MΩ
- Alloy Steel wired weighing load cell
- High Accuracy
- Simple Structure & Easy Installation.
- Internal 1000 Ω half-bridge strain gauge load cell, the range is 50kg, half-bridge structure
- You can use multiple load sensors simultaneously to increase the capacity range, Parallel use to add additional capacity.
5mm LDR
- Diameter: 5mm
- No. of Pins: 2
- Type of Mounting: PCB Through Hole
- Maximum Operating Temperature: +800C (Approx.)
- Dark resistance:1-20M ohm
- Good reliability
- High sensitivity
- Fast response
- Good spectrum characteristic
- Size: 20mm (50-paise size)
- .Coated with epoxy
- Miniature open frame package.
- Proxy coated.
- Moisture resistant.
- Spectral response is similar to the human eye.
8mm LDR
- Diameter: 8mm
- No. of Pins: 2
- Type of Mounting: PCB Through Hole
- Maximum Operating Temperature: +800C (Approx.)
- Dark resistance:1-20M ohm
- Good reliability
- High sensitivity
- Fast response
- Good spectrum characteristic
- Size: 20mm (50-paise size)
- .Coated with epoxy
- Miniature open frame package.
- Proxy coated.
- Moisture resistant.
- Spectral response is similar to the human eye.
Air Pressure Sensor MPX 10
- Pressure Type: Differential Sensitivity
- Operating Pressure Min: 0kPa
- Operating Pressure Max: 0-10kPa
- Minimum Supply Voltage: 3V
- Maximum Supply Voltage: 6V
- of Pins: 4Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Low Cost
- Patented Silicon Shear Stress-Strain Gauge Design
- Ratiometric to Supply Voltage
- Easy to Use Chip Carrier Package Options
- Differential and Gauge Options
- Durable Epoxy Unibody Element or Thermoplastic
- (PPS) Surface Mount Package
Anti-Corrosion Water Level Sensor with Ball Float Switch
- Rating Contract (Max.): 10 W
- Switching Power Supply (Max.): 110VDC
- Pulse current (Max.): 0.5A
- Breakdown Voltage (Max.): 220VDC
- Current (Max.): 1A
- Resistance Contract (Max.): 100 Ω
- Operating Temperature: -10 to 60degree C
- Cable length: 40cm
- Shipment Weight: 0.02 kg
- Float Ball Size : 24×17mm
- Body Total Length: 85mm
- Total Float opening: 70°
- Float Switch ON/OFF angle: Approx. between 15° to 20°

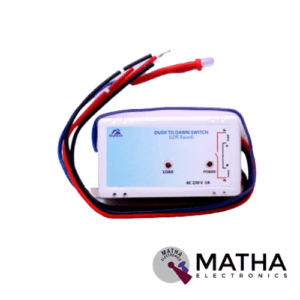

Automatic Day Night Dusk to Dawn Light Sensor Switch LDR Control 5A 230V AC
- Input supply: 230V AC
- Output supply: 230V AC
- Operating frequency: 50Hz
- Power rating: 400W
Brass G1/4″ BSP Hall Effect Flow Sensor Water 0.35-3.0L/min OD12 WaterTurbine Flowmeter SEN-HZ41WC
- Water quality requirement: Drinking water health standards, 0-80℃.
- Flow range: 0.35 -0 Liter/min.
- Withstand hydraulic pressure: ≤1.75 MPa.
- Operating voltage: DC 4.5 - 18 Volt
- Operating current: ≤15mA.
- Insulation resistance: >100MΩ.
- Electrical strength: AC500V, 50HZ.
- Output level: Rated voltage DC5V, high level ≥4.5 Volt, low level ≤0.5 Volt.
- Pulse duty cycle: 50%.
- Flow characteristic: F=73Q, F: HZ, Q: L/min，±10%.
- Cumulative flow conversion: 1 Litre water=1780 pulse, accuracy: 8%.
DHT11 Sensor
- Operating Voltage: 3.5V to 5.5V
- Operating current: 0.3mA (measuring) 60uA (standby)
- Output: Serial data
- Temperature Range: 0°C to 50°C
- Humidity Range: 20% to 90%
- Resolution: Temperature and Humidity both are 16-bit
- Accuracy: ±1°C and ±1%
DN40 – 1.5” Water Flow Sensor
- Model: YF-DN40
- Material: Plastic
- Function: Sensor, flow rate control
- Working Voltage: DC 5V~24V
- Thread size: BSP 1 1/2”
- Size:L 92x OD46 5"
- Colour: Black color
- Flow rate: 5~200L/min
- Flow Pulse: F(Hz)=(0.45xQ) +/-3% Q=L/min
- 1L water= 27Pulse
- Working Current: 15mA (DC5 V)
- Working Voltage: DC 4.5V
- Load Capacity: =10 mA (DC 5 V)
- Operating Working Temperature : -25 to +80 Degree C
- Liquid Temperature: 85
- Accuracy: 3~5%
- Working environment: water, liquid, light oil etc.
- Hydrostatic pressure> 1.75MPa meet
- Insulation resistance> 100M> 100M
- Accuracy in 1 ~ 120L / MIN ± 2% in line
- Flow pulse characteristics F = (0.45 * Q) Q = L / Min meet
- Weight: 146g
DS1820 Temperature Sensor
- Unique 1–Wire interface requires only one port pin for communication
- Multidrop capability simplifies distributed temperature sensing applications
- Requires no external components
- Can be powered from data line
- Zero standby power required
- Measures temperatures from –55° C to +125° C in 0.5° C increments.
- Temperature is read as a 9–bit digital value.
- Converts temperature to digital word in 200 ms (typ.)
- User–definable, nonvolatile temperature alarm settings
- Alarm search command identifies and addresses devices whose temperature is outside of programmed limits (temperature alarm condition)
