GY-906 MLX90614ESF Contactless Temperature Sensor Module
- Small size, low cost
- Mounted on a breakout board with two types of pins
- 10k Pull up resistors for the I2C interface with optional solder jumpers
- Easy to integrate
- Factory calibrated in wide temperature range:
- Sensor temperature: -40...+125°C
- Object temperature: -70...+380°C
- High accuracy of 0.5°C over the wide temperature range
- (0...+50°C for both Ta and To) High (medical) accuracy calibration
- The measurement resolution of 0.02°C
- Single and dual-zone versions
- SMBus compatible digital interface
- Customizable PWM output for continuousreading
- Simple adaptation for 8...16V applications
- Sleep mode for reduced power consumption

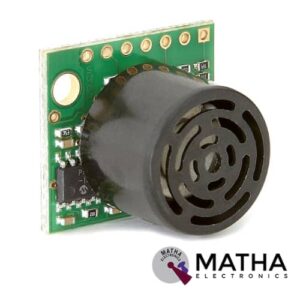

Sonar Range Finder -High Performance Ultrasonic Sensor Module
- Low-cost ultrasonic rangefinder
- Size less than 1 cubic inch with easy mounting
- Resolution of 1mm
- 100mS measurement cycle
- The free run operation uses a 2Hz filter, with 100mS measurement and output cycle
- Operating temperature range from -15°C to +65°C
- Operating voltage from 2.5V to 5.5V
- Nominal current draw of 2.5mA at 3.3V, and 3.1mA at 5V
GP2Y0A710K0F 100-550cm
- Model: GP2Y0A21YK0F
- Operating Voltage Range: 4.5~5.5V
- Average current consumption: 30 mA
- Distance measuring range: 100 cm to 550 cm
- LM2596 Based design
- Output type: Analog voltage
- Output voltage differential over distance range: 2.05 V (typical)
- Update period: 38 ± 10 ms
- Screw Holes: 37mm apart, 3 mm in diameter
- Connecting cable length:15cm
- Very Small in size
- Less influence on the colour of reflected objects, reflectivity
- Analogue voltage corresponding to the voltage
- External control circuit unnecessary
- Low cost
- The sampling rate of nearly 25 readings per second
- Dimension: 58*17.6*22.5mm
- Weight: 3.5 gm
FlexiForce Tekscan A201 Sensor
- Thickness 0.203 mm (0.008 in.)
- Length 191 mm (7.5 in.)** (optional trimmed lengths:
- 152 mm (6 in.), 102 mm (4 in.), 51 mm (2 in.))
- Width 14 mm (0.55 in.)
- Sensing Area 9.53 mm (0.375 in.) diameter
- Connector 3-pin Male Square Pin (centre pin is inactive)
- Substrate Polyester
- Pin Spacing 2.54 mm (0.1 in)
- Small size is ideal for prototyping and integration
- Thin and flexible
- Easy to use
DN40 – 1.5” Water Flow Sensor
- Model: YF-DN40
- Material: Plastic
- Function: Sensor, flow rate control
- Working Voltage: DC 5V~24V
- Thread size: BSP 1 1/2”
- Size:L 92x OD46 5"
- Colour: Black color
- Flow rate: 5~200L/min
- Flow Pulse: F(Hz)=(0.45xQ) +/-3% Q=L/min
- 1L water= 27Pulse
- Working Current: 15mA (DC5 V)
- Working Voltage: DC 4.5V
- Load Capacity: =10 mA (DC 5 V)
- Operating Working Temperature: -25 to +80 Degree C
- Liquid Temperature: 85
- Accuracy: 3~5%
- Working environment: water, liquid, light oil etc.
- Hydrostatic pressure> 1.75MPa meet
- Insulation resistance> 100M> 100M
- Accuracy in 1 ~ 120L / MIN ± 2% in line
- Flow pulse characteristics F = (0.45 * Q) Q = L / Min meet
- Weight: 146g
TURBIDITY SENSOR
- Working voltage: DC5V
- Measure water turbidity and estimate water quality
- Operating Current: 30mA (MAX)
- Response time : <500ms
- Digital and analogue output
- High level: 5V, low level: 0V
- Operating temperature: -30 to 80 degrees C
- Storage temperature:-10 to 80 degrees C
- Compatible with Arduino, Raspberry Pi, AVR, PIC, etc.
- Weight: 15g
GSR Sensor for Grove
FlexiForce Tekscan A502 Sensor
- Thickness - 0.203 mm (0.008 in.).
- Length - 81.3 mm (3.20 in.)**.
- Width - 55.9 mm (2.20 in.).
- Sensing Area - 50.8 mm x 50.8 mm (2 in. x 2 in.).
- Connector - 2-pin Male Square Pin.
- Substrate - Polyester.
- Pin Spacing 2.54 mm (0.1 in.).
- Standard Force: 222 N.
- Temperature Range (Low): -40 °C.
- Temperature Range (High): 60 °C.
- Thin and flexible.
- Ideal for prototyping and integration.
- Easy to use.
YF G1 Water Flow Sensor
- Working Voltage: DC 4.5V
- Working Voltage: DC 5V~18V
- Flow Rate Range: 2~100L/min
- Water pressure resistance: = >2MPa
- Operating Temperature: = -20~85C
- Insulation resistance: = >100MΩ
- Characteristics of Flow pulse: f=(4.8*Q) Q=L/Min
- Accuracy: ±3%
- Compact, Easy to Install
- High Sealing Performance
- High-Quality Hall Effect Sensor
- RoHS Compliant
Flex Sensor 4.5”
- Operating voltage: 0-5V
- Power rating: 0.5Watt (continuous), 1 Watt (peak)
- Life>1 million
- Flat Resistance: 10K Ω
- Resistance Tolerance: ±30%
- Bend Resistance Range: 60K to 110KOhms(depending on the bend)
- Total Length: 4.5″
- Bends and Flexes physically with the motion device.
- Simple Construction.
- Dimension:11*1*5cm
- Weight: 400gm
Microwave Sensor
FlexiForce Tekscan A401 Sensor
- Thickness - 0.203 mm (0.008 in.).
- Length - 56.9 mm (2.24 in.)**.
- Width - 31.8 mm (1.25 in.).
- Sensing Area - 25.4 mm (1 in.) diameter.
- Connector - 2-pin Male Square Pin.
- Substrate - Polyester.
- Pin Spacing - 2.54 mm (0.1 in.).
- Standard Force Ranges - 111 N (0 - 25 lb) ; 31,138 N (0 - 7,000 lb).
- Ideal For Prototyping And Integration
- Available with Enhanced Stability Series (ESS) pressure-sensitive ink for high-temperature and High-humidity environments
- Thin and flexible
- Easy to use
