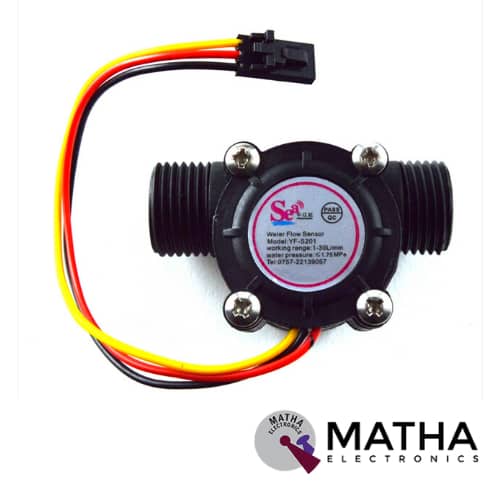

YF G1 Water Flow Sensor

YF-G1 DN25 1 inch Water flow sensor designed specifically for flow measurement applications.  This water flow sensor is made up of 1 inch in size and consists of a plastic valve body, a water rotor, and a hall-effect sensor. These modules are installed in the water heater inlet, used to detect water flow. When the water flows through rotor components, causes the magnetic rotor rotation, and the speed changes with the flow. The hall sensor output corresponding pulse signal gives feedback to the controller, then the controller judge the size of the water flow, adjust, and control. When water flows through the rotor, the rotor rolls. As a result, its speed changes with different rates of flow. This sensor is widely used to detect flow in water dispensers or coffee machines.

CAUTION:

• Matters needing attention
• Severe shock and chemical erosion are strictly prohibited.
• Strictly prohibited to throw or collide。
• Strictly follow the product to the water direction, connect the water pipe。
• The liquid temperature should not exceed 120 C。
• Press the arrow on the product to install
• The medium temperature should not exceed 80 deg C.

 CONNECTION DETAILS

• Red IN: Positive
• Yellow OUT:  Signal output line
• Black GND: Negative pole

APPLICATION:

• Suitable to detect flow in water dispensers, coffee machines, Industries, swimming pools, irrigation, etc.
