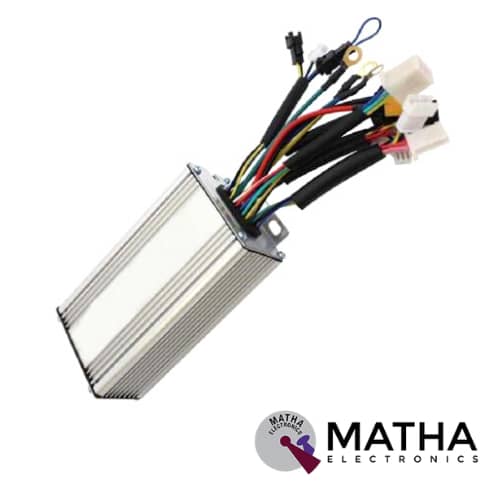

Controller for BM1418ZXF 48V 350W for Brushless DC Motor

This BM1418ZXF 48V 350W new technology controller is designed explicitly for Electric Bike Bicycle Front. This new innovation is used for converting your vehicle or cycle into Electric Bicycle. Hence Brushed motor controller ensures steady speed and sensitive control of braking and direction changes in an electric bike bicycle. The controller body/shell is made up of a high-quality aluminium alloy that protects the inner circuit. Hence this premium shell is good for heat dissipation to avoid thermal overloading. Meanwhile, the controller wires and interfaces offer high durability, thereby ensuring malfunction of long time use. This universal motor E-bike Controller features under Voltage protection 42 Volts. Moreover, it provides a Current limiting feature that prevents controller and motor damage due to over-current conditions. Finally, the controller board comes with attachments for the motor, accelerator, brake, battery, brake light, power lock.

As a result, this  350W DC 48V Brushless Motor Controller provides easy installation as it can be easily mounted on E-bike, Electric Bicycle, etc. Moreover, this controller features:

• Anti-coaster and over-current protection
• Automatic identification of the 36V and 48V
• Automatic identification of the Hall sensor
• Phase angle identification of 60 degrees and 120 degrees

OPERATION:

• Blue/Black – cruise/ground.
• White wire – self-learning (plug two white wires together).
• White/Black – Brake (low)/brake(low).
• Purple – Brake (high).
• Red/Black/Green – throttle positive/throttle negative/throttle signal.
• Red/Black/thin Yellow/thin blue/thin green – +5V//Earthing/Motor Hall lines.
• Thin Blue – instrument.
• Red/Blue/Black – +5V/Signal/Earthing (Pedal Assistant).
• Thick Blue/thick Yellow/Thick Green – Motor phase lines.
• Thick Red/thick Black/thin red – indicates power positive/power negative/power lock.
