18V 1CO 30A Open Relay
Original price was: ₹285.00.₹275.00Current price is: ₹275.00. inc. GST

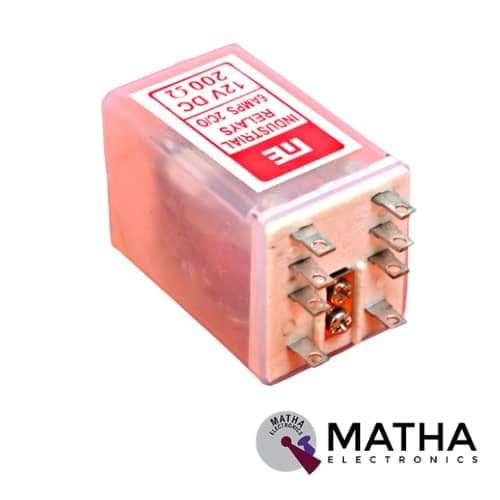

12V 2CO 6A Relay
Original price was: ₹120.00.₹100.00Current price is: ₹100.00. inc. GST
12V 2CO 6A PCB Relay
Original price was: ₹55.00.₹48.00Current price is: ₹48.00. inc. GST
- Voltage: 12V
- Current: 6A
- Complete range from PCB to power relays to cover all of your switching requirements
- International certifications and approvals including CE, CSA, EAC, PCT, RINA, VDE and RoHS, provide quality assurance of a market-leading product
- Compact construction allows for the most efficient use of space
Description
Printed circuit board (PCB) relays are designed as compact relay devices used for power management in control system designs. These relays can be mounted directly on the printed circuit board. Relays are mainly used for more than 3A load switches and are used in a wide range of household appliances, such as refrigerators, washing machines, and AV devices. As well as various FA equipment, industrial equipment, and household equipment. These ultra-slim electromechanical PCB relays offer 6 A, with 5 mm width, low absorption coil, and are suitable for PCB mounting or socket mounting using the 93 Series sockets.
An electromechanical PCB relay consists of a coil, an armature, and contacts. Applying power to the coil generates a magnetic field. This causes the armature to move and the contacts to open or close. Meanwhile, these electromechanical relays ensure excellent contact ratings and a wide range of form, fit, and functions for different applications. These PCBÂ relays offer long mechanical and electrical life and also feature fast switching times in the 0.45 to the 1.00-microsecond range.
Pin Description
- Coil
- Common
- Coil
- NC
- NO
Reviews (0)
Shipping & Delivery
Related products
8 CHANNEL 5V RELAY
- Relay operating voltage: 5V
- 8 channel
- High impedance controller pin
- One normally closed contact and one normally opened
- Useful for appliances control
- Power supply indicator and control indicator lamp
- Pull-down circuit to avoid malfunction
- Can control both DC and AC to 220v AC load
- Works with both 3.3 V and 5 V logic with the less current drive
- 3 terminals per SPDT relay
- Standard interface can be directly controlled by a microcontroller like Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, TTL logic
- Dimension: 7*6.4*1 inch
Solid State Relay Module DC To AC SSR-40DA 3-32VDC/24-380VAC 40A
- Control mode: DC-AC
- Input voltage: 3-32V DC.
- Output voltage: 24-380V AC.
- Output current: 40A.
- Working voltage: 250V.
- Material: plastic + metal.
- Loading current: 40A
- Control current: 3-25mA DC
- On voltage: ≤1.5V AC
- One-off Time: ≤10ms
- Off Leakage Current: ≤2mA
- Dielectrics voltage-resistance: 2500VAC
- Environment temperature: -30 to +75
- Long service life and high reliability.
- Reduced electromagnetic interference.
- Highly reliable, compact size designed to offer users maximum simplicity.
Solid State Relay Module SSR-25DA 25A /250V 3-32V DC Input 24-380VAC Output
- Control mode: DC-AC
- Input voltage: 3-32V DC.
- Output voltage: 24-380V AC.
- Output current: 25A.
- Working voltage: 250V.
- Material: plastic + metal.
- Environment temperature: -30 to +75
- Long service life and high reliability.
- Reduced electromagnetic interference.
- Highly reliable, compact size designed to offer users maximum simplicity.
- Dimension: 6. 5Cm x 4. 5Cm x 2. 2Cm
