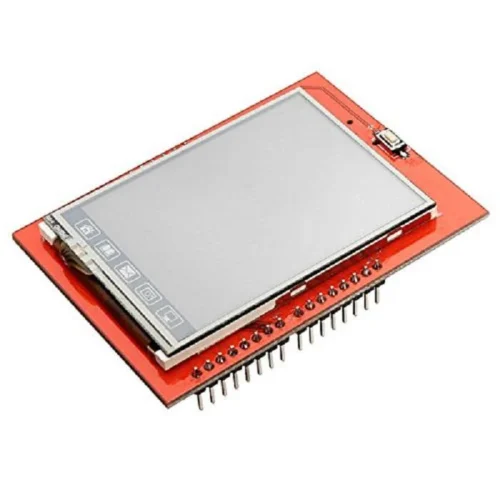

3.5-inch ILI9486 TFT LCD display module shield
3.5-inch ILI9486 TFT LCD display shield with touchscreen, 320×480 resolution, Arduino compatible—ideal for graphical and interactive projects.
Description
The 3.5-inch ILI9486 TFT LCD Display Module Shield is a high-quality touchscreen display designed for Arduino and compatible microcontroller platforms. Featuring the ILI9486 driver IC, it provides 320×480 pixel resolution with vivid colors and excellent viewing angles, making it ideal for graphical interfaces.
This shield version allows direct stack-on connection to Arduino boards without additional wiring. It supports resistive touchscreen input, making it suitable for interactive projects such as menus, control panels, and graphical displays. The module is compatible with Arduino UNO, Mega, and other 5V boards, and it can be used with TFT libraries for easy development.
Compact yet versatile, the 3.5-inch TFT shield is perfect for DIY electronics, IoT devices, user interfaces, embedded control systems, and educational projects.
