3S BMS BOARD 25A
₹350.00 Original price was: ₹350.00.₹300.00Current price is: ₹300.00. inc. GST
- Charging Voltage: 12.6V DC CC/CV
- Balance Voltage for Single Cell: 4.2V
- Max Continuous Charge/Discharge Current: 25A
- Overcharge voltage range: 4.25-4.35v + 0.05v.
- Over discharge voltage range: 2.3-2.7v + 0.05v.
- Operating current: 0 – 25A.
- Operating temperature: -40 – +50℃.
- Instantaneous current: 35 – 40A.
- Storage condition: -40 – +80℃.
- Quiescent current: less than 30uA.
- Balance current: about 40 – 50mA.
- Effective life: more than 30000 hours.
- Internal resistance: less than 100m ohms.
- Short-circuit protection: protection, delayed self-recovery.
This is a Li-ion 18650 BMS PCM battery protection board with a 25A balance. This board is built using three Lithium-Ion batteries linked in series to form an 11.1V battery pack. This module has capabilities for high current with balanced circuit, overcharge, overdischarge, overcurrent, and short circuit protection. The charging and discharging of this board is done using a single connecting port. The balanced circuit is also included on the board. This board’s Balance charge function (BMS) makes it suitable for a wide variety of applications. The maximum rate of continuous charge/discharge is 25A.
When the charge-balanced condition is met, the board will be somewhat heated. Some are still in the balance even after the charger is turned off. This will continue to warm for some time until it falls below the equilibrium break threshold. This protection board cannot be used for iron lithium polymer batteries (other batteries, regardless of material, may be used for cutting as long as the overvoltage and put voltage can be used), electric finish machines, electric bicycle batteries, vehicle and motorcycle starter battery protection. It is strongly advised that the rated current not exceed 25A and not exceed 50A every 0.5 seconds. The 3S 25A Lithium Ion BMS is a high-quality Lithium-Ion battery management system.The 3S 25A Lithium Ion BMS also provides connections for the Temperature probe. The temperature will be used to balance the charging or discharging current by the module.
Applicable to the following products (within rated power):
775 motors (6A-10A), small power inverter, small power vacuum massager battery, LED light, 12V standby power electronic goods, 12V120W car washing pump, batteries, solar street lamp monitoring standby power supply, and other items are available.
CONNECTIONS
- P+/P-: Charging Or Discharging
- B+/B-/B1/B2: Battery Pack Connections in 3 Series Formations

Related products
1 CHANNEL 5V RELAY
- 1 channel relay board
- Operating voltage: 5V
- Maximum current: 2 A
- Relay contact current capacity of 10A @250 V AC/10A@ 30V AC
- configured as SINGLE POLE DOUBLE THROW( SPDT)
- LED status indicates relay ON/OFF state.
- Standard TTL level logic controlled
- One normally closed and one normally opened contact
- Compatible with any 5V microcontroller
- Dimension: 43*17*17mm
- Weight: 150gm
10D OF 9-AXIS GY-87
- Power supply: DC 3.3V TO 5V
- 3 Axis Gyro+ Acceleration+ Magnetic field
- Air pressure module
- Inbuilt ultra-low noise linear LDO voltage regulator
- Inbuilt onboard filters. which reduce noise from motor and another high current
- Communication: I2C protocol
- Power LED
- Designed for 5V logic
- Can easily select two I2C addresses for MPU6050 by soldered jumper
- Dimension: 2.2*1.7cm
- Size: 6gm

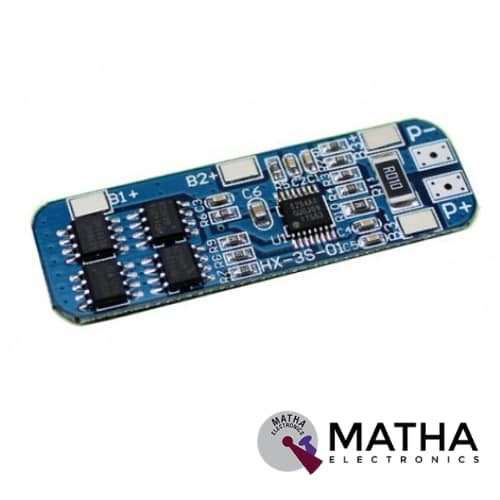

12V 18650 10A BMS Charger Li-ion Lithium Battery Protection Board Circuit Board 10.8V 11.1V 12.6V Electric
