5mm Flame Detection Sensor Module

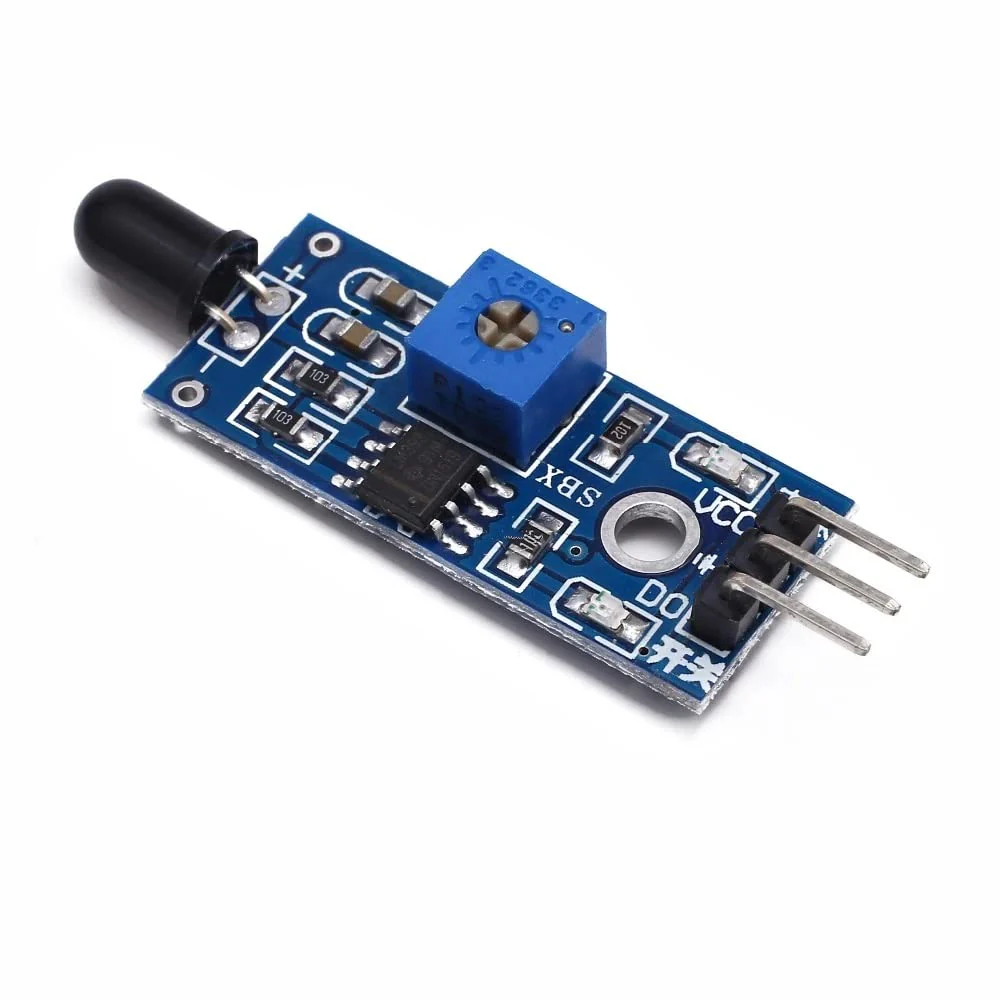

The 5mm Flame Detection Sensor Module is a compact and reliable sensor designed to detect the presence of flame or fire sources by sensing infrared light emitted from flames. Built with a high-sensitivity 5mm IR flame sensor, this module provides fast response and accurate detection, making it ideal for fire alarm systems, robotics, and safety applications.

The module features both digital and analog outputs, allowing seamless integration with Arduino, Raspberry Pi, PLCs, and other microcontrollers. An onboard potentiometer enables easy sensitivity adjustment, while the LED indicators provide real-time status feedback for power and flame detection.

⚙️ Key Features

• High-sensitivity 5mm IR flame sensor

• Detects flame wavelengths typically between 760–1100 nm

• Digital & Analog output support

• Adjustable sensitivity via onboard potentiometer

• Fast response and stable performance

• Compact PCB design for easy installation

• Power and detection status LED indicators

📌 Applications

• Fire detection and alarm systems

• Smart home safety projects

• Robotics and autonomous vehicles

• Industrial fire monitoring

• Arduino & IoT-based projects

• Educational and DIY electronics

🔧 Technical Specifications

• Sensor Type: 5mm IR Flame Sensor

• Operating Voltage: 3.3V – 5V DC

• Output Type: Digital (TTL) / Analog

• Detection Distance: Up to 80–100 cm (depends on flame size)

• Detection Angle: ~60°

• Response Time: < 15 ms
