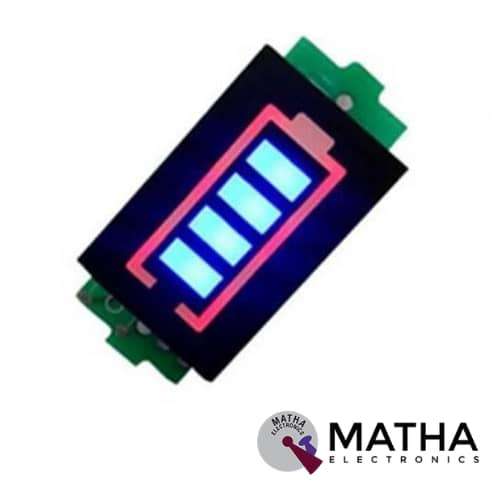

7.4 Lipo Battery Indicator Display Board

Original price was: ₹250.00.Current price is: ₹200.00. inc. GST

  • High reliability, low cost and compact size.
  • LED Flash for low charge warning.
  • Memory option to recall the quantity of electricity.
  • Specifically designed to monitor the power level of the battery while charging or discharging.
  • Provides instant battery status to permit effective management of the charging.
  • Display of 4 segments LED bar graph
  • Easy to install and operate.
Add to wishlist
Category: Tags: , , ,
Description

Instructions:

Connect the positive and negative terminals of the display board to the positive and negative terminals of the battery. The digital tube will show real-time battery power.

  • Displays the battery power parameters:(N is the number of battery cells).
  • Battery voltage is more than NX3.3V (1 unit of power will be bright).
  • Battery voltage is more than NX3.5V (2 unit power will be bright).
  • Battery voltage is more than NX3.7V (3 unit power will be bright).
  • Battery voltage is more than NX3.9V (4 unit power will be bright).

APPLICATIONS:

6/12/24/36/48V NiMH /Polymer lithium battery/Electric car battery/other Electric equipment.
