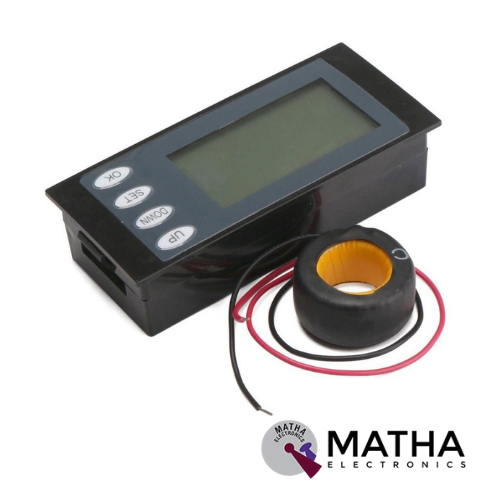

AC 100A LCD Digital Power Meter Kwh Time Watt Voltmeter Ammeter with Ct

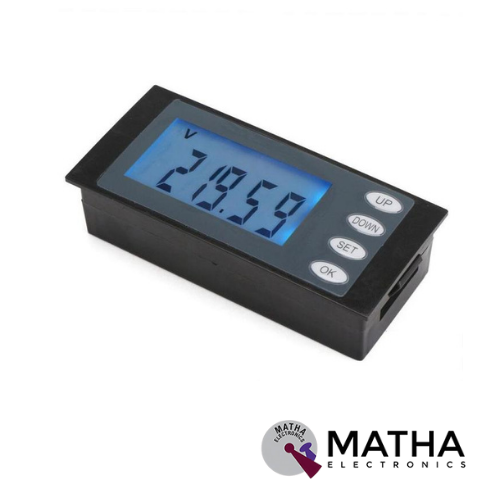

This AC 100A LCD Digital Power Meter Kwh Time Watt Voltmeter Ammeter with Ct is designed explicitly for electrical parameter measurement function. This module is capable of measuring voltage, current, active power, energy, and values are displayed via LCD. This power meter module features the Running time function which records the load accumulated operating time. And also the reset function of energy and running time. Moreover, this stores the data when power is off i.e. it stores the accumulated energy, running time, display items, the state of the backlight on or off. Here the Large screen LCD with backlight is used for displaying voltage, current, energy, active power, the accumulated running time.

This AC 100A LCD Digital Power operates at a voltage range of 80V ~270V AC at an operating frequency of 45~65 Hz. And also it test voltage at a range of 80v ~270v ac, energy at a measuring range of 0~9999.99kwh. Finally power at arrange of 0~22000W. Moreover, this power meter module operates at a rated power of 100A/22000W at a measuring accuracy of 0.1 grade.

Note:

• This power meter module is perfect for indoor use highly recommended not to use outdoor.
• The applied load should not exceed the rated power.
• A wiring order can’t be wrong.
