Autonics TCN4S-24R

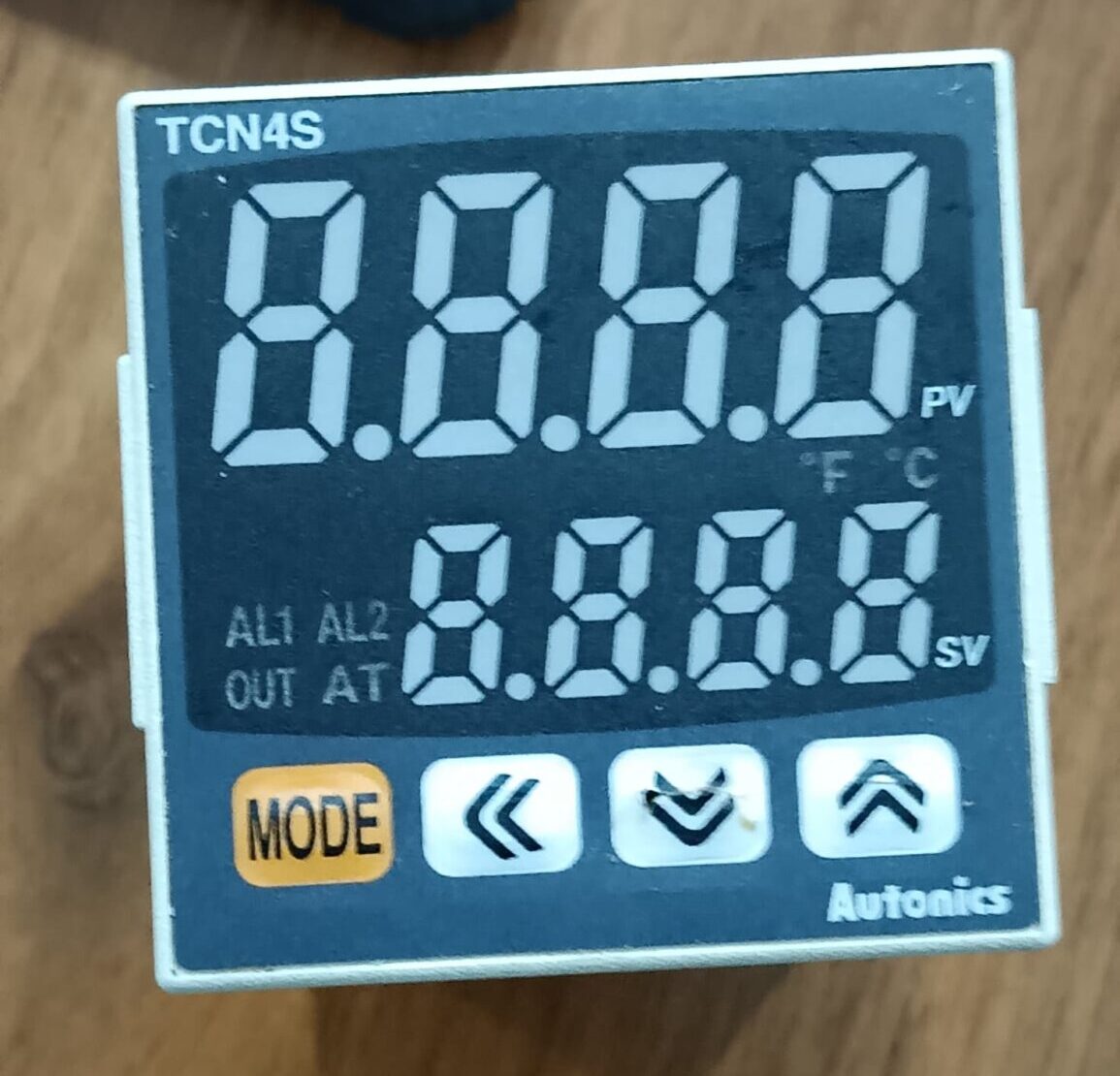

The Autonics TCN4S-24R is a compact and versatile temperature controller designed for precise thermal management in industrial applications. Housed in a 1/16 DIN panel-mount enclosure (48 × 48 mm), it offers dual 4-digit LED displays for simultaneous monitoring of Process Value (PV) and Set Value (SV).

Key Features

• Dual Display: Features a red PV display and a green SV display for clear, real-time temperature monitoring.

• PID Control: Utilizes advanced PID control algorithms with a 100 ms sampling rate for accurate temperature regulation.

• Multiple Input Types: Supports RTD (Pt100, Cu50) and various thermocouple types (K, J, L, T, R, S) for flexible sensor compatibility.

• Control Outputs: Offers relay output (250 VAC, 3A) and SSR drive output (12 VDC, 20 mA) for versatile control options.

• Alarm Outputs: Provides two alarm outputs (AL1, AL2) with relay contacts (250 VAC, 1A) for enhanced system monitoring.

• Power Supply: Operates on 100–240 VAC, 50/60 Hz, with a maximum power consumption of 5 VA.

• Compact Design: Dimensions of 48 × 48 × 70.5 mm allow for easy integration into space-constrained panels.

• Wide Operating Range: Functional in ambient temperatures from -10°C to 50°C.

⚙️ Control Methods

• ON/OFF Control

• Proportional (P)

• Proportional-Integral (PI)

• Proportional-Derivative (PD)

• Proportional-Integral-Derivative (PID)

These control methods offer flexibility to suit various application requirements.

🛠️ Applications

The TCN4S-24R is ideal for applications such as:

• Plastic molding and extrusion processes

• Packaging machinery

• Food processing equipment

• Laboratory incubators

• HVAC systems

• Battery charging stations
