BF-555 Gear / Geared Motor 6 RPM - High Torque
Original price was: ₹2,000.00.₹1,800.00Current price is: ₹1,800.00. inc. GST

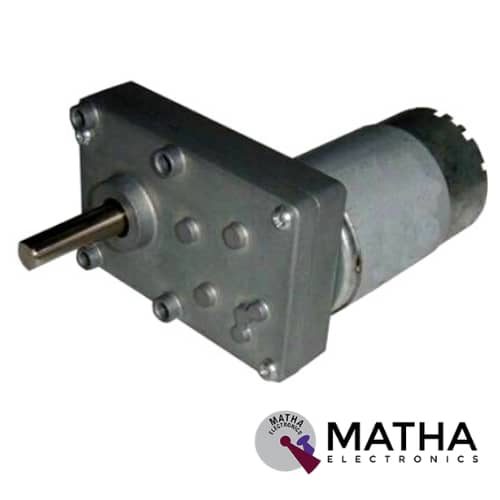

BF-555 Gear / Geared Motor 60 RPM - High Torque
Original price was: ₹2,000.00.₹1,800.00Current price is: ₹1,800.00. inc. GST
BF-555 Gear / Geared Motor 18 RPM – High Torque
Original price was: ₹2,000.00.₹1,800.00Current price is: ₹1,800.00. inc. GST
- Rated Voltage: 12v
- RPM: 18 (at 12v)
- Nominal Voltage: 12v
- No- Load Current: 220 mA
- Load Current: 800 mA
- Stall Current: 3 A
- Full (Stall) Load Torque: 60 kg-cm
- Weight: 500g Approx.
Description
BF-555 Gear / Geared Motor 18 RPM widely used for Industrial Applications. This geared motor is capable of Carrying torque greater as compared to other Geared Motors. It operates at a voltage range of 12V and consumes less current as well. Moreover, this motor offers higher durability and is able to work for hours at a time.
APPLICATIONS –
- Auto Shutter, Money Detector, Binding Machine, Automatic TV Rack, Packing Bank Note Machine, Towel Dispenser, Tissue Machine, Office equipment, Household Appliances, Automatic Actuator
Reviews (0)
