C&S TC1D2510 Power Contactor
C&S TC1D2510 Power Contactor
– 25A, 3-pole contactor for reliable motor and load control. Compact design, long life, and high performance for industrial use.

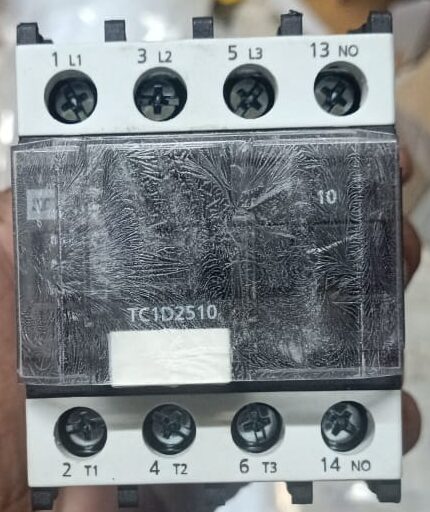

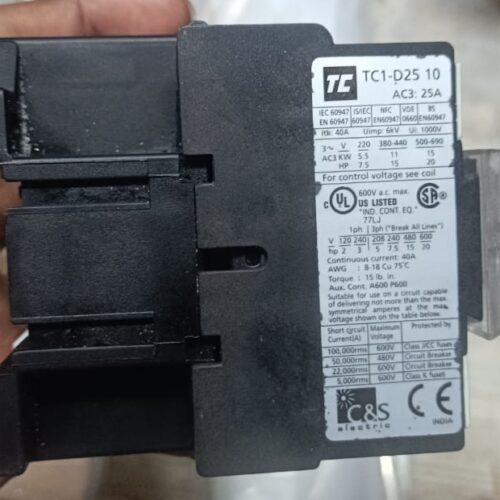

C&S TC1D2510 Power Contactor
The C&S TC1D2510 is a high-performance power contactor designed for reliable control of electric motors and other heavy-duty electrical loads. Built with advanced engineering and durable materials, this contactor ensures excellent electrical conductivity, long operational life, and consistent performance under demanding industrial conditions.
Key Features:
-
Model: TC1D2510
-
Brand: C&S Electric
-
Rated Current: 25A
-
Voltage Rating: 230V / 415V AC (varies by coil type)
-
Poles: 3 Pole
-
Auxiliary Contact: 1 NO (Normally Open)
-
Frequency: 50/60 Hz
-
Mounting Type: DIN rail or panel mounting
-
Conformance: IEC/EN 60947-4-1
-
Applications: Motor control, lighting, heating, and switching of resistive or inductive loads
Benefits:
-
Compact design for easy installation in control panels
-
High mechanical and electrical endurance
-
Low power consumption coil
-
Compatible with overload relays for motor protection
-
Reliable performance in harsh industrial environments
Typical Uses:
Ideal for industrial automation systems, motor starters, HVAC systems, control panels, and power distribution setups where dependable switching and control are essential.
