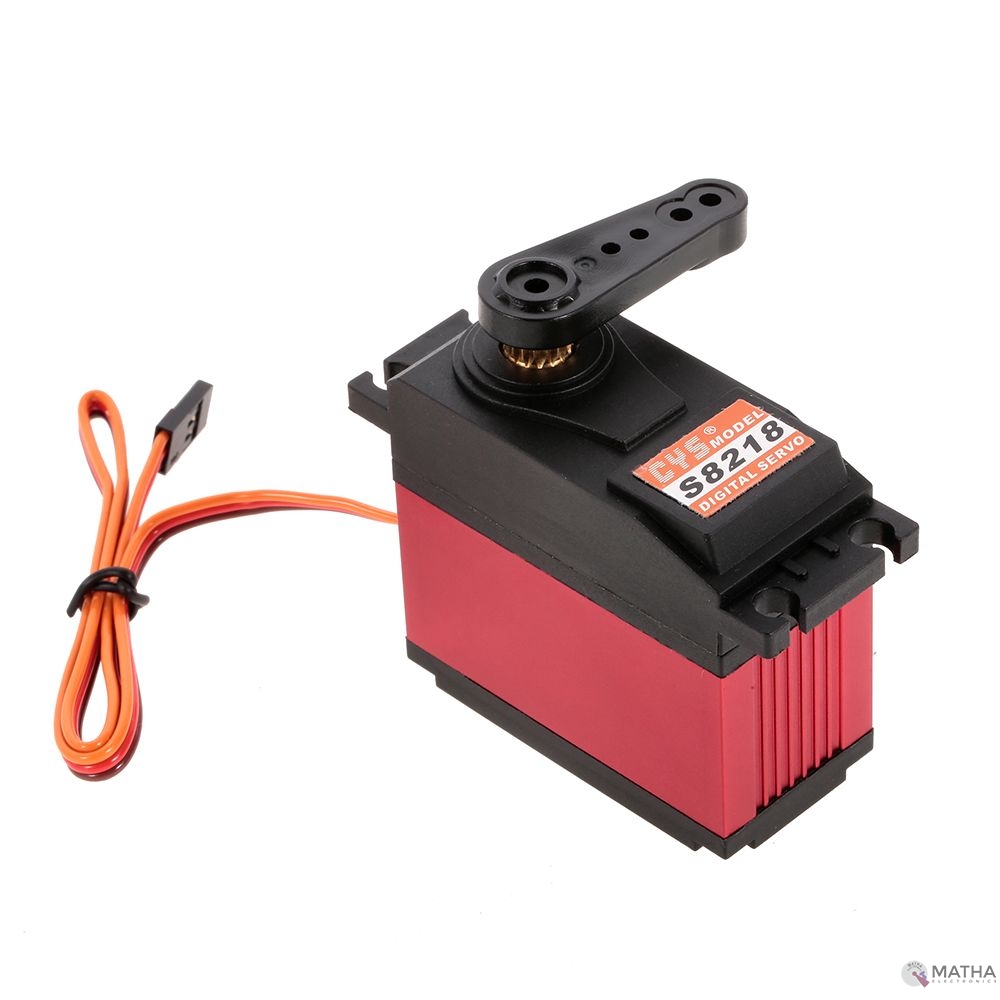

CYS-S8218 40 kg High Torque Digital Servo
Original price was: ₹5,700.00.₹5,500.00Current price is: ₹5,500.00. inc. GST
- Control System: Pulse Width Control 1500usec Neutral
- High precision metal gear
- Suit for 1/5 RC car
- Material: aluminum alloy
- Operating Voltage: 6.0~7.4Volts
- Operating Temperature Range: (-)10 to +50 degree C
- Operating Speed (6.0V): 0.20sec/60° at no load
- Operating Speed (7.4V): 0.18sec/60° at no load
- Stall Torque (6.0V): 36kg.cm
- Stall Torque (7.4V): 38kg.cm
- Operating Temperature Range: (-)10 to +50 degree C
- Dead Band Width: 4usec
- Motor Type: NdFeB motor
- Bearing Type: Dual Ball Bearing
- Connector wire: about 300mm
- Size: 59.5*29*55.2mm
- Weight: 164g
Description
The CYS-S8218 designed as a high-quality servo that is digital, fitted with metal gears. It is a compact-sized, lightweight, and high power output servo motor. This servo made of metal gear provides high torque and power. This high-quality aluminum alloy offer added strength and durability and makes the operation much more remarkable. This digital servo motor receives and processes PWM signals faster. It consists of an internal circuitry that provides high torque, holding power, and faster updates in response to external forces. Hence high performance and reliability of our servos have made it the ideal choice for many RC hobbyists. This CYS-S8218 digital servo designed explicitly for RC model vehicles. It operates at a voltage range of 6.0V to 7.2V at a speed rate of 0.20–0.22sec/60°at 6V and 0.18–0.2sec/60°at 7.2V.
This metal gear servo motor consists of a Double ball bearing with low noise, and fast heat dissipation. These Digital Servo manufactured within a tight sturdy plastic case which makes them water and dust-resistant. Therefore widely used in RC planes, Boats, and RC Monster Trucks, etc. This Motor is compatible with Futaba, JR, Sanwa, Hitec series.
PIN DESCRIPTION:
- Brown/Black: Negative
- Red: Positive
- Orange/White: Signal
