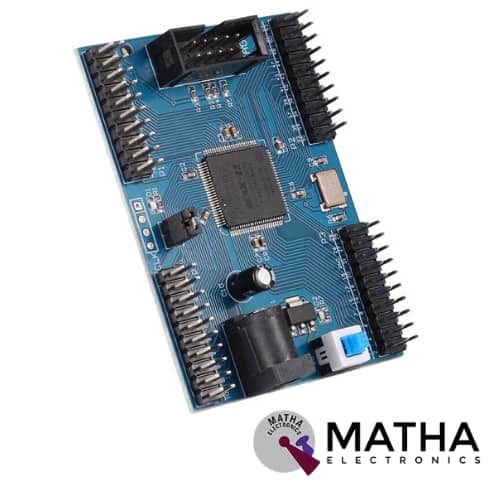

The Altera EP2C5T144 Altera Cyclone II FPGA Mini Development Board basically designed from the ALTERA MAX II family. This is the simplest and perfect way to embed an FPGA board into our project. The core of this development board is FPGA chip EP2C5T144. It is defined as a smaller system board used for a variety of tasks. Such as simple logic control, data acquisition, signal processing, mathematical calculations and more. This compact-sized FPGA development board based on the MAX II EP2C5T144 integrated circuit comes with 240 logic elements.
This development board is extremely convenient and straightforward to use featuring All the pins of the core board FPGA chip are all led out, and the board can be directly inserted into the application board. The 5V power supply board on the board was introduced through the socket and also introduced through the pin header.
Normally the MAX II devices offer high I/O counts, fast performance, and reliable fitting versus other CPLD architectures. Moreover, it features a MultiVolt core, a user flash memory (UFM) block, and enhanced in-system programmability (ISP). MAX II devices are designed to provide programmable solutions for applications such as bus bridging, I/O expansion, power-on reset (POR) and sequencing control, and device configuration control at an affordable rate and low power. Moreover, in this development board, all the I/Os are routed to standard header pins. Thus used to connect peripherals, memories, and other expansion modules.
