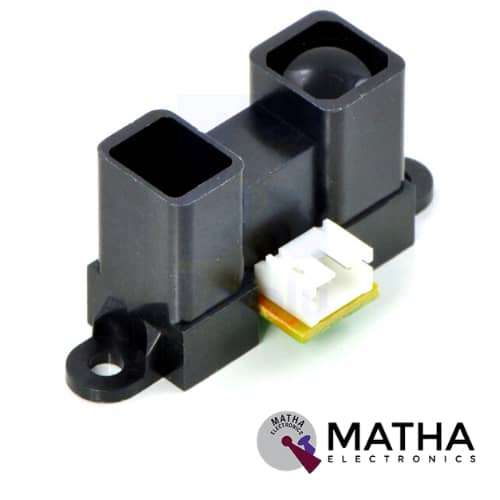

This GP2Y0A02YK0F SHARP distance sensor, one of the prominent sensors used for many projects. These sensors are used in applications that require accurate distance measurements in a short range. Therefore it detects objects within the range of 20cm to 150cm. This sensor provides a distance measuring Sensor Unit, consisting of an integrated combination of PSD (position sensitive detector), IRED, and a signal processing circuit. As they adopt the triangulation method, the variety of the reflectivity of objects, the environmental temperature, and the operating duration are not easily influenced by distance detection. Thus the output of the sensor is an analogue voltage corresponding to the detection distance. So this sensor also functions as a proximity sensor.
It senses objects and outputs an analogue voltage corresponding to the distance between the sensor and the object. As a result, an analogue voltage is fed to an  ADC for an Arduino/Raspberry Pi or a microcontroller. Or the output provided to a comparator for threshold detection. Moreover, this sharp sensor has applications in obstacle avoidance or motion sensing to your robot or any other project.
The GP2Y0A02YK0F consists of a 3-pin JST PH connector that works with our 3-pin JST PH cables. These cables consist of 3-pin JST connectors attached to one end. And equipped with pre-crimped male pins, pre-crimped female pins, and unterminated wires on the other end. In order to stabilize the power supply line, highly recommended to insert a by-pass capacitor of 10μF or more between Vcc and GND.
Applications
- Touch-less switch (Sanitary equipment, Control of illumination, etc. )
- Sensor for energy saving (ATM, Copier, Vending machine, Laptop computer, LCD monitor)
- Amusement equipment (Robot, Arcade game machine)
