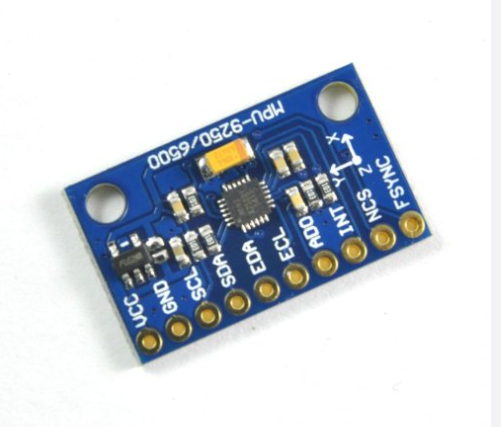

GY-9250 sensor module
The GY-9250 is a 9-axis motion sensor module with accelerometer, gyroscope, and magnetometer for orientation, navigation, and robotics projects.
Description
The GY-9250 Sensor Module is a high-performance 9-axis motion tracking module that integrates a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer into a single compact board. Based on the MPU9250 sensor, it provides accurate motion, orientation, and heading data for advanced embedded applications.
The module supports I²C and SPI communication interfaces, making it easy to interface with popular microcontrollers such as Arduino, ESP32, STM32, and Raspberry Pi. With built-in Digital Motion Processing (DMP) support, the GY-9250 enables efficient sensor fusion for precise orientation and movement tracking.
The GY-9250 module is widely used in drones, robotics, navigation systems, wearable devices, virtual reality, and IoT motion-sensing applications. Its compact size, low power consumption, and high accuracy make it ideal for both learning and professional development projects.
