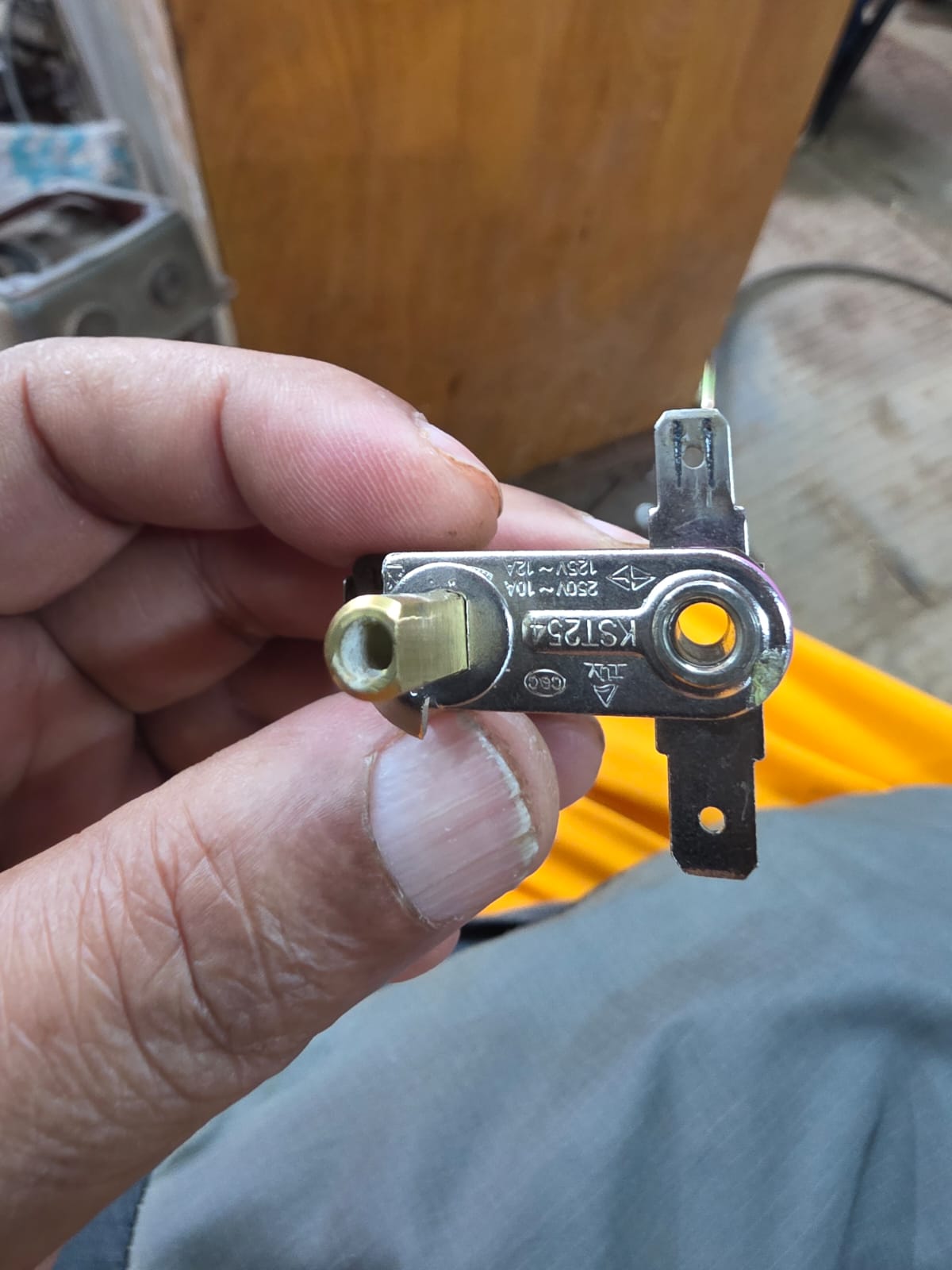

KST254 bimetal thermostat

The KST254 series is an adjustable bimetallic thermostat widely used in household appliances like electric irons, toaster ovens, deep fryers, and electric kettles. Manufactured by Zhejiang Jiatai Electrical Appliance Co., Ltd., this thermostat is known for its precision, durability, and versatility.

🔧 Key Features

• Adjustable Temperature Range: 60°C to 250°C, allowing precise control over appliance heating.

• Temperature Control Precision: ±10°C, ensuring consistent performance.

• Snap-Action Mechanism: Utilizes a bimetallic strip that deforms at set temperatures to open or close the electrical circuit, providing rapid and reliable switching.

• High Durability: Designed for 100,000+ operating cycles, ensuring long-term reliability.

• Safety Features: Incorporates insulation resistance greater than 100MΩ and contact resistance less than 50MΩ, enhancing user safety.

⚙️ Specifications

• Voltage Ratings: 125V AC 15A (UL & CUL), 250V AC 10A/16A (TUV), 250V AC 10A (CQC).

• Max Ambient Temperature: T250°C.

• Terminal Types: C1–C8 options available.

• Shaft Rotation Angles: 120° to 310°, customizable based on application requirements.

• Certifications: UL, CUL, TUV, CQC, RoHS compliant.

🛠️ Applications

The KST254 thermostat is suitable for various appliances:

• Electric Irons: Ensures consistent heating for optimal ironing performance.

• Toaster Ovens: Provides precise temperature control for even cooking.

• Deep Fryers: Maintains desired oil temperatures for safe frying.

• Electric Kettles: Regulates water temperature for efficient boiling.
