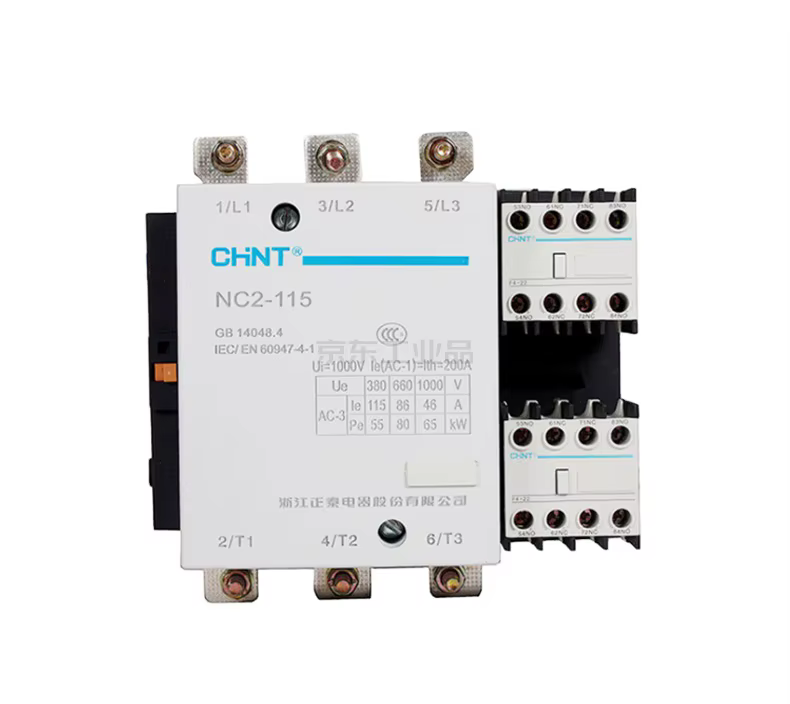

NC2 Series Contactor — 115A to 800A (AC / DC)
NC2 Series Contactors (115A–800A) are heavy-duty industrial contactors designed for reliable motor control and power switching. Available in AC and DC coil options, they support currents up to 800A and voltages up to 690V. Built for high performance with long electrical life, auxiliary contact options, and compatibility with overload relays for safe and efficient operation. Ideal for motors, pumps, compressors, and industrial automation systems.
Description
NC2 Series Contactor — 115A to 800A (AC / DC)
Heavy-duty industrial contactors designed for motor control, power switching, and automation applications. Suitable for AC and DC coil versions.
Key Features:
-
Rated current: 115A, 150A, 185A, 225A, 265A, 330A, 400A, 500A, 630A, 800A
-
Rated voltage: up to 690V (AC 50/60Hz)
-
Coil options: AC (110V–380V) / DC (48V–110V)
-
Utilization Category: AC-3 / AC-4
-
Auxiliary contacts available (NO/NC combinations)
-
Compatible with NR2 overload relays
-
Suitable for DOL starters and reversing starters
Build & Performance:
-
Long mechanical life
-
High electrical endurance
-
Heavy-duty terminals for large cable sizes
-
Conforms to IEC 60947-4-1
Applications:
Motor control, industrial automation, pumps, compressors, HVAC, and power distribution.
