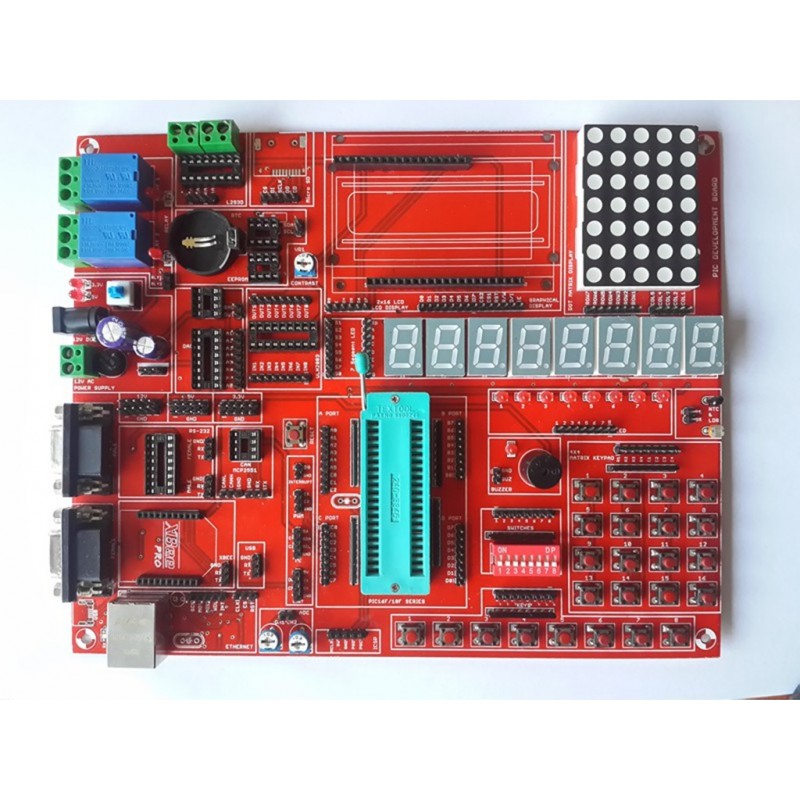

PIC16F877A ADVANCED TRAINER KIT
PIC16F877A advanced trainer kit with LCD, ADC, RS232, relays, and I/O modules for embedded system learning.
Description
The PIC16F877A Advanced Trainer Kit is a comprehensive development and learning platform designed for advanced PIC microcontroller programming and embedded system applications. Built around the popular PIC16F877A (40-pin) microcontroller, the kit includes 16×2 LCD display, ADC inputs, LEDs, switches, relays, serial communication (RS232), and expansion headers for interfacing external modules and sensors. It enables hands-on practice with ADC, timers, interrupts, communication protocols, and real-world control applications. Ideal for engineering students, educators, training institutes, and hobbyists, this advanced trainer kit is perfect for labs, academic projects, and professional embedded development.
