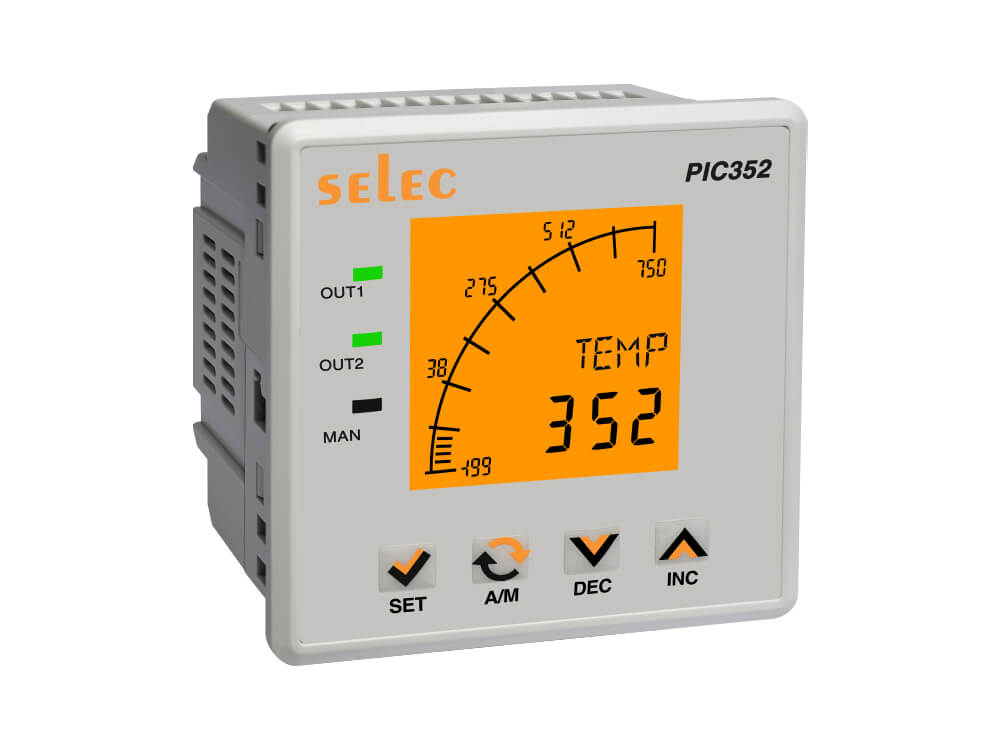

Selec PIC352 Precision process Indicator
Selec PIC352 is a high-accuracy process indicator with a 4-digit LCD and configurable LED backlight. It supports thermocouples, RTDs, and analog inputs, offering dual relay outputs, 4–20 mA/0–10 V analog output, and RS485 MODBUS RTU communication. Panel-mountable (96×96 mm), IP65-rated, with ±0.1% measurement accuracy, it’s ideal for precise industrial process monitoring and control.
Description
Selec PIC352 Precision process Indicator
The Selec PIC352 Precision Process Indicator is a versatile and high-performance device designed for accurate monitoring and control of various industrial processes.
🖥️ Display & Interface
-
Display: 4-digit dual LCD with graphical bar representation.
-
Backlight: Selectable red, orange, green, or white LED backlight.
-
Annunciators: LED indicators for OUT1, OUT2, and MAN (manual) modes.
🔌 Input & Output Capabilities
-
Universal Inputs: Supports a wide range of sensors, including thermocouples (J, K, T, R, S, C, E, B, N, L, U, W, Platinel II), RTDs (PT100, PT1000), and analog signals (0–5V, 0–10V, 0/4–20mA).
-
Analog Output: Retransmission output available in 4–20mA or 0–10V DC.
-
Digital Inputs: 4 digital inputs for additional control or monitoring functions.
-
Relay Outputs: Two relay outputs (10A @ 250VAC or 28VDC) with programmable alarm modes: high, low, band, and serr.
