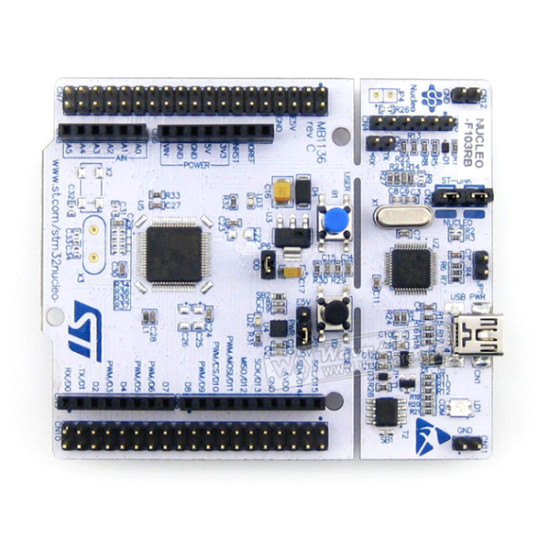

STMicroelectronics NUCLEO-F103RB development board
The NUCLEO-F103RB is an STM32 ARM Cortex-M3 development board with Arduino-compatible headers and onboard ST-LINK debugger for rapid prototyping.
Description
The STMicroelectronics NUCLEO-F103RB Development Board is a versatile and compact platform designed for rapid prototyping and development with STM32 microcontrollers. It features the STM32F103RB MCU, a 32-bit ARM Cortex-M3 processor running at 72 MHz with 128 KB Flash memory and 20 KB SRAM, offering excellent performance for embedded projects.
This development board provides Arduino Uno R3-compatible headers, ST morpho expansion headers, and USB interface, enabling easy connection to sensors, actuators, and shields. It includes an onboard ST-LINK/V2-1 debugger/programmer, eliminating the need for external programming tools.
The NUCLEO-F103RB is fully supported by STM32CubeIDE, Keil, and IAR Embedded Workbench, making it ideal for IoT projects, robotics, industrial automation, and educational training. Its compact design and extensive software support make it perfect for beginners and professionals alike.
