47nf 100V DC Green Polyester Capacitor
- Capacitance: 47nf
- Voltage Rating DC: 100 V
- Color: Green
- Pitch: 6mm
- Tolerance: +/-10%
- Mounting: THT
- Leakage Current: 3 uA
- Operating Temperature: -40~85 C
- Non-inductive, epoxy DIP coated, high moisture resistance.
- The dissipation factor is normally low and it is stable against high frequency and change of temperature.
- Recommended for high-frequency circuits like an s-curve compensating circuit.
- High reliability because of its excellent Self-Healing performance.

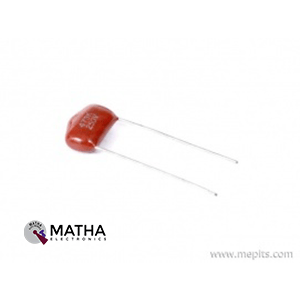

47nf 250V DC Polyester Capacitor
- Capacitance: 47nf
- Voltage Rating DC: 250 V
- Tolerance: +/-5%
- Mounting: THT
- Leakage Current: 3 uA
- Dimensions:31*6*2.5 mm
- Operating Temperature: -40~85 C
- Lead Spacing: 7mm
- Lead Diameter : 0.5mm
- Non-inductive, epoxy DIP coated, high moisture resistance.
- The dissipation factor is normally low and it is stable against high frequency and change of temperature.
- Recommended for high-frequency circuits like an s-curve compensating circuit.
- High reliability because of its excellent Self-Healing performance
47nf 400V DC Green Polyester Capacitor
- Capacitance: 47nf
- Voltage Rating DC: 400 V
- Color: Green
- Tolerance: +/-10%
- Mounting: THT
- Leakage Current: 3 uA
- Operating Temperature: -40~85 C
- Non-inductive, epoxy DIP coated, high moisture resistance.
- The dissipation factor is normally low and it is stable against high frequency and change of temperature.
- Recommended for high-frequency circuits like an s-curve compensating circuit.
- High reliability because of its excellent Self-Healing performance.
47nf 63V 5mm Pitch Box Capacitor
- Capacitance: 47nf
- Voltage Rating: 63V
- Pitch: 5mm
- Dielectric Type: Double Metallized PP
- Capacitance Tolerance: ± 5%
- Capacitor Case Style: Radial Box
- Capacitor Terminals: Radial Leaded
- Operating Temperature Min: -55°C
- Operating Temperature Max: 105°C
- Automotive Qualification Standard
- High Accuracy, Long-Life Polyester Film Capacitor
- Low Leakage
- Easy Mounting
47uf 160V DC Electrolytic Capacitor

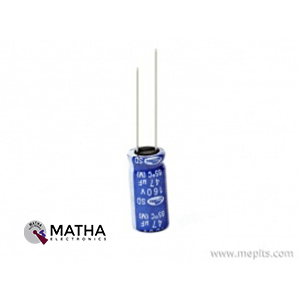

47uf 160V Samwha DC Electrolytic Capacitor

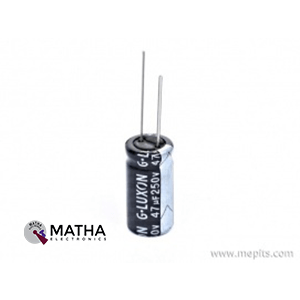

47uf 250V DC Electrolytic Capacitor
47uf 63V Caps DC Electrolytic Capacitor

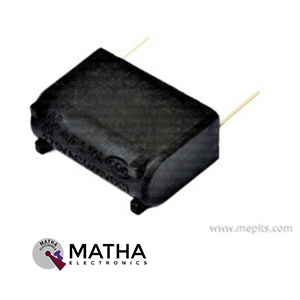

4UF 275VAC 400VDC MKP-X2 Induction cooker capacitor
- Capacitance: 4uf
- Voltage Rating: 400VDC - 275VAC
- Dielectric Type: Double Metallized PP
- Capacitance Tolerance: ± 5%
- Capacitor Case Style: Radial Box
- Dissipation Factor: ≤0.0008 at 10kHz
- Capacitor Terminals: Radial Leaded
- Operating Temperature Min: -55°C
- Operating Temperature Max: 105°C
- Automotive Qualification Standard
- High Accuracy, Long-Life Polyester Film Capacitor
- Low Leakage
- Easy Mounting
- Metallised polypropylene( MPP) film capacitor
- Non-inductive structure
- Automatic production to ensure stable quality
- Specially for the high frequency oscillating loop[circuit of induction heating device].
560pf 2KV Disc Capacitor
560uf 450V DC Electrolytic Capacitor

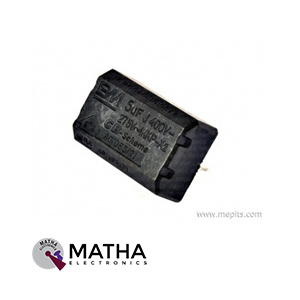

5uf J 400V-275V AC Induction Cooker Capacitor
- Capacitance: 5uf
- Voltage Rating: 400V - 275 VAC
- Dielectric Type: polypropylene film dielectric
- Capacitance Tolerance: ± 5%
- Capacitor Case Style: Radial Box
- High Accuracy, Metallized Polypropylene Film Capacitor
- Low Leakage
- Easy Mounting
- Metallised polypropylene( MPP) film capacitor
- Non-inductive structure
- Automatic production to ensure stable quality
- Specially for the high frequency oscillating loop[circuit of induction heating device].
