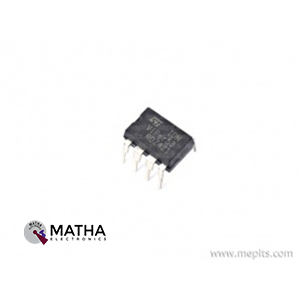

VIPER53 Off-Line Primary Switch IC
- Drain Source voltage: 620V
- Off State Drain Current: 150µA
- Static drain-source ON state resistance: 0.9Ω
- Power dissipation: 30W
- No. of outputs: 1
- Supply Voltage: 0 to 19V
- Off-line primary switch
- Adjustable Switching Frequency up to 300KHz
- High voltage start-up current source
- Over temperature protection
- Package: DIP-8
VNH2SP30 – Monster Moto Shield 30A Mini Stepper Motor Driver
- Driver Model: Monster Moto Shield VNH2SP30
- Operating Voltage: 12V to 16V DC
- Maximum current rating: 30 A
- Continuous Current: 14 A
- Number of Channels: 1
- MOSFET on-resistance: 19 m (per leg)
- Maximum PWM frequency: 20 kHz
- Current sensing available to Arduino analog pin
- Thermal Shutdown
- Under voltage and Overvoltage shutdown.
- Dimensions: 55 x 28 x 12mm
- Weight: 15gm
VR4J Diode
Water Float Sensor P43

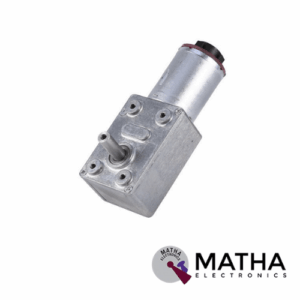

Worm Gear Box Reduction Motor 12V 10rpm 10 kg-cm Torque – WGM370128500-828K
Worm Gear Box Reduction Motor 12V 110rpm 30 kg-cm Torque – WGM555127500-68K
- Operating Voltage: 12.V DC
- Rated Current: 1.1 A
- Rated Base Motor RPM: 7500.
- Rated Speed: 110RPM
- Rated Torque: 30kg-cm
- Operating Temperature: (°C) - -40 °C ～ +100°C.
- Relative Humidity(RH): 20% ～ 85% .
- Housing Material: Metal.
- Shaft Type: D-type.
- Motor Height: 27mm
- Motor Width: 40mm.
- Motor Length:Â 115mm
- Shaft Diameter: 8mm
- Shaft Length: 15mm
- Shaft Type: D-type. Motor
Worm Gear Box Reduction Motor 12V 11rpm 150 kg-cm Torque – WGM775126000-548K
- Product Name: Worm Gear Motor
- Rated Voltage: DC 12V
- No-load Speed: 15RPM
- Rated Speed: 11RPM
- Rated Current: 15A
- Rated Torque: 150KG.cm
- Output Power: 90W
- Reduce Ratio: 1:80
- Shaft Bore Diameter: 14mm
- Dimension:255*96*115 mm
- Commutation: Brush
- Reversible: Yes
- Lifespan: more than 2000 hours
- Net Weight: 3.98KG
Worm Gear Box Reduction Motor 12V 175rpm 30 kg-cm Torque – WGM5551212000-68K
Worm Gear Box Reduction Motor 12V 190rpm 90 kg-cm Torque – WGM775127500-40K
- Product Name: Worm Gear Motor
- Rated Voltage: DC 12V
- No-load Speed: 15RPM
- Rated Speed: 190RPM
- Rated Current: 15A
- Rated Torque: 90KG.cm
- Output Power: 90W
- Reduce Ratio: 1:80
- Shaft Bore Diameter: 14mm
- Dimension:255*96*115 mm
- Commutation: Brush
- Reversible: Yes
- Lifespan: more than 2000 hours
- Net Weight: 3.98KG

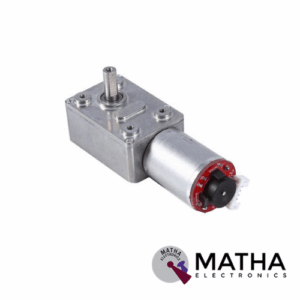

Worm Gear Box Reduction Motor 12V 350rpm 22 kg-cm Torque – WGM5551212000-34K
Worm Gear Box Reduction Motor 12V 85rpm 6 kg-cm Torque – WGM370128500-100K
- Motor Type: DC Carbon Brush Motor.
- Gear Ratio:100: 1.
- Operating Voltage: 12.V DC
- Rated Current: 0.220A
- Rated Base Motor RPM: 8500.
- Rated Speed: 85RPM
- Rated Torque: 6kg-cm
- Operating Temperature: (°C) - -40 °C ～ +100°C.
- Relative Humidity(RH): 20% ～ 85% .
- Housing Material: Metal.
- Shaft Type: D-type.
- Motor Height: 25mm
- Motor Width: 32mm.
- Motor Length:Â 81mm
- Shaft Diameter: 6mm
- Shaft Length: 13mm
- Shaft Type: D-type. Motor
- Weight(gm): 170.
