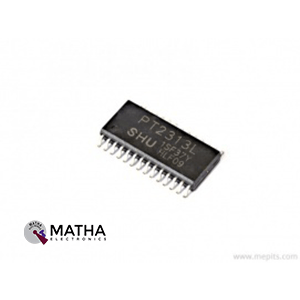

PT2313 4-Channel Audio Processor SMD IC
- 4-Channel Audio Processor IC
- CMOS Technology
- Least External Components
- Treble and Bass Control
- Loudness Function
- 3 Stereo Inputs with Selectable Input Gain
- Input/output for External Noise Reduction System/Equalizer
- 4 Independent Speaker Controls for Fader and Balance
- Independent Mute Function
- Volume Control in 1.25 dB/step
- Low Distortion
- Low Noise and DC Stepping
- Controlled by I2C Bus Micro-Processor Interface
- Pin-to-pin Compatible with TDA7313
- Package: SO-28
PT2315 2-Channel Audio Processor SMD IC
- 2-Channel Audio Processor IC
- CMOS Technology
- Least External Components
- Treble and Bass Control
- Loudness Function
- Input/output for External Noise Reduction System/Equalizer
- 2 Independent Speaker Controls for Balance Function
- Independent Mute Function
- Volume Control in 1.25 dB/step
- Low Distortion
- Low Noise and DC Stepping
- Controlled by I2C Bus Micro-Processor Interface
- Pin-to-pin Compatible with TDA7315
- Package:SO-20
PT2322 6-Channel Audio Processor SMD IC
- 6-Channel Audio Processor IC
- Very Low Power Consumption (DC=9V)
- I2C Bus Control
- 6-Channel Individual Input
- 6-Channel Master Volume Control: 0 to -79 dB (1 dB/step)
- 6-Channel Individual Output TRIM Volume Control: 0 to -15 dB (1dB/step)
- 3-Band Tone Control (Treble, Middle, Bass): + 14dB , 2dB/step
- Mute Function
- 3D Effect Function
- Tone Defeat Function
- Low Noise
- High Channel Separation
- Low Harmonic Distortion
- Least External Components
- Package: SO-28
