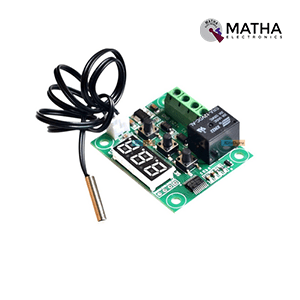

XH-W1209 Mini thermostat Temperature controller is an affordable 12V Temperature controller with a 7-segment display and 3 switch keypad for setting temperature and other parameters. The module provides an NTC thermistor temperature sensing and has an accuracy of 0.1 C. This module is also known as an incubator sensor module. Because they are widely used in egg hatching applications and also to control temperature power in most types of electrical devices based on the temperature sensed by the NTC temperature sensor. The sensor can display the current temperature in degrees Centigrade via 3 digits seven-segment display and the current relay state by an on-board LED. This temperature controller can measure a temperature in the range of -50~+110 Degree Centigrade.
W1209 features an inbuilt embedded micro-controller that makes programming quite simple. Hence, the various parameters in the module configured using the three switches including ON and OFF trigger temperatures. Moreover, the W1209 Mini Thermostat Temperature Controller Switch operates at voltages up to a maximum of 240V AC at 5A or 14V DC at 10A to power on. Meanwhile, the onboard large and clear LED display offers better readability.
Parameter Setting (P0~P8):
- P0: Cooling / Heating mode
- P1: Â Backlash Setting
- P2: Highest Range Setting
- P3: Lowest Range Setting
- P4: Temperature Calibration
- P5: Delay Start Time
- P6: High-Temperature Alarm
- P7: Data Lock Switch
- P8: Restore Factory Settings
APPLICATIONS
- Domestic freezer
- Water tank
- Refrigerator
- Industrial chiller
- Boiler
