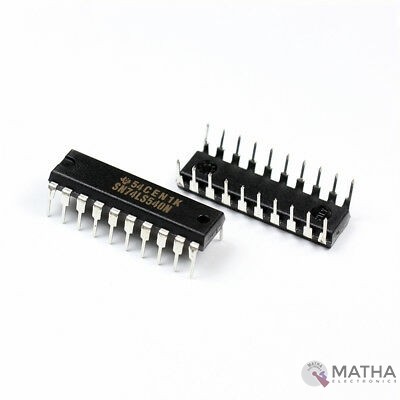

The 74LS540 designed from the 74XXYY IC series is 8-bit octal buffers and line drivers with the same functions as the LS240 and LS241 ICs. These 74LS540 IC used as memory address drivers, clock drivers, and bus-oriented transmitters/receivers. These devices designed specifically to function as output ports for the microprocessors. Hence allowing ease of layout and greater PC board density. 74LS540 High-Speed CMOS Driver IC offers a wide range of working voltage, a wide range of working conditions. And also can be directly interfaced with CMOS, NMOS, and TTL. This compact-sized 74LS540 IC Â has a much faster speed which makes it reliable in every kind of device & other high speed, low noise applications.
A buffer designed basically as a logic gate that passes its input, unchanged, to its output. The main function of a buffer is to regenerate the input, usually using a strong high and a strong low. A buffer has one input and one output, in which its output is always equal to its input. Buffers are also used to increase the propagation delay of circuits by driving the large capacitive loads. Whereas the Line drivers designed as a special type of buffer that has the ability to drive a transmission line or cable that may be quite long. They also have the ability to adapt the input logic format to the specific line driving standard. Â These IC generally used to isolate other gates or circuit stages from each other. Thereby preventing the impedance of one circuit from affecting the impedance of another circuit.
