Antenna GSM-6DBI (Spring)
Original price was: ₹375.00.₹325.00Current price is: ₹325.00. inc. GST

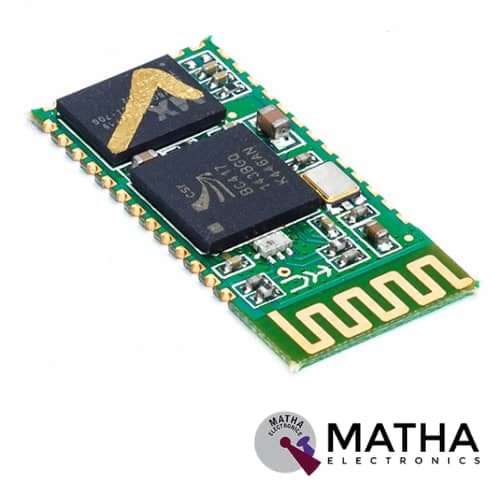

HC-05 Bluetooth Module
Original price was: ₹375.00.₹350.00Current price is: ₹350.00. inc. GST
Antenna GSM-2DBI (Spring)
Original price was: ₹200.00.₹175.00Current price is: ₹175.00. inc. GST
- Gain: 2dBi
- Lower VSWR ≤ 2.0
- Signal stability.
- Cable Length: 3m
- Antenna Height: 28cm
- Polarization Vertical Impedance- 50 Ω
- Material: Metal
- Colour: Black
- Operation Temperature: -30~60 degree C
- Humidity: 5% to 95%
- Connector type: SMA Male Plug
- Compact size.
- Good appearance.
- Strong adaptability of environment.
- Package includes:
Description
This antenna designed explicitly for GSM GPRS 900/1800MHz system of communication terminal system. The antenna is structure compact size and highly reliable makes it convenient for easy installation. Commonly used in GSM repeater, GSM sensor, GSM module & GSM modems and is compatible with SIM900A and SIM808.
FREQUENCY RANGE
- 800MHz
- 960MHz
- 1780MHz
- 1930MHz
This GSM antenna 6db majorly used in GSM repeater, GSM sensor, GSM module GSM modems. Since this magnetic mount antenna requires a ground plane, it should be mounted on metal. The antenna’s magnetic base is safely attached to the metal base.
Reviews (0)
Shipping & Delivery
Related products
3DR Single TTL MINI Radio Telemetry 433MHz 250mW for PIXHAWK and APM
- MAVLink protocol framing status documents.
- Frequency modulation and Spread Spectrum (FHSS).
- Self-adaption to time-division multiplexing.
- Support LBT and AFA.
- Configurable duty cycle.
- Built-in error correcting code(up to 25% data bit error).
- AT command configures data transmission.
- RT command remote control data transmission.
- Interchangeable air and ground 433MHz modules.
- Micro-USB port.
- 6-position Molex connector.
- 250mW maximum output power (adjustable).
- SMA connector.
- 2-way full-duplex communication through adaptive TDM.
- UART interface.
- Transparent serial link.
- Open-source SIK firmware.
- Configurable through *Mission Planner and *APM Planner.
- Featuring a SiLabs Si1000 RF Microcontroller
- Support OTG of Android Cellphone and Compute
- Based on the Hope RF HM-TRP radio Module,
A6 GSM GPRS Module Quad Band SMS Voice
- Working voltage: 3.3V-4.2V
- Power voltage> 3.4V
- Standby average current: 3mA
- Working temperature: -30 to + 80
- Supports Quad-band: GSM850, EGSM900, DCS1800 and PCS1900
- Connect onto any global GSM network with any 2G SIM
- Make and receive voice calls using an external 8Ω speaker & electret microphone
- Facility to connect 4-pole TRRS mic and headset
- 8V UART port level – compatible with Arduino, Raspberry-Pi
- Supports serial-based AT Command Set
- Accepts Micro SIM Card
- Send and receive voice calls and SMS messages
- Class 10 GPRS with 85.6Kbps download speed and 42.8Kbps upload speed
- Dimensions: 22.8 × 16.8 × 2.5mm
ANTENNA WIFI
Antenna Specifications:
- Color: Black
- Radiation: Omni-directional
- Gain:8dBi
- Frequency Range(MHz): 2400-2500, 5150-5850MHz
- Connector Type: RP-SMA Male (Hole)
- Angle Adjustable: 90° 135° 180°
- Dimension: 16cm/ 6.3”(Unbend) / 13.5cm/ 5.31”(Bend)
- Wight: 13.5g / 0.48 oz per antenna
- Color: Black & Gold
- Length: 15cm / 5.9''
- Wight:4.4g / 0.17 oz per pigtail cable
- Connector Type: U.FL/ IPEX to RP-SMA Female
GSM/GPRS/GPS SIM 808 IOT Modem
- Input voltage: 5V-12V DC Operation
- Working temperature:-40°C ~85°C
- Supply voltage range 3.4 ~ 4.4V
- Low power consumption
- Operation temperature:-40°C ~85°C
- Power supply: 3.4V ~ 4.4V
- Charging: Supports charging control for Li-Ion battery
- Quad-band 850/900/1800/1900MHz
- GPRS multi-slot class 12/10
- GPRS mobile station class B
- Compliant to GSM phase 2/2+ – Class 4 (2 W @ 850/900MHz) – Class 1 (1 W @ 1800/1900MHz)
- Dimensions: 24*24*2.6mm
- Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
- Modem with Impedance Matching Layout.
- Fully Automatic Pick and Place Machine.
- On-board SMA connector for GSM antenna
- On-board UFL connector for External GSM Antenna
- On-board SMA & UFL connector for GPS Antenna
- Option to Connect Patch antenna or Active Antenna for GPS
- Onboard 3V3 Voltage regulator for GPS External Active Antenna
- Onboard Micro USB Connector for module firmware updation
- Automatic and Manual Start option (SMD Switch has provided for Manual Startup)
- LM39302 linear voltage regulator is used for provides a low-dropout, high-current output
- Onboard RMC connector for power supply
- Onboard RMC connector for audio interface
- On-board Connector for connecting 3.7V Li-Po battery
- Zener diode is used to prevent Accidental over voltage
- On board TXB0104 voltage level translator IC which helps us to interface with 2.8V to 5V microcontrollers’
- On board LED for power indication, Network and status.
- Header option for interfacing ADC, I2c,PWM
- Four 3MM Mounting Holes are Provided
- Flap Type SIM Card Connector
- On-board Anti-Static Protection IC
- Easy to Make and receive voice calls, Send and receive SMS messages
![RF 433Mhz RX TX Encoder Decoder board [HT12E & HT12D IC]](https://www.mathaelectronics.com/wp-content/uploads/2021/02/ROBOSOFT-LABS-RF-RX-TX-ENCODER-DECODER-MODULE-BOARD-SKURL5037-228x228-1.jpg)
RF 433Mhz RX TX Encoder Decoder board [HT12E & HT12D IC]
- Operating voltage: 3.6~5.5v ( 5v recommended),
- Receiver sensitivity as high as -110dbm,
- Compatible with HT12E and HT12D,
- Low power and good range.
- High-frequency stability and low coherence and interference
- Easy interfacing with the RF modules, using the female headers for placing the modules.
- Breakout pins for connecting to the microcontroller.
- DIP Switch for Address Selection (when multiple modules are used at one location)
- Status LED for valid transmit.
- Supports both ASK, FSK RF modules
- Small size, high quality PCB.
RF Transmitter Receiver Module 315MHz Wireless
Transmitter Module
- Operating voltage: 3V to 12V
- Operating frequency: 433.92MHz; 315MHz
- Standby current: 0mA
- Operating current: 20mA to 28mA
- Transmission distance: >500m (open to receiving plate sensitivity at -103dBm distance of more than)
- Output power: 16dBm (40mW)
- Data transfer rate: <10Kbps
- Modulation mode: OOK (amplitude modulation)
- Operating temperature: -10℃ to +70℃
-
- Operating voltage: 5V DC
- Static current:4mA
- Receiver frequency: 433.92MHz; 315MHz
- Sensitivity: -105dB
- External antenna: 32CM single wire spiral
- No of pins: 4
