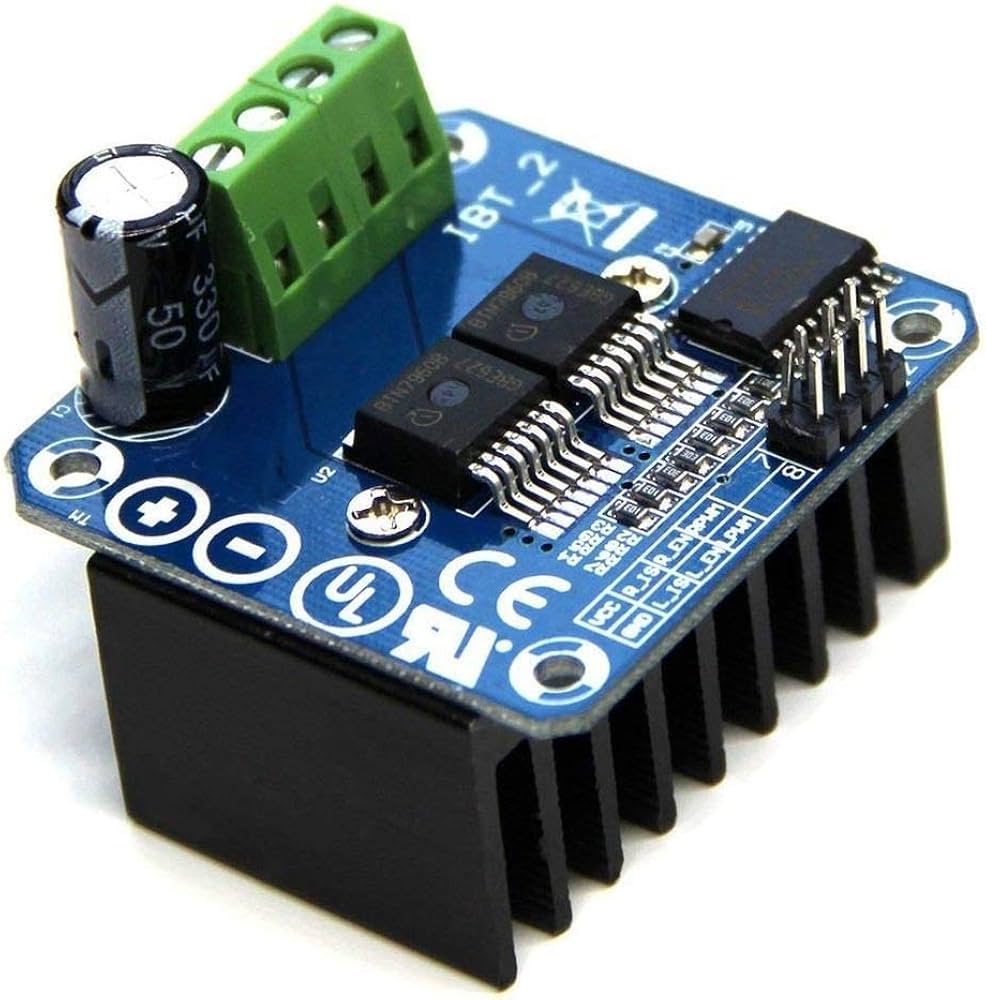

BTS7960 43A H-Bridge Motor Driver is a high-power DC motor driver designed for heavy-load applications. It supports up to 43A current, enables bidirectional motor control, and offers PWM speed control with built-in over-current and thermal protection—ideal for robotics, automation, and electric vehicle projects.
The BTS7960 43A H-Bridge Motor Driver is a powerful and reliable motor control module designed for high-current DC motor applications. Built around the robust BTS7960 chip, this H-Bridge driver delivers up to 43 A continuous current with advanced protection features, making it ideal for robotics, electric vehicles, automation systems, and other heavy-duty motor control projects.
High Current Capacity: Supports up to 43 A continuous current for driving larger DC motors with ease.
Efficient H-Bridge Design: Allows bidirectional control of motors with smooth, reliable switching.
PWM Speed Control: Compatible with PWM signals for precise speed modulation and torque control.
Wide Voltage Range: Works with logic control voltages (3.3 V / 5 V) and motor power supply up to 24 V (or higher depending on motor specs).
Built-In Protection: Includes over-current, over-temperature, and short-circuit protection to safeguard both the driver and connected motors.
Easy Interface: Simple control pins for IN1, IN2, PWM, and enable/disable functions.
LED Status Indicators: Visual indicators for power and motor direction status.
Compact & Durable: Strong PCB design suitable for long-term use in industrial and hobbyist applications.
Whether you’re building robotic platforms, electric go-karts, automated gates, or motorized industrial systems, the BTS7960 motor driver provides stable, high-current performance with reliable protection. Its easy integration with Arduino, Raspberry Pi, and other microcontrollers makes it perfect for both prototyping and production.
Motor Supply Voltage: Up to 24 V (based on motor rating)
Control Logic Voltage: 3.3 V / 5 V compatible
Maximum Output Current: 43 A
Control Interface: PWM / Digital Input
Protections: Over-current, Over-temperature, Short-circuit protection
Dimensions: Compact form factor for convenient installation
DC motor speed and direction control
Robotics and mechatronics projects
Electric vehicles and heavy-load motor systems
Automated doors, lifts, conveyors
DIY electronics and maker applications
