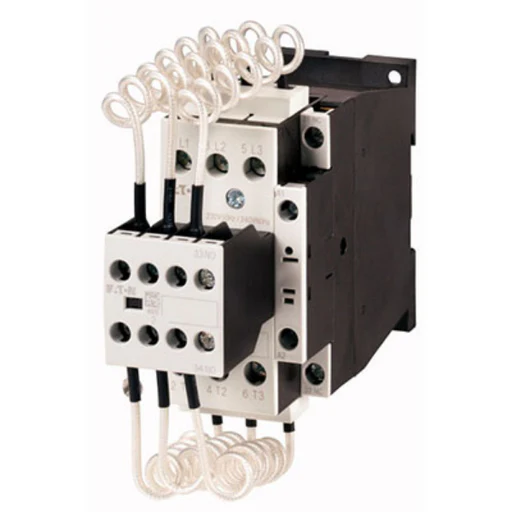

Eaton Moeller DILK Series Capacitor Duty Contactor
Technical Specifications (General)
-
Series: Eaton Moeller DILK
-
Type: Capacitor Duty Contactor
-
Rated Operating Voltage: Typically up to 690V AC
-
Rated Current: Model-dependent (commonly ranges from 12 kVAr to 75+ kVAr)
-
Coil Voltage Options: 24V / 48V / 110V / 230V AC (varies by model)
-
Mounting Type: DIN rail / Panel mount
-
Auxiliary Contacts: Varies by model
The Eaton Moeller DILK Series Capacitor Duty Contactor is specially engineered for switching power factor correction capacitors with high reliability and long operational life. Designed to handle the high inrush currents typical in capacitor switching, the DILK series delivers stable, safe, and efficient performance in industrial and commercial power systems.
Key Features
-
High Inrush Current Handling: Built with pre-charging resistors to limit inrush current and ensure smooth capacitor switching.
-
Optimized for PFC Systems: Ideal for automatic power factor correction panels and capacitor banks.
-
Heavy-Duty Construction: Ensures long-term durability even in demanding electrical environments.
-
Electrical & Mechanical Interlocks: Provides enhanced operational safety.
-
Low Power Loss Coils: Energy-efficient design helps reduce operational costs.
-
Compact Size: Saves panel space with a streamlined, user-friendly design.
Applications
-
Power Factor Correction Panels
-
Industrial Electrical Distribution Systems
-
Commercial Capacitor Banks
-
HVAC Systems
-
Automation & Control Panels
