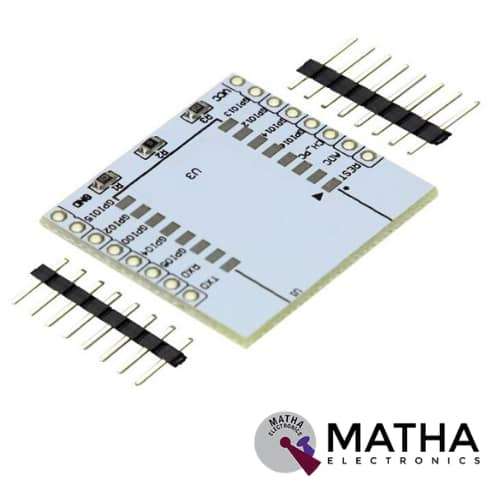

This ESP8266 Serial Wireless WIFI Module Adapter Plate is designed explicitly for ESP-07, ESP-08, ESP-12E ESP8266 SMD ESP8266 Module. These SMD ESP8266 modules come with an unfriendly pin pitch. You may use your favourite ESP8266 SMD modules on breadboards or perforated boards by soldering ESP-07, ESP-08, or ESP-12E modules to this adaptor PCB. The ESP8266 serial wifi adapter plates are used to connect the Wi-Fi module. These modules may be used in a broad range of DIY projects. It also has short-circuit protection, which guarantees that communication between applications is reliable. It is the most frequent and secure method of connecting and detaching different wifi modules. The ESP8266 is a self-contained Serial Wifi Wireless Transceiver Module with a TCP/IP protocol stack built in. Any microcontroller may connect to your WiFi network using it. This Module can either run an application or offload all Wi-Fi networking tasks to a different CPU.
ESP8266 adapter plate works perfectly with the ESP07, ESP08, and ESP12. This adaptor plate is offered since soldering the ESP modules is not always straightforward. The WiFi module is readily attached to the PCB, where it is coupled to headers that clearly identify connecting locations. Meanwhile, a land pattern for a 3.3V regulator can be found on the bottom layer. We must desolder jumper resistor R1 in order to use this 3.3V regulator. To the 9V power input, the VCC pin becomes 4.5V. Hence  It works perfectly ESP-07, ESP-08, and ESP-12.
