-22%

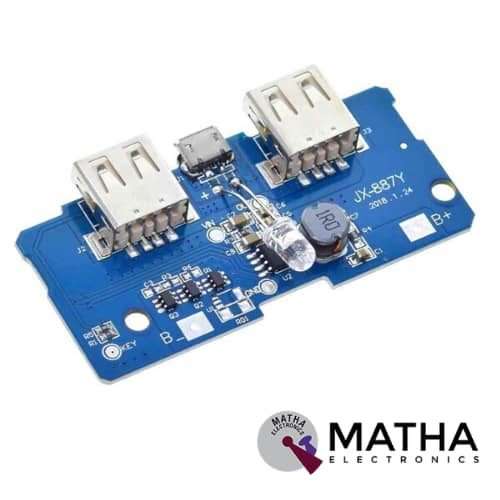

Dual Micro USB 3.7v to 5V 2A Power Bank DIY 18650 LiPo Charger
Original price was: ₹300.00.₹250.00Current price is: ₹250.00. inc. GST

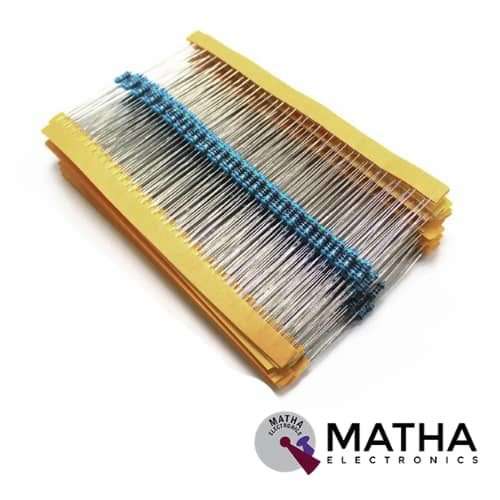

1/4W 5% Assorted Value Carbon Film Resistor Assortment Kit Set pack electronic diy kit
Original price was: ₹50.00.₹40.00Current price is: ₹40.00. inc. GST
GSM Antenna Dlenp 2dbi/3dbi Patch Antenna with SMA Male Connector
Original price was: ₹450.00.₹350.00Current price is: ₹350.00. inc. GST
- GSM Antenna
- Gain: 2 to 3dbi
- Wire Length: 3 metre
- 3dbi Sticker Antenna
- GSM Antenna
- SMA Male Connector
- Frequency Range(MHz): 824-960/1710-1990Mhz
- Bandwidth (MHz): 136/280
- VSWR≤1.5
- Gain(dB): 2-3dbi
- Max Input power(W): 60W
- Input Impedance: 50 Ω
- Polarization Type: Vertical
- Cable Type: RG174
- Mounting Adhesive
- Net weight: 47g
Description
This Dlenp 2dbi/3dbi Patch Antenna for GSM Aerial RG174 is developed specifically for RP-SMA Male Connector. As a Sticker Type GSM Antenna, this antenna is created. The antenna’s gain varies from 2 to 3 dBi. This antenna also has a 3M sticker on the back. As a result, it’s much simpler to stick to any surface. For GSM Aerial, this GSM antenna comes with a 3m cord. This makes it excellent for usage outside and in the open air. Furthermore, it is finished with a high-quality SMA Male Connector. Because the antenna body is plastic-moulded, there is no risk of non-signals entering your circuit. The antenna’s construction is tiny in size and extremely dependable, making it simple to install. Commonly used in GSM repeater, GSM sensor, GSM module & GSM modems and is compatible with SIM900A and SIM808.SUPPORTING FREQUENCY RANGE
- 800MHz
- 900MHz
- 1800MHz
- 1900MHz
Reviews (0)
Shipping & Delivery
Related products
5-36v Switch Drive High-power MOSFET Trigger Module
- Operating Voltage: DC 5V - 36V;
- The trigger source: digital high-low (DC3.3V - 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal frequency 0--20KHZ perfect support.
- Output capacity: DC 5V - 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary cooling conditions, the maximum current up to 30A.
- Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, etc.. You can enter
- PWM, motor speed control, lamp brightness.
- Availability: unlimited switch
- Operating temperature: -40-85
- Dimension: 34mm x 17mm x 12mm
- The use of imported dual-MOS parallel active output, lower resistance, more current, strong power at room temperature, 15A, 400W, to meet the most use of the equipment
- Wide voltage, the perfect support for PWM
- Easily control high power devices
- Input PWM to achieve motor speed control, lamp brightness control
650NM Laser Diode
- Wavelength: 650nm
- Output optical power: 5mW
- Operating voltage: 5V
- Operating current: ~30mA
- Input current: 30mA
- Housing material: Copper
- Power lead length: 120mm.
- Transmit power: 58mW
- Spot: size 10mm to 15mm at 15meters
- Life span more than 2000 hours
- Driver circuit: APC circuit
- Small size
- Cost-effective
- Breadboard friendly
- Operating temperature -10°C to 40°C
- Dimension: :15mm x 6mm
- Weight: 10 grams
Solid State Relay Module DC To AC SSR-40DA 3-32VDC/24-380VAC 40A
- Control mode: DC-AC
- Input voltage: 3-32V DC.
- Output voltage: 24-380V AC.
- Output current: 40A.
- Working voltage: 250V.
- Material: plastic + metal.
- Loading current: 40A
- Control current: 3-25mA DC
- On voltage: ≤1.5V AC
- One-off Time: ≤10ms
- Off Leakage Current: ≤2mA
- Dielectrics voltage-resistance: 2500VAC
- Environment temperature: -30 to +75
- Long service life and high reliability.
- Reduced electromagnetic interference.
- Highly reliable, compact size designed to offer users maximum simplicity.
