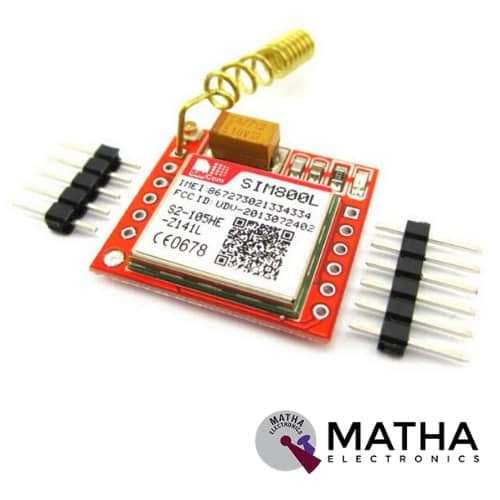

SIM800L GPRS GSM Module
Original price was: ₹700.00.₹450.00Current price is: ₹450.00. inc. GST
Hi-link HLK-5M12 100-240 VAC to 5 VDC/5W Power Supply Module
Original price was: ₹625.00.₹475.00Current price is: ₹475.00. inc. GST
Hi-link HLK-5M03 100-240 VAC to 5 VDC/3W Power Supply Module
Original price was: ₹500.00.₹425.00Current price is: ₹425.00. inc. GST
- Meet UL, CE requirements,
- Ultra-thin, ultra-small
- Rated input voltage 100-240 VAc
- Input voltage range 90-264 VAc
- Maximum input current: 0.2 A
- Input current surge: 10 A
- Maximum Input voltage: 270 VAc
- Enter slow start:50 mS
- Input Low Voltage Efficiency Vin=110VAc,Output full-load?69 %
- Input High Voltage Efficiency Vin=220VAc,output full-load?70 %
- Long-term reliability: MTBF 100000h
- Load rated output voltage: +5±0.1
- Full rated output voltage: 5±0.2 VDc
- Short-term maximum output current: 1000mA
- The maximum output current for a long time: 600mA
- Voltage Regulation ±0.2 %
- Load Regulation ±0.5 %
- Low ripple and low noise
- Output overload and short circuit protection
- High efficiency, high power density
- Product designed to meet the requirements of EMC and Safety Test
- Low power consumption, environmental protection, no-load loss <0.1W
Description
HLK-5M01 5V/3W Switch Power Supply Module designed as an ultra-compact plastic enclosed PCB mounted device. This module is an isolated switching step-down power supply module with a  supply voltage of 5V DC from 120V AC – 230V AC. It offers a power rating of 3 Watt makes it ideal for small projects that need a 5 volt supply from mains. This power supply module particularly replaces lots of parts from the traditional power supply like diodes, voltage regulators, and transformers. This Power Supply Module offers numerous advantages such as low-temperature rise, low power, high efficiency, high reliability, high-security isolation, etc.
HLK-5M01 5V/3W voltage source acts as a switching source. So there is no tension about any fluctuations in the voltage grid. These plastic encapsulated power supply modules mounted on the PCB. And is the ideal solution to power pads that you take. This module offers a wide range of applications in the field of smart home, automation and control, communication equipment, instrumentation.
Reviews (0)
Shipping & Delivery
Related products
3V To 5V 1A USB Charger Step Up Boost Module
- Module properties: Non-isolated step-up module (BOOST).
- Input voltage: 2.5-6V.
- Output voltage: 4-12 V (Adjustable (need to replacing the resistance to adjustable), the default 5 v).
- Output current: 1000mA (Max).
- Efficiency: 92% (Max) (the higher the input voltage, the higher the efficiency).
- Switching frequency: 1MHz.
- Output ripple: 20mV (MAX).
- Operating temperature: Industrial (-40°c to +85°c).
- Voltage regulation: ±2.5%.
- Short circuit protection: None
- Input: IN + postive, IN - negative.
- Output: USB output.
- Dimension: 3 x 1.3 x 0.8cm.
DC –DC 600W 10-60V TO 12-80V BOOST CONVERTOR STEP UP MODULE POWER
- Input voltage: 12v-60v
- Output voltage: 12v-80v (adjustable)
- Input current: maximum input current 15A
- Output current: maximum output current 10A
- Output power: effective power input voltage*10A
- 600-watt high power booster module
- Operating frequency: 15KHz
- Overcurrent protection
- Minimum voltage difference: 2v
- Ultra-low dropout voltage
- Conversion efficiency: 95%
- Short circuit protection
- dimension:76*60*56mm
- weight: 250 gm
Dc 4.5V-40V to 5V 2A USB Charger DC-DC Step-Down Buck Converter Voltmeter
- Input voltage: DC 4.5 ~ 40V.
- Output voltage: 5V (when the input voltage is between 6.5V ~ 40V).
- Output current: 2A.
- The voltmeter has an automatic calibration function.
- With reverse connection protection.
- With overheat protection and short circuit protection.
- The voltmeter has an automatic calibration function.
- With reverse connection protection.
- With overheat protection and short circuit protection.
- High efficiency and low ripple.
- With USB power indicator light.
DC-DC BOOST CONVERTER STEP UP I/P: 10V – 32V O/P: 12V -35V/6A
- Input voltage: 10V-32V DC
- Output voltage: 12V-35V DC
- Output Current: 6A
- Output ripple: 2% MAX
- Output power: 150 W
- Working temperature: -40 degree to 85 degree
- No load current:25mA
- Voltage regulation:+-0.5%
- Load regulation:+-0.5%
- Dynamic response speed: 200uS 5%
- The non-isolated step-up power conversion module
- Onboard LED illuminates when the voltage is applied to the module
- Equips Multi-turn Potentiometer.
- Easy to drive 65W 90W dual-core notebook.
- The output voltage is continuously adjustable on OUT+ and OUT- screw terminals
- Dimension:2 .60*1.85*1.1inch
LM 2576HV Buck Module
- Module Properties: non-isolated constant voltage module
- Rectification: non-synchronous rectification
- Input voltage: 4.5V-60V
- Output Voltage(Less than input): 1.3V-26V
- Continuous operating current: 1.2A (output total power within 20W)
- Output current: 3A maximum
- Conversion efficiency: 92% (maximum)
- Switching frequency: 52KHz
- Output ripple: 50mV (maximum) 20M-bandwidth
- Load regulation: ± 0.5%
- Voltage regulation: ± 2.5%
- Operating temperature: -40 ℃ to +85 ℃
- Size: 43 * 30 * 14 mm
LM2596 2A Buck Step-down Power Converter Module DC 4 ~ 40 to 1.3-37V LED Voltmeter
- Input Voltage: 4 - 40V DC
- Output Voltage: 1.3 - 37V DC
- Output Current: 2A Rated, (3A maximum with heat sink).
- Switching Frequency: 150 kHz.
- Input reverse polarity protection.
- Built-in output short protection function.
- Voltmeter Resolution: ±0.1V
- Voltmeter Digital Display Range: 0v-45v
- High precision multi-turn potentiometer to set to the desired value
- Led Digital Voltmeter Tube, The Accuracy Is Adjustable Function, Can Be Aimed At Your Multimeter Adjustable Accurate.
- Press the key "S1" to let the display show the input or output voltage. when the green led light, it shows output, the red shows the input.
- Size :65*35mm
QC3.0 QC2.0 USB DC-DC Buck Converter Charging Step Down Module Fast Quick Charger Circuit Board
- Input voltage: 6V-32V.
- Output voltage: default 5V, automatically adjust between 3-12V after triggering fast charge.
- Output power: up to 24W (5V/3.4A, 9V/2.5A, 12V/2A, etc.).
- Output voltage cable compensation function.
- Conversion efficiency: 90%-97%.
- Support multiple fast-charging protocols.
- Input overvoltage and under-voltage protection.
- Input overcurrent protection.
- Output overcurrent, short circuit protection.
- Machine over temperature protection.
- Support fast charge agreement
- Support DCP protocol, BC1.2.
- Support Huawei Fast Charge Protocol FCP/SCP.
- Support Huawei Fast Charge Protocol AFC.
- Support Spreadtrum Fast Charge Protocol SFCP.
- Support QC2.0 and 3.0.
- Support MTK PE1.1/PE2.0
XL4015 5A STEP DOWN WITH DISPLAY
- Module nature: non-isolated buck module ( BUCK )
- Input voltage: 4-38V
- Output voltage: 1.25-36V
- Output current: 0-5A, it is recommended to use within 4.5A
- 14 Digital I/O Pins
- Output power: It is recommended to use within 75W, please add a heat sink if it exceeds 50W
- Working temperature: -40 degree to + 85 degrees
- Working frequency: 180KHz
- Conversion efficiency: up to 96% Load adjustment rate: S ( I ) ≤ 0.8%
- Voltage adjustment rate: S ( u ) ≤ 0.8%
- LED to indicate power status
- Short circuit protection
- Over-temperature protection
- Dimension: 54mm * 23mm wide *18mm
