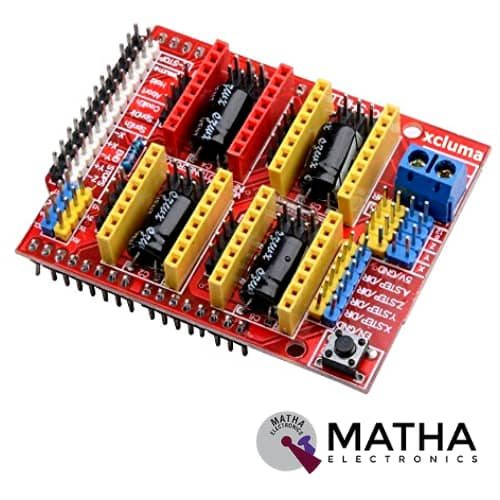

Arduino CNC Shield v3 Engraving Machine/3D Printer/A4988 driver GRBL compatible
Original price was: ₹500.00.₹400.00Current price is: ₹400.00.
MEPUNO COMMUNICATION BOARD
Original price was: ₹2,300.00.₹2,100.00Current price is: ₹2,100.00. inc. GST
MEPUNO ROBOT CONTROLLER BOARD
Original price was: ₹1,550.00.₹1,500.00Current price is: ₹1,500.00. inc. GST
- Microcontroller ATMEGA328 P.
- Crystal for the microcontroller: 16 MHZ
- USB type B connector
- 5volt, 12 volts regulated circuit.
- Two separate regulated 5volt power supplies.
- On-Board On/Off switch.
- OnBoard DC jack for powering up using adaptors.
- On-Board Reset Switch.
- Onboard L293D dual DC motor driver.
- Onboard TSOP IR receiver.
- On Board 3 user LEDs (with jumper selection), TX/RX indication LEDs.
- On-board connectors for analogue interfacing.
- On Board Buzzer Interface.
- Â On-Board PWM Interfacing.
- On board FTDI Driver for adruino.
- Â Berg headers for external interfacing.
- Supports I2C /3 WIRE /RF/USART serial communication standards.
Out of stock
Description
MEP_UNO ROBOT development board is designed as s a powerful development platform based on an Atmega 328P microcontroller with a flash memory of 32Kb. The MEP_UNO ROBOT board is ideal for robotic applications and the board can be interfaced easily makes it ideal for wide applications. This controller board is powered via a DC jack/ USB. The Arduino programs can be burned to the development board using USB. At a time, four analogue sensors can be directly interfaced with the board. This board features separate berg headers provided for interfacing TSOP, 2 DC Motor, and PIR. MEP_ROBO supports I2C, three-wire, and USART serial communication. Also, this controller board supports direct interfacing of PWM to the board.
Reviews (0)
Shipping & Delivery
Related products
16 CHANNEL 12V RELAY
- 16 channel 12V relay board
- Operating voltage: 12V
- Supply current: 0.2 A
- Relay contact current capacity of 10A @250 V AC/10A@ 30V AC
- Optocoupler protection
- LED status indicates relay ON/OFF state.
- The 10-16 road can be any full-on/off or any road
- Common terminal(com) in each rely is user friendly and can be accessed by different signal
- Normally closed or normally open with each port
- Strong anti-jamming ability and stable performance
- The on-board power supply module doesn’t need any external power
- Dimension: 180*90*20mm
- Weight: 100gm
3.3V/5V MB102 Breadboard Power Supply Module
- Input voltage: 6.5V to 12V
- Output voltage: 3.3V to 5V
- Output current: 700Ma
- Apply to MB102 breadboard
- Sorting jumpers used to switch voltage between 3.3V and 5V
- Onboard LED indicator to show the presence of power
- Short circuit protection
- Fits securely on standard 400 and 830 points on the breadboard
- Dimensions: 53*32*23mm
- Weight: 10gm
4 CHANNEL 5V RELAY
- 4-Channel relay interface board
- Operating voltage range: 3.3V to5V
- Maximum current: 10A
- Supply current: 20 mA
- High current relay of 10A @250 V AC/10A@ 30V DC
- Control signal: TTL level
- For quick and easy connection high-quality screw terminals provided
- Pull-down circuit to avoid malfunction
- Power supply indicator
- Can control both AC & DC appliances such as DC motors, solenoid valves, lamps, etc.
- LED status indicates relay ON/OFF state.
- Standard interface that can be controlled by a microcontroller (Arduino, 8051, PIC, AVR, DSP, ARM)
- For easy accessibility input signal pin connected to burg sticks
- Operating temperature: -40 to 85 degrees Celsius
- Dimension: 76*56*17mm
- Weight: 7gm
AC-DC Power Module HLK-5M05 230V to 5V /5W
- Meet UL, CE requirements
- Rated input voltage: AC 100V -230V
- Input voltage range: 90V -264V AC
- Maximum input current: <0.2A
- Input current surge: <10A
- Maximum input voltage: <270V AC
- Input Low Voltage Efficiency: Vin=110V AC，Output full-load≥ 69%
- Input High Voltage Efficiency: Vin=220V AC，output full-load≥ 70 %
- Long-term reliability
- Voltage Regulation: ±0.2%
- Load Regulation: ±0.5%
- Ultra-thin and small module
- High efficiency, high power density
- Low ripple and low noise
- Output overload and short circuit protection
- Working temperature: – 20 degrees to +60 degrees Celsius
- Storage temperature: -40 degrees to 80 degrees Celsius
- Relative humidity: 5-95%
- Cooling way: Natural cooling
- Atmospheric pressure: 80-106Kpa
- Weight: 21g
- Size: 38x23x18mm
AC-DC Power Module HLK-PM03 230V to 3.3V /3W
- Meet UL, CE requirements
- Rated input voltage: AC 100V -230V
- Input voltage range: 90V -264V AC
- Maximum input current: <0.2A
- Input current surge: <10A
- Maximum input voltage: <270V AC
- Input Low Voltage Efficiency Vin=110V AC，Output full-load≥ 69%
- Input High Voltage Efficiency Vin=220V AC，output full-load≥ 70 %
- Long-term reliability
- Voltage Regulation: ±0.2%
- Load Regulation: ±0.5%
- Ultra-thin and small module
- High efficiency, high power density
- Low ripple and low noise
- Output overload and short circuit protection
- Working temperature: – 20 degrees to +60 degrees Celsius
- Storage temperature: -40 degrees to 80 degrees Celsius
- Relative humidity: 5-95%
- Cooling way: Natural cooling
- Atmospheric pressure: 80-106Kpa
- Weight: 21g
- Size: 38x23x18mm
CURRENT SENSOR ACS712 30AMPS
- Current sensor chip: ACS712ELC-30A
- Supply voltage: 4.5V to 5.5V DC
- Current range: -30A to 30A
- Sensitivity: 66 millivolt/ampere
- Low noise analogue signal path
- Output rise time: 5 micro sec
- Extremely stable output offset voltage
- Zero magnetic hysteresis
- Factory trimmed for accuracy
- Easy to interface with a microcontroller, since it outputs an analogue voltage
- Onboard power indicator
- Dimension: 7*5*5cm
- Weight: 400gm
ISD1760 MODULE (75 sec)
- On-board ISD1760 chip
- Operating voltage: 5v
- 75 sec of audio playback
- Onboard microphone for direct recording
- Frequency: 6KHz or 8KHz
- Recording time: 6K/75 sec, 8K/60 sec
- Output all pin for chip control
- Easy interface with microcontrollers using 2.54mm spaced male pin headers
- High-quality natural voice reduction
- LED status indication
- Long recording time and multiple messages
- Simple operation and better voice quality
- Control not only by buttons but also by SPI from a microcontroller
- Recording, erase, play, FT, fast forward, reset volume buttons
- Dimension: 49*41.5mm
- Weight: 22gm
ISD1820 MODULE (10 SEC)
- Operating voltage: 2.6v to 5v
- Record and playback up to 10 sec
- Push-button and microcontroller controllable AGC circuit added tom increase audio playback volume
- Recording time: 8- 20 sec
- Built-in microphone
- On-chip 8-ohm speaker driver
- High quality, natural voice restored
- Available single-chip control audio recording control mode: the key to control or microcontroller, IO has drawn the line of control
- Can be used as propaganda module
- Auto power down mode
- Duration and sample rate can be extended to 20 sec by varying resistance
- Dimension: 43*34*11mm
