Planetary Gear DC Motor with Encoder 12V 285 RPM 1.2 N-m Torque - TPG28395126000-21KE ₹4,500.00 ₹3,500.00 inc. GST
Back to products
Next product

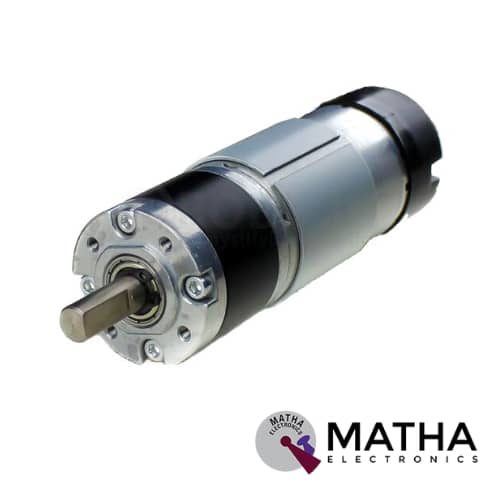

Planetary Gear DC Motor with Encoder 12V 11 RPM 10 N-m Torque - TPG36555123000-264KE ₹4,500.00 ₹3,500.00 inc. GST

Planetary Gear DC Motor with Encoder 12V 500 RPM 0.5 N-m Torque – TPG28395126000-12KE

₹4,500.00 ₹3,500.00 inc. GST

  • Model: TPG28M395-12K.
  • Motor Type: DC Carbon Brush Motor.
  • Gear Ratio: 12: 1.
  • Operating Voltage: 12.V DC
  • Rated Current: 0.750.A
  • Rated Base Motor: RPM
  • Rated Speed: 500 RPM
  • Rated Torque: 5 N-m
  • Operating Temperature: -40 °C ~ +100°C.
  • Relative Humidity: 20% ~ 85% RH
  • Gear Material: Powder Metallurgy, Steel, POM.
  • Housing Material: Metal.
  • Motor Body Size (Diameter): 28.mm
  • Motor Length: 8.8mm
  • Shaft Diameter: 6mm
  • Shaft Length: 13mm
  • Shaft Type: D-type.
  • Motor Weight: 230. gm
  • Brushed permanent magnet DC motor.
  • Variable speed and reversible.
  • Planetary Gear Box.
  • Standard brush life of 2000+hours

Out of stock

Notify me

Compare
Add to wishlist
Categories: Motors & Controllers, Planetary Gear Motors, Slide 4 Tags: Geared Motor, HD Planetary DC gear motor, Planetary DC Geared Motor, Planetary Gear DC Motor with Encoder 12V 500 RPM 0.5 N-m, Planetary Gear DC Motors, TPG28395126000-12KE
Share
  • Description
  • Reviews (0)
  • Shipping & Delivery
Description

A planetary gear motor similar to a planetary rotation system in which the input shaft drives the central gear, also known as the sun gear, which then turns the surrounding gears, also known as planet gears. Planetary gears widely used when space and weight are an issue, but a large amount of speed reduction and torque are needed. Planetary Gear DC Motor offers the highest continuous and peak torque capability of any gearbox type. They also feature a smaller size, with a light-weight design in their Class. This motor designed explicitly for robotics applications with an ideal balance of quality, performance, and price. This 12V Planetary Gear DC Motor with Encoder provides a gearbox of 28mm diameter. And also the motor provides a 12: 1 reduction ratio which produces 500 RPM with a torque value of around 0.5 N-m.

The planetary geared motor well known for its low backlash and higher efficiency characteristic to meet your higher expectation. Planetary Gear DC Motor with Encoder 12V 500 RPM 0.5N-m Torque – TPG28395126000-12KE imported from an established Taiwanese motor manufacturing company well known for its quality and durability. These Epicyclic Gear Train motors very prominent amongst our Robotics designer and for general-purpose automation projects. This single-channel output encoder feedback to provide you real-time feedback of rotating position. This is also a perfect choice for medical applications where strong, coordinated, accurate motion control is required. These planetary gears share the load attached to the output shaft giving the planetary arrangement a higher torque to volume ratio with low backlash compared to a spur gear arrangement.

Typical Applications:

  • Printers
  • Plotters
  • Pumps
  • Fans
  • Cutting Tools
  • Medical Devices
  • Robotics
  • Beverage Dispensing
  • Gaming/Recreational Machines
